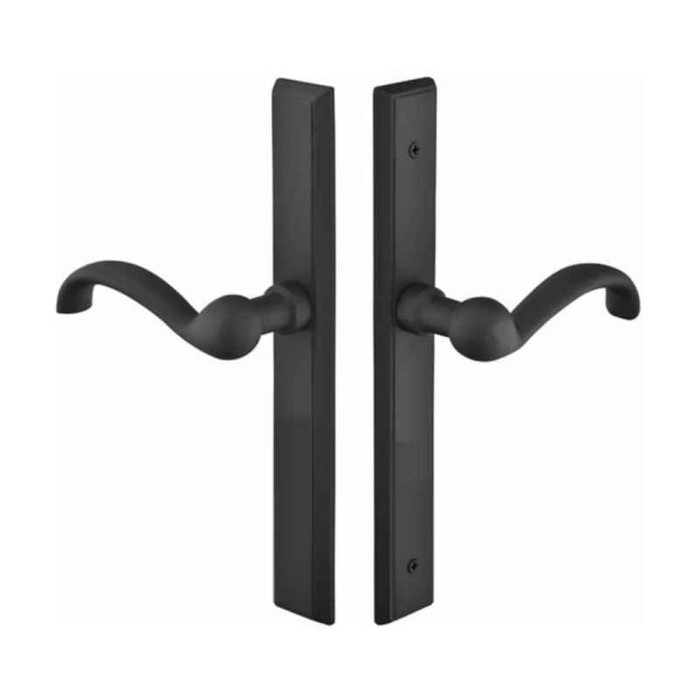

Emtek 1555 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair

No. The 1555 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the lock case that suits the door already in place, or order one alongside. This set is the dummy pair configuration, meaning both sides are fixed pulls with no operating latch behind them.

Dummy trim is for the inactive leaf of a pair of swinging patio doors, or for a door that never needs to latch or lock. There is no keyway and no electronics in the 1555, it is a fixed pull on each face. If the leaf has to lock, you want a keyed or active multi point trim instead, not this one.

Yes, the 1555 covers 1-3/8 inch through 1-3/4 inch doors, which spans the common older interior thickness and the standard modern door. It is surface mounted with no door prep required, so on a dummy application you are screwing plates to the faces rather than boring the door.

Configuration #5 describes where the cylinder sits relative to the handle and what the plate has to accommodate: on the 1555 the cylinder position is below the handle, with a Euro profile cylinder classification and 3-5/8 inch center to center between handle and cylinder. Measure the existing plate on your door, handle center to cylinder center, and confirm 3-5/8 inches before ordering, because config number is what decides whether the plate lines up with the lock case.

Handing is required at order, right hand or left hand. Even on a dummy set the lever throw and plate orientation are handed, so a left hand set on a right hand leaf puts the lever pointing the wrong way. Stand outside the door and note which side the hinges are on before you pick.

Three decisions. Finish, in Flat Black Bronze (FB), Medium Bronze (MB) or Tumbled White Bronze (TWB). Lever style, required, from ten Sandcast Bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. And handing. Door thickness can also be entered so the set is built for your leaf within the 1-3/8 to 1-3/4 inch range.

Each plate measures 1-1/2 x 11 inches in a rectangular profile. That is a narrow plate, so on a patio door stile it sits within the rail without crowding the glass, but if you are replacing an older trim set with a wider or taller escutcheon the previous screw holes and any surface scarring may show around the edges.

The 1555 is a residential product in Emtek's Sandcast Bronze collection, solid bronze substrate. It suits high end homes and residential patio doors. For a commercial entry with heavy daily traffic, look at commercial rated door hardware instead, since this line is not built or classified for that duty.

No. The 1555 is a dummy pair with no keyway, so there is nowhere to fit a cylinder even though the plate is laid out for a Euro profile below the handle. On a pair of doors, the usual arrangement is a keyed active trim on the operating leaf and this dummy pair on the fixed leaf so both sides look identical.

Sandcast bronze is a living finish, cast and hand finished, so pieces vary slightly by batch. The 1555 comes in Flat Black Bronze, Medium Bronze and Tumbled White Bronze, the same three finish names Emtek uses across the Sandcast Bronze collection, so specifying the identical code across your entry sets is the way to keep a run of doors consistent.
