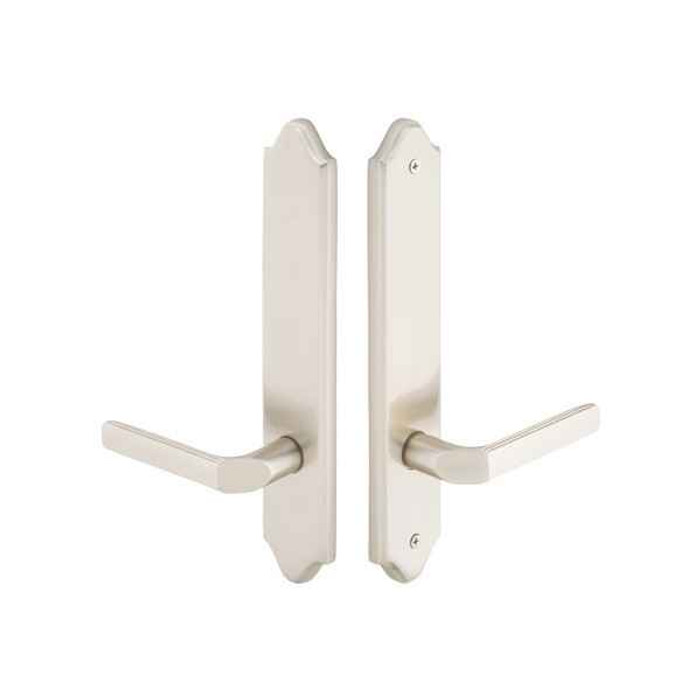

Emtek Emtek 1284 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1284

Emtek 1284 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1284-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1284 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1284
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1284-US15 – Frequently Asked Questions

1) Does the Emtek 1284 multi point trim include the mortise lock body?
No. The Emtek 1284 is trim only: plates and handles. The multi point mortise lock box has to come from elsewhere, usually the door manufacturer's own gear, so you need to confirm the existing lock body in the door before ordering the trim.
2) What does Door Configuration #2 mean on an Emtek multi point trim?
Configuration #2 on the 1284 is the semi-active (inactive) leaf of a pair of swinging patio doors: a fixed, non-keyed handle on the exterior and an operating lever inside that retracts the multi point lock. No cylinder, no key from outside. The active leaf takes a keyed configuration instead.
3) Will the Emtek 1284 fit my existing multi point patio door prep?
The Concord plates measure 2 by 10-1/2 inches with 3-5/8 inch center-to-center spacing between the handle and the cylinder hole position, and the cylinder location is above the handle. Emtek lists this trim against BiltBest, G-U, Hurd (Energy Saver) and Andersen multi point doors. Measure your existing plate's center-to-center; if it isn't 3-5/8 inches, a different Emtek configuration is needed.
4) Do I have to specify handing and door thickness when ordering the 1284?
Handing is required, right hand or left hand, because the inside operating lever and outside fixed handle are oriented to the leaf. Door thickness is an optional entry field, worth filling in since patio door leaves vary and the spindle has to reach. Lever style is also a required choice.
5) Which levers can I put on the Emtek 1284 Concord trim?
Any Emtek brass lever works with it, and the choice is wide: the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast levers like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Cortina, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. Pick the same lever used on your interior doors and the patio opening matches the rest of the house.
6) Do Emtek multi point levers sag over time?
The 1284 trim ships with Emtek's Spring Assist, which returns the lever to horizontal and is there specifically to stop the droop you get on older multi point handles. That matters on a patio door that gets pulled on daily.
7) Does the 1284 take an American cylinder, and do I need one?
Cylinder classification on the Concord multi point trims is American, positioned above the handle, but the 1284 itself is the non-keyed configuration, so no cylinder goes in this plate. If you need key access from outside on that leaf, order a keyed Emtek multi point configuration rather than this one.
8) What finishes does the Emtek 1284 Concord multi point trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Unlacquered brass will patina naturally, so choose it only if you want the living finish; the others hold their appearance.
9) Is the Emtek 1284 suitable for a commercial entrance?
It's a residential-rated product, brass construction, intended for swinging patio doors in homes. For a commercial entry with heavy traffic or code-driven hardware requirements, spec a commercial mortise or exit device instead.
