Emtek 1384 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

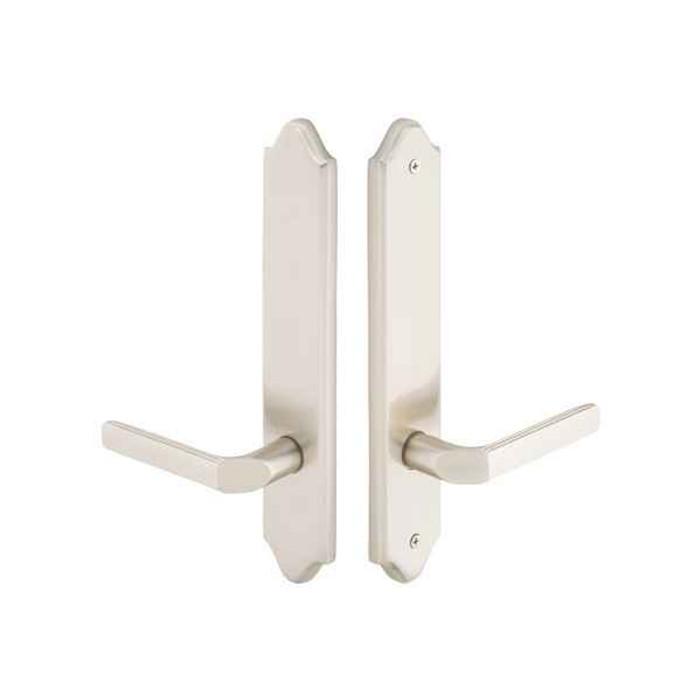

Emtek Emtek 1384 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1384

Emtek 1384 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1384-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1384 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1384
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1384-US15 – Frequently Asked Questions

1) Does the Emtek 1384 multi point trim include the multi point mortise lock body?
No. The Emtek 1384 is trim only: you get the two 2 x 10-1/2 inch Concord plates and the handles. The multi point mortise lock box has to be ordered separately, along with the levers you want and, on the semi-active leaf, nothing else is keyed since this configuration is non-keyed.
2) What does Door Configuration #3 mean on an Emtek multi point trim?
Configuration #3 is the semi-active leaf of a French or patio door pair: a fixed (dummy) handle on the exterior and a working lever on the interior, with no cylinder. It's the leaf you operate from inside only. If you need a keyed exterior handle that unlocks from outside, that's a different Emtek configuration, not the 1384.
3) What handle center-to-center does the Emtek 1384 trim need to match?
The handle-to-cylinder-hole center-to-center is 4-1/8 inches, with the cylinder position above the handle. Your multi point lock body has to share that 4-1/8 inch spacing or the plate holes won't line up, even though this particular trim is non-keyed and has no cylinder in it.
4) Will Emtek 1384 trim work on an Andersen patio door?
Andersen is the reference door manufacturer for this trim, so it is dimensioned for Andersen multi point hinged patio doors. Match the 4-1/8 inch center-to-center on your existing lock body before ordering, and specify your door thickness since that is a required build detail.
5) Do I have to specify handing for Emtek multi point lock trim?
Yes, handing is required: right hand or left hand. On a French door pair the semi-active leaf is the one that stays shut most of the time, so determine which leaf gets the 1384 first, then hand it. Lever style and door thickness are the other two things you specify on the order.
6) What finishes does the Emtek 1384 Concord trim come in?
Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Plates and levers are solid brass, so the Unlacquered Brass option will patina over time rather than hold a coated look.
7) Can I pick any Emtek lever with the 1384 trim?
Any Emtek brass lever can be paired with it, and the lever choice is required at order time. The list runs from the L-Square, T-Bar and R-Bar stems in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to the classic Cortina, Milano, Merrimack, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered levers.
8) If the other leaf of my French door needs a key, what cylinder type does the Emtek Concord trim use?
Emtek multi point trim in this family takes an American-style cylinder, positioned above the handle. The 1384 itself is the non-keyed semi-active trim, so plan the keyed cylinder for the active leaf trim and keep both leaves in the same finish and Concord plate style so the pair matches.
9) Will the inside lever sag over time on this Emtek patio door trim?
No. Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older patio door sets. Worth knowing if you're replacing a sagging lever on an existing multi point door.
10) Is the Emtek 1384 trim rated for commercial door traffic?
It's a residential product, built for swinging patio and French doors in homes. For a high-traffic commercial entrance a property manager should be looking at a Grade 1 commercial lockset instead, not residential patio door trim.
