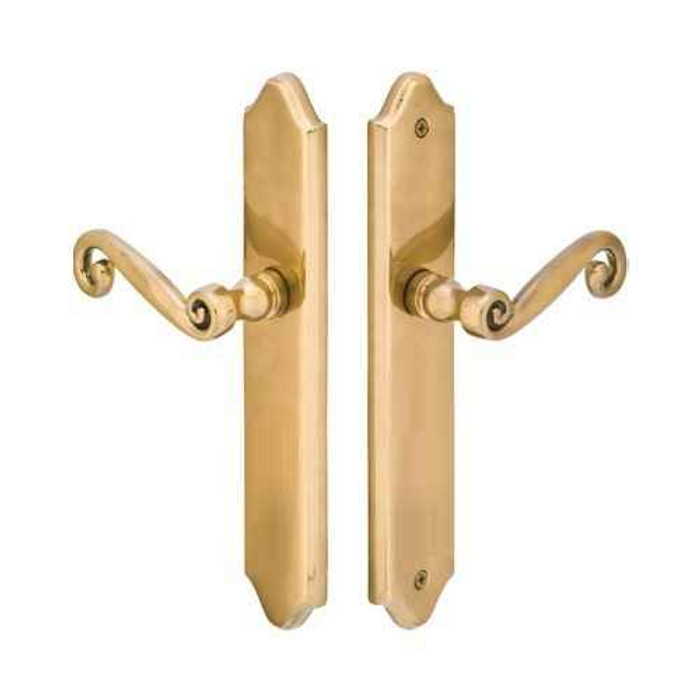

Emtek Emtek 1584 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1584

Emtek 1584 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1584-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10.5"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1584 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1584
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
Euro Profile
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1584-US15 – Frequently Asked Questions

1) What is Door Configuration #5 on an Emtek multi point trim, and which door does it go on?
Configuration #5 is the non-keyed setup: a fixed handle on the outside that does not operate, and an operating lever on the inside. That is the arrangement used on the semi-active (inactive) leaf of a pair of swinging patio doors, where the outside handle is a pull and all operation happens from inside.
2) Will the Emtek 1584 line up with my existing multi point lock's handle and cylinder spacing?
It is built to 3-5/8 inch center-to-center between the handle spindle and the cylinder hole, with the cylinder positioned below the handle and prepped for a Euro profile cylinder. Measure your existing gearbox faceplate: if the spacing is 3-5/8 inches with the cylinder low, this trim drops onto it.
3) Which patio door brands does the Emtek 1584 trim fit?
Emtek lists this multi point trim against Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield door systems. Confirm your gearbox runs 3-5/8 inch center-to-center with the cylinder below the handle before you order.
4) Do I have to specify handing on the Emtek 1584?
Yes, handing is required. You pick right hand or left hand at the time of order, so determine the swing of the semi-active leaf before ordering. Door thickness is also collected, so have that measurement ready for the spindle length.
5) What finishes does the Emtek 1584 Concord multi point trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). Unlacquered brass is the one that will patina over time; the rest hold their appearance.
6) Can I choose my own lever style on the Emtek 1584 Concord trim?
Yes. The Concord plate pairs with any Emtek brass lever, and the selection is required at order. Choices run from the modern L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional patterns like Cortina, Milano, Merrimack, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered.
7) How big is the Concord plate on the Emtek 1584, and will it fit a narrow patio door stile?
The Concord plate measures 2 by 10-1/2 inches. You need at least 2 inches of flat stile face, plus clearance for any glass stop or panel molding, for the plate to sit flush.
8) Do I need a key cylinder for the Emtek 1584?
No. The 1584 is the non-keyed version, with a fixed outside handle and no key function, which is normal for the semi-active leaf. If you want a keyed exterior on that leaf, you need a keyed configuration instead.
9) Why do multi point lever handles sag, and does the Emtek 1584 address it?
Lever sag comes from the weight of the lever overrunning the gearbox spring over time. Every Emtek multi point trim now ships with a Spring Assist that returns the lever to neutral and keeps the handle from drooping.
10) Is the Emtek 1584 trim solid brass, and is it meant for commercial openings?
Plates and handles are brass, from Emtek's Brass collection, and the product is classed residential. It is swinging patio door hardware for homes rather than a commercial-grade opening.
11) Is the Emtek 1584 an electronic or smart lock trim?
No, it is fully mechanical. There is no electronic component, no wiring and no power requirement, so nothing needs to be run to the door.
