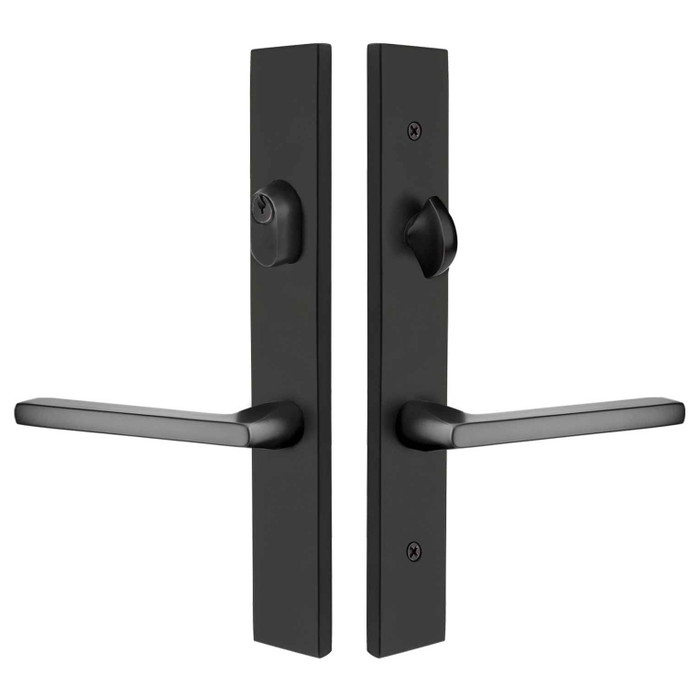

Emtek 12A1 Modern Multi Point Lock Trim, Door Configuration #2, Brass Plates, Keyed with American Cylinder Above Handle
The Emtek 12A1 is a trim-only multipoint lock set for Door Configuration #2 multi-point doors. It ships with interior and exterior brass backplates, your choice of lever, and an American cylinder in Schlage or Weiser WR5 keyway. Plates and body are brass.
Door Manufacturer Compatibility: Fits BiltBest, G-U, Hurd (Energy Saver), and Andersen multi-point door preps using Door Configuration #2.
Key Specifications
- Trim Size: 1-1/2" W x 11" H
- Cylinder Hub Location: Above Handle
- Center-to-Center (CTC): 3-5/8"
- Door Configuration: #2
- Material: Brass
Cylinder and Keyway Options
- Schlage Keyway (Standard) - SKU prefix: 12A1
- Weiser WR5 Keyway - SKU prefix: W12A1
Available Finishes
- Oil Rubbed Bronze (US10B)
- Polished Nickel - Lifetime (US14)
- Satin Nickel (US15)
- Flat Black (US19)
- Polished Chrome (US26)
- Unlacquered Brass (US3NL)
- Satin Brass (US4)
What's Included
- Exterior and interior brass backplates
- Your choice of lever (selected at checkout)
- American cylinder (keyed entry)
- All mounting hardware
- 2 keys per lock; orders of 3+ keyed-alike units ship 6 keys total
Warranty
Covered by Emtek's limited lifetime warranty on finish and mechanical function.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Brass
- Cylinder Position:
- Above Handle
- Door Configuration:
- #2
- Electronic:
- No
- Keyed:
- Yes
- Keyed Function:
- Single Cylinder
- Lock Function:
- Single Cylinder
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- BiltBest, G-U, Hurd (Energy Saver), Andersen
- Series:
- Modern
- Theme:
- emtek multi point lock trim
- MAP Policy:
- Yes
- Tags:
- emtek multipoint hardware, emtek handle set, multipoint door hardware
- Product Model:
- 12A1
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Keyed with American Cylinder
- Product Size:
- 1-1/2" x 11"
- Cylinder Classification:
- American
- Product Style:
- Modern
- Product Material:
- Brass
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Emtek 12A1-US19 – Frequently Asked Questions
1) Will the Emtek 12A1 multipoint trim fit my Andersen or BiltBest patio door?
The 12A1 is built for Door Configuration #2 preps and is listed to fit BiltBest, G-U, Hurd (Energy Saver) and Andersen multi-point doors. Config #2 means the cylinder hub sits above the lever, with 3-5/8 inches (92mm) between the cylinder center and the handle center. Check both of those on the door before you order: cylinder above the handle, and 3-5/8 inches center to center. If your door came from one of those makers but the prep measures differently, it is on a different Emtek configuration and this trim will not land on the existing holes.
2) Does the Emtek 12A1 include the multipoint lock mechanism, or only the handles and plates?
Trim only. What you get is everything that mounts on the faces of the door: an exterior and an interior forged brass backplate, the lever you select, an American cylinder for the keyed side, and the mounting hardware. The multipoint gearbox, rods and hooks buried in the door edge are not part of it. That makes the 12A1 the right call when the mechanism still throws properly and you want to change the look or replace worn, pitted trim, and the wrong call if the lock itself has failed.
3) My multipoint door has the key cylinder below the handle. Can I still use the Emtek 12A1?
No. The 12A1 is the above-handle version, with the cylinder hub sitting above the lever at 3-5/8 inch center to center. On a door prepped with the cylinder below the lever, the plate will not line up with the existing spindle and cylinder holes. Emtek splits its multipoint trim by door configuration for exactly this reason, so measure your existing plate first, note which side of the handle the keyway is on, and buy the trim that matches that prep.
4) My patio door is thicker than a standard 1-3/4 inch door. Will the Emtek 12A1 trim still work?
Up to 2-3/4 inches, yes. The 12A1 covers 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-1/2, 2-5/8 and 2-3/4 inch doors, and door thickness is something you state when you order so the trim comes set up for your leaf. Measure the door at the lock edge, not at a panel or a glass stop, and give the actual figure. Clad and insulated multi-point doors frequently run well past the 1-3/4 inch a standard commercial door uses.
5) Can the Emtek 12A1 be keyed to match the Schlage keys I already carry?
The cylinder comes in a Schlage keyway as standard or a Weiser WR5 keyway, both American cylinders, so pick the one your existing keys run on. Keying is handled at no charge when you order: keyed alike if you want several doors on one key, keyed different if not, and you can supply a key code to match a system already in the building. Each lock ships with 2 keys, and an order of three or more keyed-alike units ships 6 keys in total.
6) Is the Emtek 12A1 single or double cylinder, and does anyone need a key to get out?
Single cylinder. The key works the exterior side only; the inside is not keyed, so no one is hunting for a key to get out of the house. That is the usual choice on a glazed patio or entry door where a double cylinder would trap people inside during a fire. It also means the 12A1 is a keyed entry set, not a passage or dummy trim, so if the door you are dressing does not need to lock, this is the wrong function.
7) What do I have to specify when ordering the Emtek 12A1 besides the finish?
Four things beyond finish. The lever, which is chosen separately at checkout and is what gives the set its look. The handing, right or left, since levers are handed. The keyway, Schlage or Weiser WR5. And the keying, keyed alike or keyed different, with a key code if you are matching an existing system. Door thickness goes on the order too. For handing, stand outside the door and see which side the hinges are on: hinges on your right is a right hand door.
8) What finishes does the Emtek 12A1 modern multipoint trim come in, and will they match my other door hardware?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Every one of them is offered with either the Schlage or the Weiser WR5 keyway, so the keyway choice never limits the finish. Two worth thinking about before you commit across a house: Unlacquered Brass is a living finish that darkens and patinas with handling rather than staying bright, and Oil Rubbed Bronze also changes with wear. If the rest of the openings are on a plated finish like Satin Nickel or Polished Chrome, those stay put and match more predictably.
9) Is the Emtek 12A1 multipoint trim suitable for commercial entry doors in an apartment or office building?
Emtek positions the 12A1 as residential hardware, forged brass trim for multi-point doors from makers like BiltBest, G-U, Hurd and Andersen. It suits owner-occupied homes, condo units, and the sort of glazed patio or entry door you find in high-end multi-family. For a public-side commercial opening written to an ANSI/BHMA grade on the drawings, this is not the part to bid; that calls for a graded commercial mortise or cylindrical lock, not a multipoint trim set.
