Emtek 13B1 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

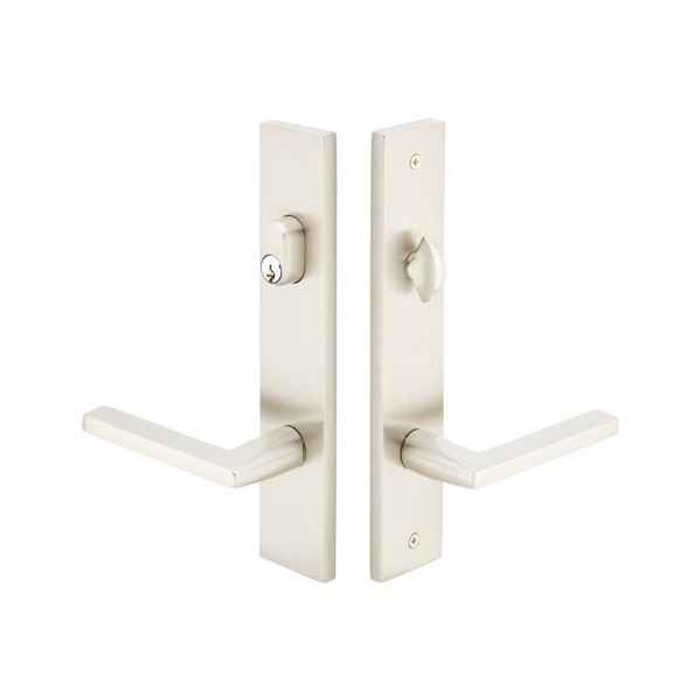

Emtek Emtek 13B1 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-13B1

Emtek 13B1 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 13B1-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 13B1 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
13B1
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 13B1-US19 – Frequently Asked Questions

1) What is the center-to-center measurement on the Emtek 13B1 trim, and will it line up with my multi point lock?
Center-to-center is 4-1/8 inches on the 13B1, measured between the handle hub and the cylinder hub. That spacing plus Door Configuration #3, with the cylinder sitting above the handle, is what has to match the prep in your door and the gearbox hub layout. If your existing lock puts the cylinder below the handle or spaces the hubs differently, this trim will not drop on.
2) Will Emtek 13B1 trim work on an Andersen patio door?
Andersen is the referenced door manufacturer for the 13B1 multi point trim. It's built as swinging patio door hardware in the Configuration #3 layout, cylinder above the handle, 4-1/8 inch hub spacing. Confirm your door's existing prep is Config #3 before ordering, because the configuration number is what decides the fit, not the door brand alone.
3) Do I have to specify handing when ordering the Emtek 13B1?
Yes, handing is a required selection: right hand or left hand. Because the cylinder sits above the handle rather than centered, the plate is not reversible in the field. Stand outside the door: if the hinges are on your right it's right hand, hinges on the left is left hand.
4) Can I key the Emtek 13B1 to the same key as my other Schlage or Kwikset locks?
The 13B1 takes an American cylinder and ships in either the Schlage keyway (standard) or the Weiser WR5 keyway, so pick the one that matches the rest of the house. Keying is a required choice at order time, keyed different or keyed alike, and there's a field to enter an existing key code so the trim arrives cut to a key you already carry. It's a single cylinder function, so key outside, thumbturn or lever inside.
5) Which levers can I use with the Emtek 13B1 multi point trim?
Lever style is a required choice and the 13B1 takes any Emtek brass lever, over 50 of them. That spans the geometric Modern range (L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble), the cast series like Athena, Helios, Hermes, Poseidon, Stuttgart and Luzern, and traditional profiles including Rope, Ribbon and Reed, Rustic, Santa Fe, Coventry and Arts and Crafts. The plate is Modern, so a squared lever reads cleanest against it, but nothing stops you pairing a traditional lever if the rest of the door hardware calls for it.
6) What finishes does the Emtek 13B1 brass trim come in?
Seven finishes, all on solid brass: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Every one of those is offered in both the Schlage and the Weiser WR5 keyway. Unlacquered brass is the one to know about: it has no clear coat, so it darkens and patinas with handling instead of staying bright.
7) Will the lever on this Emtek patio trim sag over time?
Sagging levers are the usual complaint on multi point patio trim, and the 13B1 includes a spring assist in the trim that returns the lever to the neutral horizontal position. That's built into every one of these trim sets now, so you don't specify it or add it. If you're replacing an older Emtek trim that droops, this is the fix.
8) Is the Emtek 13B1 trim rated for a commercial entrance or is it residential hardware?
Residential. The 13B1 is swinging patio door trim, brass, meant for homes and multi-family unit doors rather than a commercial entrance under heavy public traffic. For an apartment or condo unit patio door it's the right class of hardware; for a storefront or a public-side commercial opening you want a commercial grade lock and trim instead.
9) Do I need to give the door thickness when ordering Emtek multi point trim?
There's an optional door thickness field on the order for the 13B1, and it's worth filling in. Multi point patio doors run thicker than a standard interior door, and the spindle and cylinder tailpiece have to reach through the leaf. Measure the door edge and enter it rather than leaving it blank.
10) I'm standardizing patio door hardware across several units. Can I order Emtek 13B1 trim keyed alike?
Keyed alike is a selectable option on the 13B1, so a run of units can be ordered on one key. You can also key to an existing code by entering it on the order, which is how you fold new doors into a system already running in the building. Pick one keyway family (Schlage or Weiser WR5) and one finish across the order so the whole set matches on the key and on the door.
11) Is the Emtek 13B1 an electronic or smart lock?
No, it's fully mechanical. The 13B1 is keyed trim with an American cylinder and a lever, no motor, no keypad, no wiring. If you want a code or a phone to open a multi point patio door, this is not that product.
