Emtek 14B1 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$374.00
$299.20

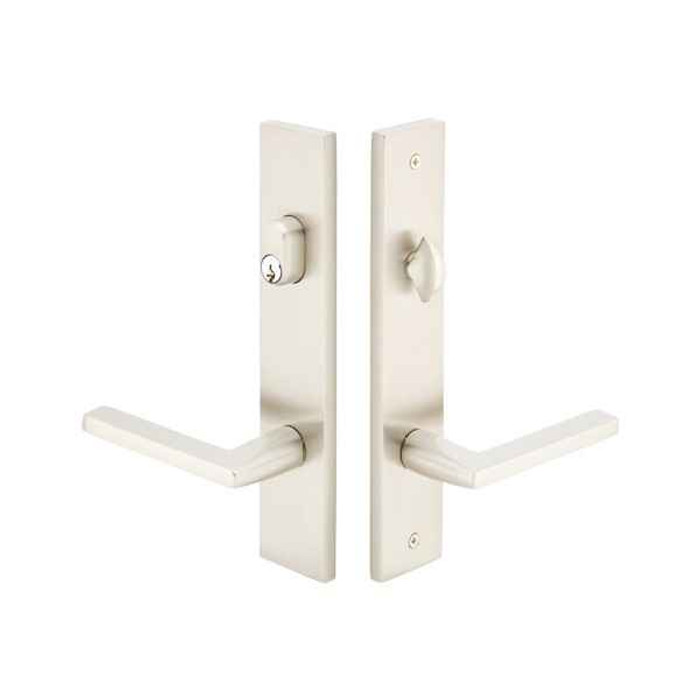

Emtek Emtek 14B1 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-14B1

Emtek 14B1 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 14B1-US19
From the Brass Collection
$374.00
$299.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$299.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 14B1 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
14B1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 14B1-US19 – Frequently Asked Questions

1) Does the Emtek 14B1 come with the multi point lock, or is it just the handles and plates?
Trim only. The 14B1 set is the two plates, the handles, and the cylinder. The multi point mortise lock box is not included, so this is for a door that already has a working multipoint lock in it, or for a job where the lock body is being sourced from the door manufacturer separately. If your gearbox is failing, replacing this trim will not fix it.
2) How do I know Emtek Door Configuration #4 trim is the right one for my patio door?
Two numbers settle it. The 14B1 is built for Emtek door configuration #4 and its handle and cylinder hubs are 3-5/8 inches center to center, with a plate measuring 2 x 10 inches. Measure from the center of the existing handle spindle hole to the center of the key cylinder hole on your door. If that comes out at 3-5/8 inches with the cylinder sitting above the handle, configuration #4 is your trim. If the spacing is different, a different Emtek configuration matches the door, and the trim will not land on the existing prep.
3) Will Emtek 14B1 multipoint trim work on a Marvin, JELD-WEN or Weathershield swinging patio door?
Those are among the door lines Emtek references for this trim, along with Ashland, G-U, Caradco, the JELD-WEN Custom Collection (formerly Pozzi), PGT, the Premium Collection (formerly Norco) and Weathershield. Being on that list is the starting point, not the finish: those makers used more than one multipoint layout over the years, so check the hole spacing on the door itself against the 3-5/8 inch center to center and the cylinder-above-handle arrangement before you order.
4) Can the Emtek 14B1 be keyed to match the Schlage keys I already use in the house?
Yes, if you order it in the Schlage keyway. The American cylinder on the 14B1 is offered in the Schlage keyway as standard or in the Weiser WR5 keyway, and keying to a code can be specified at no charge when you order, so it can be cut to an existing key code or keyed alike to the rest of a set. Pick the keyway that matches the keys already in service, since a Schlage-keyed cylinder will not accept a Weiser key.
5) Is the Emtek 14B1 keyed on both sides, or is there a thumbturn inside?
Single cylinder, keyed entry. The 14B1 takes a key on the exterior side only, and the interior side operates without a key. That is the usual arrangement for a swinging patio door where glass is right beside the lock, and it is worth knowing before you spec it, because a door that needs to be locked from inside with a key is a double cylinder application, not this trim.
6) Does the Emtek 14B1 multipoint trim come with levers, or do I pick those separately?
Levers are a separate selection made with the order. The 14B1 set ships with the plates, the handles and the cylinder, and it can be ordered with any Emtek brass lever, which is why there are dozens of lever styles to choose from against the same brass plate. Handing has to be called out too, right hand or left hand, since a lever trim set is handed and cannot be flipped in the field.
7) What finishes does the Emtek 14B1 modern multipoint trim come in, and will it match the rest of my door hardware?
Seven finishes cover the brass plates and handles: Oil Rubbed Bronze US10B, Polished Nickel Lifetime US14, Satin Nickel US15, Flat Black US19, Polished Chrome US26, Unlacquered Brass US3NL and Satin Brass US4. Those are standard Emtek finish codes, so a house already running Emtek levers, knobs or entry sets in, say, US15 can be matched across the patio door as well. Both keyway choices are offered in all seven, so the finish decision and the keyway decision are independent.
8) The lever on my patio door droops. Will new Emtek multipoint trim fix a sagging handle?
It addresses it directly. Emtek now builds a spring assist into this multipoint trim, which returns the lever to the neutral horizontal position instead of letting it settle downward over time. Sagging levers on a multipoint door are usually the trim losing its return spring rather than the lock body failing, so swapping the trim is often the whole repair, provided the gearbox still throws and retracts the points cleanly.
9) Is the Emtek 14B1 modern trim suitable for a commercial entrance?
It is residential hardware. The 14B1 is swinging patio door trim, intended for houses and residential units, and the 2 x 10 inch modern plate with a contemporary square profile is styled for that. For a commercial storefront or a code-driven commercial opening, this is not the right family of hardware to be specifying.
10) Is there a keypad or electronic version of this Emtek multipoint patio door trim?
The 14B1 is mechanical. Key on the outside, lever operation on the inside, no electronics, no keypad and no wiring to run to the door. For a property manager weighing access control on a patio door, that means rekeying is the tool for turning over a tenant, not a code change.
