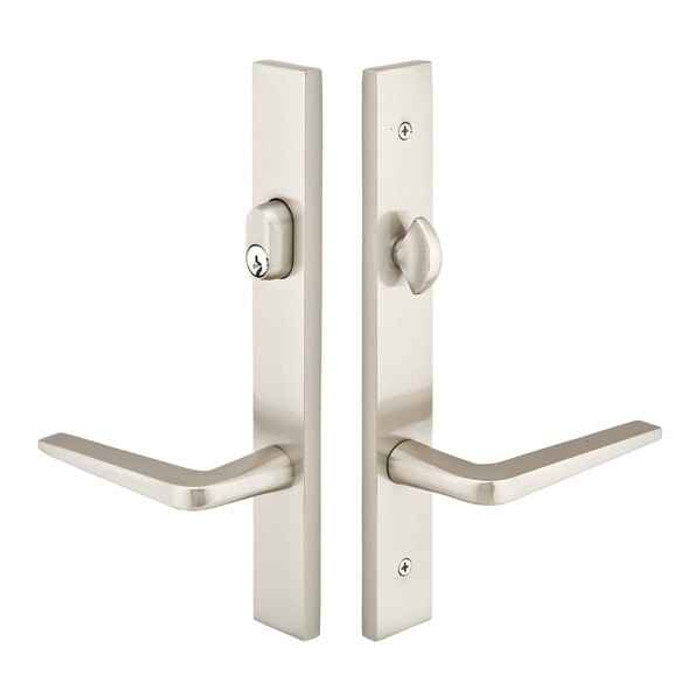

Emtek 14A1 Multi Point Lock Trim Door Config 4 - Brass Plates Modern Style 1.5 x 11 inches Keyed with American Cylinder Hub Above Handle , front and back plate view

Emtek 14A1 Multi Point Lock Trim (Door Config 4) - Brass Plates, Modern Style (1-1/2" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 14A1-US19
From the Brass Collection
$374.00
$303.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$303.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 14A1 Multi Point Lock Trim - Brass Plates, Modern Style, Door Config #4

Trim-only kit for multipoint door systems. Includes interior and exterior trim with levers and American cylinder (keyed entry). Plates are forged brass, 11" tall x 1-1/2" wide. Cylinder hub is positioned above the handle, 3-5/8" center-to-center from the handle. Covered by Emtek's limited lifetime warranty.

Note: Two keys ship per lock. Three or more items keyed alike ship a total of 6 keys.

Specifications

  • Trim Height: 11"
  • Trim Width: 1-1/2"
  • Cylinder Hub Location: Above Handle, American Cylinder
  • Center-to-Center (Cylinder to Handle): 3-5/8"
  • Door Configuration: #4
  • Keyway Options: Schlage (standard) or Weiser (WR5)
  • Available Finishes: Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL)

Compatible Door Manufacturers

  • Ashland
  • Caradco
  • G-U
  • JELD-WEN (including Custom Collection, formerly Pozzi)
  • Marvin
  • PGT
  • Premium Collection (formerly Norco)
  • Weathershield

Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Tags:
multi point door hardware
Product Model:
14A1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 14A1-US19 – Frequently Asked Questions

1) Does the Emtek 14A1 include the multipoint lock mechanism, or is it just the trim?
Trim only. The 14A1 kit is the interior and exterior plates, the levers, and the American cylinder for keyed entry. The multipoint gearbox, rods and strikes stay in the door. So this is what you order when the lock itself still works and you want new hardware on the face of the door, or when a door manufacturer shipped the door prepped for a multipoint but without finish trim. If the gearbox is the failed part, this kit won't fix it.
2) Which patio door brands does the Emtek 14A1 Door Config #4 trim fit?
The 14A1 is cut for multipoint systems from Ashland, Caradco, G-U, JELD-WEN (including the Custom Collection, formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield. Those are the door systems whose hardware geometry matches Door Configuration #4. Brand alone doesn't settle it though, since most of these makers used more than one multipoint layout over the years. Confirm the cylinder sits above the handle and the cylinder-to-handle centers measure 3-5/8 inches on the door you're working on.
3) How do I tell if my door is Emtek Door Configuration #4 before I order?
Two measurements decide it. On a Config #4 door the key cylinder sits above the lever, and the distance from the center of the cylinder to the center of the handle spindle is 3-5/8 inches. The two plate mounting holes are 7-1/4 inches apart center to center, and the handle sits 1-3/16 inches from its mounting point. Pull the existing interior plate off, measure cylinder-to-spindle and the screw hole span, and compare. If your cylinder is below the handle, or the centers come up at anything other than 3-5/8 inches, the 14A1 is the wrong configuration and you need the Emtek trim for whichever configuration your door actually uses.
4) What door thickness does the Emtek 14A1 multipoint trim fit?
Thickness is an order-time selection, not a one-size part. The 14A1 covers 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-1/2, 2-5/8 and 2-3/4 inch doors, which spans standard 1-3/4 inch swinging patio doors all the way up to heavy custom and thermally broken units. The spindle and cylinder tailpiece length follow that choice, so measure the door slab at the lock edge and give the actual thickness with the order. A trim set built for a 1-3/4 inch door will not reach through a 2-1/4 inch slab.
5) Can I get the Emtek 14A1 keyed to match the Schlage keys I already carry?
Yes, on the keyway side. The 14A1 ships with a Schlage keyway cylinder as standard, and a Weiser WR5 keyway is the alternative. Pick the one that matches the rest of the building so the key blank is right, then use the keying options at checkout: keyed alike if the patio doors should run on one key, keyed different if they shouldn't, or key to a specific code if you already maintain a keying schedule. Two keys ship per lock, and an order of three or more keyed alike ships six keys total.
6) What do I have to specify when ordering Emtek 14A1 multipoint trim?
Six things, and every one of them changes the part that ships. Handing (right or left, viewed from outside), lever style, finish, keyway (Schlage or Weiser WR5), keying arrangement, and the door thickness. Handing is the one people get wrong most often on patio doors, because the trim is not reversible in the field. Stand outside the door: if the hinges are on your right, it's right hand. Get all six on the order and the kit arrives ready to mount to the existing multipoint gearbox.
7) Is the Emtek 14A1 single or double cylinder, and how does the inside operate?
Single cylinder. The key works from the outside only; the inside plate carries a lever with no keyhole, so anyone inside can operate the lock without hunting for a key. That's what you want on a patio or terrace door for egress. If your local code or insurer requires a key on both sides, or you want a thumbturn instead of a keyed exterior, the 14A1 is not that trim, you need the corresponding Configuration #4 thumbturn or non-keyed set.
8) What kind of cylinder does the Emtek 14A1 take, American or Euro profile?
American cylinder, not a Euro profile. That matters on multipoint doors because a lot of European-made gearboxes are built around a Euro profile cylinder, and the two are not interchangeable. The 14A1 comes with its American cylinder in the kit, in either the Schlage or the Weiser WR5 keyway, so you're not sourcing one separately. If the door you're retrofitting currently has a long rectangular Euro cylinder with a cam in the middle, check the gearbox prep before ordering.
9) How big are the Emtek 14A1 Modern plates, and will they cover the marks left by the old trim?
The Modern plates measure 1-1/2 inches by 11 inches, with the mounting holes 7-1/4 inches apart. That's a deliberately narrow escutcheon, so it suits slim patio door stiles, but it also means it will not hide the footprint of a wider plate that was there before. Hold a 1-1/2 by 11 inch template over the existing hardware and see what falls outside it. If the old trim was wider, plan on filling and finishing, or step up to a wider Emtek plate style in the same Configuration #4 geometry.
10) What finishes does the Emtek 14A1 Modern trim come in, and can I get any finish with either keyway?
Seven finishes: Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26) and Unlacquered Brass (US3NL). All seven are available with either the Schlage or the Weiser WR5 keyway, so keying doesn't limit your finish choice. One thing to know before you commit to Unlacquered Brass: it has no clear coat and will darken and patina with handling and weather, which is the point for some jobs and a callback for others. The other six hold their appearance.
11) Are the Emtek 14A1 plates solid brass or plated steel?
Forged brass, both the plates and the substrate underneath the finish. On an exterior swinging patio door that's the material question worth asking, because brass doesn't rust the way a plated steel escutcheon does when water sits in the screw holes. It is a residential-duty product rather than a commercial-grade one, so it's suited to homes, condo units and multi-family patio doors rather than a high-traffic commercial entrance.
12) Is there an electronic or keypad version of the Emtek 14A1 multipoint trim?
No. The 14A1 is mechanical, key-operated trim with an American cylinder. No keypad, no motor, no wiring, nothing to prep the door for and no power to run. For a rental turnover or a short-term let where you'd rather rotate codes than keys, this isn't the trim for it, and you'd be looking at Emtek's electronic multipoint offering instead. For an owner-occupied patio door on a normal key system, mechanical is one less thing to fail.
