Emtek Emtek 1311 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1311

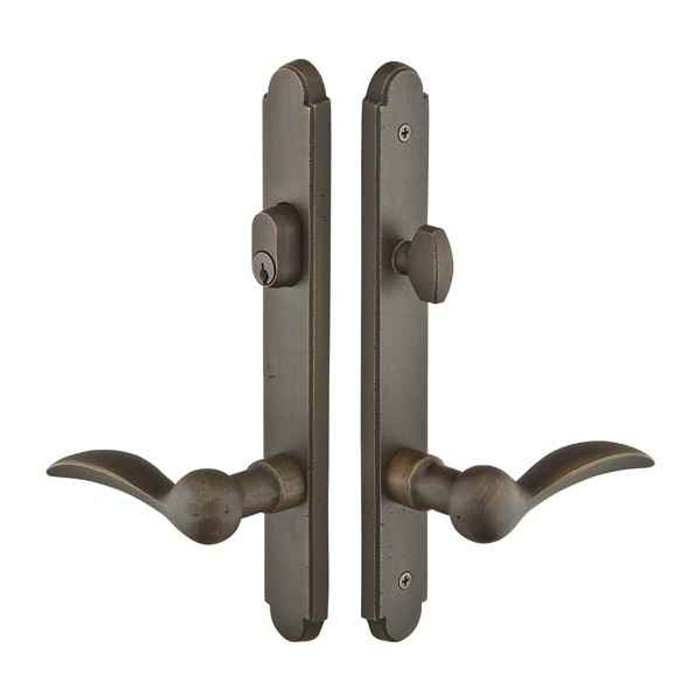

Emtek 1311 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(2 reviews) Write a Review

Model: 1311-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1311 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1311
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1311-FB – Frequently Asked Questions

1) Does the Emtek 1311 multi point trim include the multi point mortise lock body?
No. The 1311 is trim only: plates, handles, and the cylinder. The multi point mortise lock box is a separate purchase, so you need the door's existing multi point lock or a new one before this set does anything. Buy it when you're dressing a swinging patio door that already has a multi point mechanism in the stile.
2) Which key can I get the Emtek 1311 cylinder in, and can I key it to my existing house key?
The cylinder is an American cylinder in either the Schlage keyway (the standard choice) or the Weiser WR5 keyway. Pick the one that matches the rest of your doors. Keying is ordered as keyed different or keyed alike, and there is a keying-to-code field if you want it cut to an existing bitting so one key runs the patio door and the entries.
3) Do I have to specify handing when ordering Emtek 1311 multi point trim?
Yes, handing is a required choice, right hand or left hand, and it is not field reversible on the order. Stand outside the door: if the hinges are on your right, it's right hand. Get it wrong and the lever and cylinder orientation fight the door.
4) Will Emtek 1311 trim work on an Andersen patio door?
Andersen is the reference door manufacturer for this trim, so it is built around that hardware layout, specifically Configuration #3 with the cylinder hub above the handle at 4-1/8 inch centers. Confirm your door's hub spacing and cylinder position against those two numbers, because Andersen has used more than one multi point configuration.
5) How big are the Emtek 1311 plates, and will they cover the old escutcheon marks on my patio door?
Each plate measures 1-1/2 by 11 inches in an arched sandcast bronze profile. That is a narrow plate, so it suits a patio door stile but won't hide wide prep scars or larger footprints left by a different brand's trim. Measure the existing plate before you order.
6) Is the Emtek 1311 keyed on both sides or thumbturn inside?
Single cylinder. One keyed American cylinder on the exterior plate, no key required from the inside. If you have glass within reach of the lock and your inspector wants a double cylinder, this is not the trim for that.
7) Which levers can I put on the Emtek 1311 sandcast bronze trim?
Any Emtek sandcast bronze lever, and the lever is a required selection when you order. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. All ten are in the same sandcast bronze collection as the plates, so the finish matches across the set.
8) Do I need to give my door thickness when ordering Emtek multi point lock trim?
There is a door thickness field on the order, and it is worth filling in. The spindle and cylinder tailpiece have to cross the door, so on a thicker than standard patio slab the thickness you enter is what gets the through-parts right. If you leave it blank you get the standard build.
9) My multi point patio door handles keep sagging. Does new Emtek trim fix that?
Sagging levers are what the spring assist in this trim addresses. Every Emtek multi point lock trim set now ships with a spring assist that returns the lever to neutral instead of letting it droop under its own weight, which is the usual complaint on long patio levers.
10) I have several patio doors to do. Can I order Emtek 1311 sets keyed alike across all of them?
Yes. Keyed alike is a selectable keying option, so a set of doors can run on one key, and there's a keying-to-code entry if the property is already on an established bitting. Keep the keyway consistent across the order, Schlage or Weiser WR5, since the two aren't interchangeable.
11) What finishes does the Emtek 1311 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available with either keyway. Sandcast bronze is a living finish, so it will move and darken with handling rather than staying uniform, which is the point if you're matching rustic bronze hardware elsewhere on the house.
12) Is Emtek 1311 multi point trim rated for a commercial entrance or an apartment building common door?
Residential. The 1311 is swinging patio door hardware in sandcast bronze, intended for houses and residential units, not for commercial traffic or a fire rated opening. For a common corridor or a leasing office entry, spec commercial grade hardware instead.
13) Is the Emtek 1311 available as a keypad or electronic multi point handle?
No, it's a mechanical keyed set with an American cylinder, no electronics. If you want code or app entry on a multi point patio door, this trim is not the path; look at an electronic multi point handleset instead.
