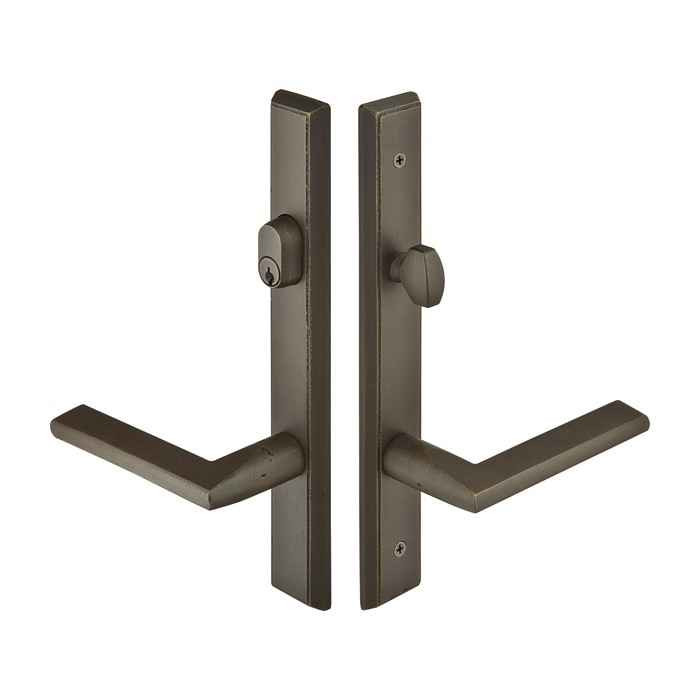

Emtek Emtek 1351 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1351

Emtek 1351 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1351-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1351 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1351
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1351-FB – Frequently Asked Questions

1) Does the Emtek 1351 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1351 set gives you the plates, handles, and cylinder, and the multi point mortise lock box is not included. If you're replacing a failed gearbox or building a door from scratch, you still need the multi point lock itself. Buy this when the lock body in the door is sound and you're changing or upgrading the visible hardware.
2) What does Door Configuration #3 mean on an Emtek multi point trim, and how do I know my door is that config?
Configuration is how the trim's holes line up with the multi point lock already in the door. The 1351 is built for Configuration #3 with the cylinder hub ABOVE the handle and 4-1/8 inch center-to-center between the hub and the spindle. Measure from the center of your existing keyway to the center of the handle spindle: if the key is above the lever and that distance is 4-1/8 inches, this is your trim. A different spacing or a cylinder below the handle is a different configuration and the plate will not line up.
3) Will the Emtek 1351 trim fit on an Andersen patio door?
Andersen is the referenced door manufacturer for the 1351 trim, and it's made for swinging patio doors running a multi point lock. The deciding detail is still the hole pattern: cylinder above the lever, 4-1/8 inches hub to spindle. Confirm that on the door and the 1.5 x 11 inch plate covers the existing prep.
4) Do I have to specify handing when ordering the Emtek 1351 patio door trim?
Yes, handing is required, right hand or left hand. Stand outside the door: if the hinges are on your right it's a right hand door. Get it wrong and the lever and the key position land on the wrong side of the plate. Lever style is also a required choice, so pick both before you order.
5) Can I key the Emtek 1351 to match the Schlage keys I already use on the building?
The 1351 comes with an American cylinder in either the Schlage keyway (standard) or the Weiser WR5 keyway, so if the rest of your doors run Schlage, order the Schlage keyway and it takes the same key blank. Keying is a free option: keyed alike if you want one key across several doors, keyed different if each opening gets its own, and there's a keying-to-code field if you need it cut to an existing code. It's a single cylinder function, so key outside and thumbturn or lever inside.
6) What finishes does the Emtek 1351 sandcast bronze trim come in, and will it match my other Emtek bronze hardware?
Three finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB), all in either keyway. It's part of Emtek's Sandcast Bronze collection, so it matches the same finish codes on other Sandcast Bronze pieces. Solid bronze, not plated, so the surface wears in rather than flaking.
7) Which levers can I put on the Emtek 1351 multi point trim?
Any Sandcast Bronze lever works with the 1351 trim. Ten are selectable when ordering: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Lever choice is required, so decide it with the finish. If you're matching interior doors elsewhere in the house, pick the same lever family.
8) Do Emtek multi point door levers sag over time?
The 1351 trim includes Spring Assist, which returns the lever to neutral and is there specifically to stop handles drooping. That matters on a patio door, where a tall multi point handle carries more leverage than a standard lockset and a sagging lever eventually stops throwing the lock points cleanly.
9) Is the Emtek 1351 rated for commercial use, or is it residential hardware?
Residential. The 1351 is swinging patio door trim from Emtek's Sandcast Bronze line, built for houses and multi family units rather than commercial entrance traffic. For a storefront or a high traffic commercial opening, look at a Grade 1 commercial lockset instead.
10) How much of my old patio door plate will the Emtek 1351 cover?
The plates measure 1-1/2 by 11 inches in a rectangular profile. If your existing trim is wider or longer than that, the swap will leave the old outline or unfinished stile showing. Measure the old plate footprint before ordering, especially on a painted or stained door where the shadow of the previous hardware shows.
11) Does door thickness matter when ordering Emtek 1351 multi point trim?
It does, and there's a door thickness field on the order so you can state yours. The spindle and the cylinder tailpiece have to reach through the door into the multi point lock, so an out-of-ordinary thickness needs to be called out rather than assumed. Measure the door edge and enter the number when you order.
12) Is the Emtek 1351 an electronic or smart lock?
No electronics. The 1351 is mechanical key-and-lever trim with an American cylinder, no keypad, no battery, nothing to pair. If you want keyless entry on a multi point patio door, you need an electronic multi point handleset instead of this trim.
