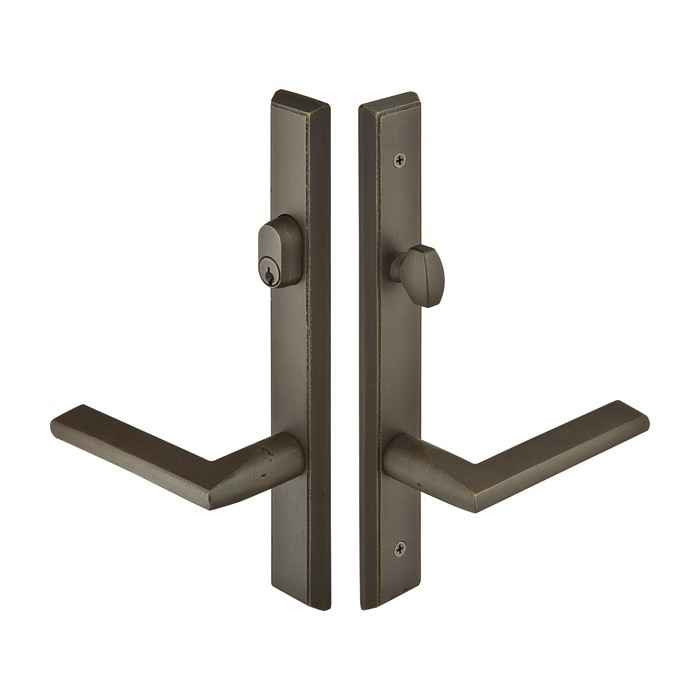

Emtek Emtek 1451 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1451

Emtek 1451 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1451-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1451 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1451
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1451-FB – Frequently Asked Questions

1) Does the Emtek 1451 multipoint trim include the multipoint mortise lock body?
No. The 1451 is trim only: plates, handles, and the cylinder. The multipoint mortise lock box is a separate purchase, so if you are building a new swinging patio door you need the lock body from the door manufacturer or supplier as well. If you are just refinishing or replacing worn handles on an existing multipoint door, trim only is exactly what you want.
2) What is Door Configuration #4 on Emtek multipoint trim, and how do I know my door takes it?
Configuration refers to where the cylinder and handle hubs sit on the plate. On the 1451 that is Config #4: keyed, with the American cylinder positioned ABOVE the handle. The plate has a 3-5/8 inch center-to-center between hubs. Pull the existing trim or check the door prep, measure hub-to-hub, and confirm the key cylinder falls above the lever rather than below it. If your cylinder sits below the handle, this is the wrong configuration.
3) Which patio door brands does Emtek 1451 multipoint trim fit?
Emtek references this multipoint trim against Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield doors. Brand alone does not settle it, though. The deciding checks are the configuration (cylinder above the handle) and the 3-5/8 inch hub center-to-center against your existing prep.
4) Can I key my Emtek patio door trim to the same key as my Schlage or Weiser house locks?
Yes, within the two keyways offered. The 1451 uses an American cylinder and ships with either a Schlage keyway (the standard choice) or a Weiser WR5 keyway, so pick the one that matches the rest of the house. Keying is single cylinder, meaning key outside and thumbturn or lever operation inside. You choose keyed alike or keyed different at ordering, and you can supply a key code if you are matching an existing system.
5) What do I have to specify when ordering the Emtek 1451 multipoint trim?
Five things are decided on the order form. Lever style, from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing, right or left. Keyway, Schlage or Weiser WR5. Keyed alike or keyed different, with an optional key code if you are matching an existing system. And the finish: Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Door thickness can be noted as well.
6) Does handing matter on a multipoint patio door trim, and how do I determine it?
Handing matters, and it is a required selection: right hand or left hand. On a swinging patio door, stand outside facing the door; if the hinges are on your right it is a right hand door. Get this wrong and the lever pitches the wrong way and the cylinder orientation will not match the prep.
7) Is this Emtek multipoint trim suitable for a commercial or multifamily entry?
Emtek classifies the 1451 as residential hardware, and it is single cylinder keyed entry trim for swinging patio doors. For an apartment unit's own patio door it is a reasonable fit. For a commercial entrance or a common-area opening with traffic and code requirements, this is not the product class you want.
8) Is sandcast bronze trim durable enough for an exterior patio door, and will the three finishes weather?
The plates and levers are solid sandcast bronze, a heavier cast material than the plated zinc or brass-finished trim common on stock patio doors. Bronze is a living finish outdoors: Flat Black Bronze, Medium Bronze, and Tumbled White Bronze will darken and develop patina where hands and weather touch them. If you are matching several doors on a property, order them together so they start from the same point and age alike.
9) Can I mix and match Emtek sandcast bronze levers with this multipoint trim to match my interior door hardware?
Yes. The 1451 can be ordered with any Sandcast Bronze lever, and the ten choices, Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, are the same rustic family Emtek uses across interior knobs and levers. That is how you get the patio door to read the same as the rest of the house rather than looking like the builder's leftover.
10) Is the Emtek 1451 multipoint trim electronic or keypad operated?
Mechanical only. The 1451 is key and lever operated with an American cylinder, no keypad, no motor, and no wiring in the door. If you want electronic access on a multipoint patio door, this is not it.
