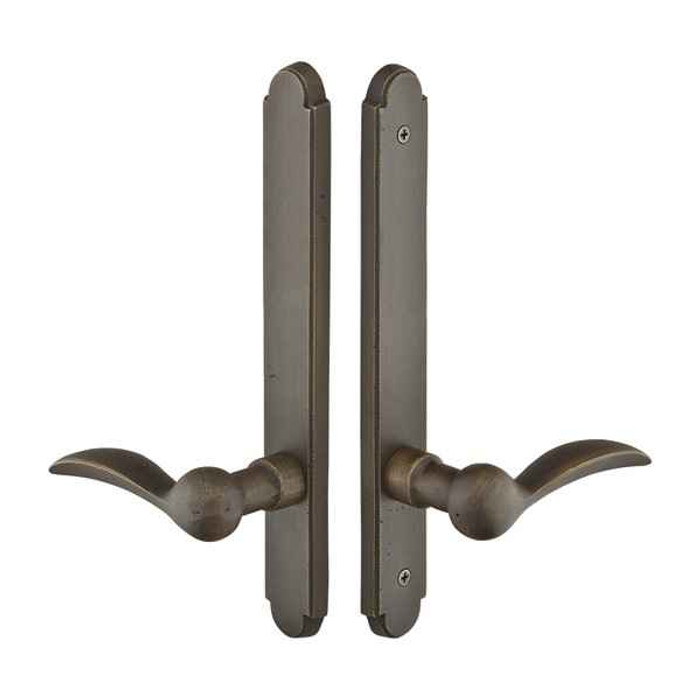

Emtek 1315 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Dummy Pair

No. The Emtek 1315 is trim only, a dummy pair of plates and handles for a swinging patio door. The multi point mortise lock box is not included, so if you need a working, latching door you have to source the lock separately. Dummy trim is for the fixed, inactive leaf of a patio pair, where the handle is pulled but nothing operates.

The 1315 is referenced to Andersen doors and is built to Door Configuration #3, the layout that determines where the handle and cylinder cut-outs sit on the plate. The cylinder position is above the handle, and the plate is drilled on 4-1/8 inch center-to-center. Confirm your existing multi point lock uses that same handle-to-cylinder spacing and configuration before ordering, because the configuration number is what makes the trim line up.

Yes, handing is required. You choose Right Hand (RH) or Left Hand (LH) at order time. Stand outside the door: the side the hinges are on determines the hand. You also pick a lever style, so the order needs finish, lever, and hand all three specified.

Ten Sandcast Bronze levers pair with the arched plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Any Sandcast Bronze lever can be ordered with these plates, so you can match levers already used on interior doors in the same house.

Each plate measures 1-1/2 x 11 inches in the arched profile. That is a narrow plate, so it works on slim patio door stiles, but it will only hide existing prep that falls inside an 11 inch run at that width. Mounting is surface mount with no new door prep required.

No. As a dummy pair it is not keyed and takes no working cylinder. The plate is configured with the cylinder location above the handle to match the Configuration #3 layout, and Emtek's multi point cylinders in this family are American classification, but a dummy set does not lock. If you need a keyed active leaf, order the keyed trim plus the multi point mortise lock box.

A dummy pair has handles on both sides purely as pulls, with no latch, no cylinder function and no lock box behind it. An active or keyed multi point trim drives a mortise lock case that throws latches and hooks at multiple points up the door. On a pair of swinging patio doors, the operating leaf gets the active trim and lock case, and the fixed leaf gets a dummy set like the 1315 so the two doors look identical from inside and out.

Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are living bronze finishes on a solid bronze substrate, so they patina with handling and exposure rather than staying uniform, which suits the rustic look the Sandcast Bronze line is built around.

It is a residential product, intended for swinging patio doors in homes. For a commercial entrance with high daily cycle counts, specify graded commercial lockset hardware instead. It is also mechanical, with no electronic or access control option.
