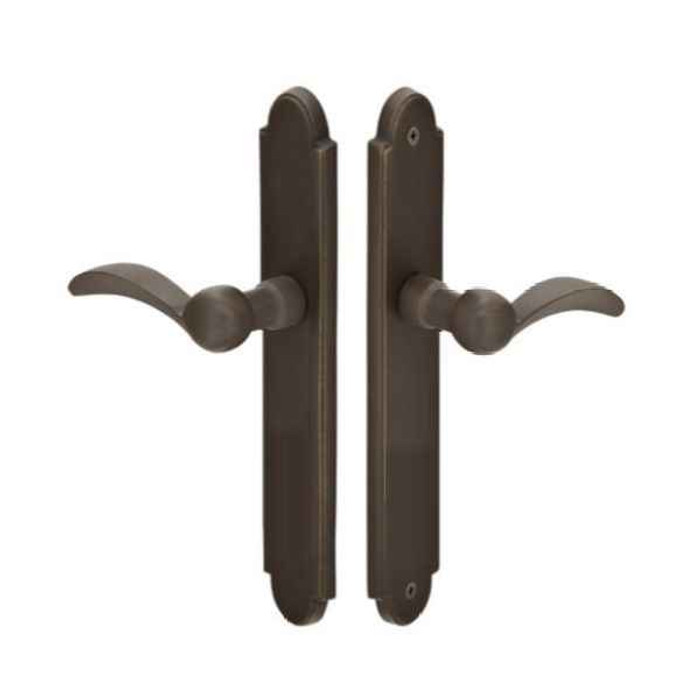

Emtek 1515 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Dummy Pair

No. The 1515 is trim only: you get the pair of sandcast bronze plates and the handles (levers). The multi point mortise lock box is not included, so if you are replacing a failed gearbox as well you need to source that separately. Because this is the dummy version, there is no keyed cylinder and no electronic function, it is a fixed pull pair for the inactive leaf of a swinging patio door.

Yes. The 1515 covers door thicknesses from 1-3/8 to 1-3/4 inches, which spans standard commercial/residential 1-3/4 inch doors and thinner 1-3/8 inch leaves. It is surface mount, so no door prep is needed for the plates themselves. Door thickness is an entry on the order form, so give the actual measured thickness when you order.

Emtek lists the 1515 trim against multi point systems from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Those are reference manufacturers, so still confirm your door's handle-to-cylinder spacing is 3-5/8 inches with the cylinder below the handle before ordering.

It is a dummy pair, meaning plates and levers on both the inside and outside face with no latching or locking action. Typical use is the fixed or inactive leaf of a French or swinging patio door pair, where you want the same sandcast bronze look as the active leaf but no operating hardware. If the leaf needs to lock, you need an active multi point trim set instead, plus the mortise lock body.

Yes, handing is required: right hand or left hand. The arched plate and lever orientation are made to a hand, so ordering the wrong one puts the lever facing the wrong way even though the set does not latch.

Ten sandcast bronze levers pair with the 1515 arched plate: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Finish choices are Flat Black Bronze, Medium Bronze and Tumbled White Bronze. Lever style and finish are both required selections, so pick the lever that matches the passage and entry hardware already on the rest of the house.

The arched plate measures 1-1/2 x 11 inches. That is a narrow escutcheon, so it will cover a euro cylinder and handle spindle prep but not a wide-format plate footprint from another brand. Since it mounts on the surface with no new door prep, you are only fitting to the existing holes.

The plates and levers are sandcast bronze from Emtek's Sandcast Bronze collection, with brass noted as the base material in the spec. Emtek classes it as residential hardware, so for a high-traffic commercial entrance a Grade 1 commercial-rated set is the better call.
