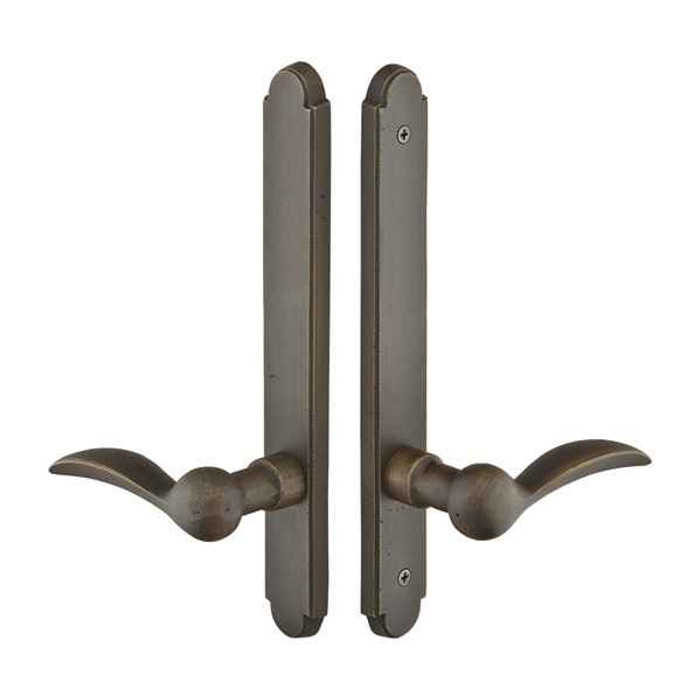

Emtek 1415 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Dummy Pair

No. The Emtek 1415 is trim only: plates and handles. The multi point mortise lock case is not included, and because this is the dummy pair it has no working latch or bolt mechanism at all. It mounts on the surface of the door with no door prep required, so use it on the inactive leaf of a swinging patio door pair or on a door that needs matching hardware without a lock.

The 1415 plates are drilled 3-5/8 inches center-to-center and measure 1-1/2 by 11 inches, so the mounting pattern has to match what is on your door. Emtek lists this trim as referencing Ashland, G-U, Caradco, JELD-WEN, Jeld-Wen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield doors. Measure your existing center-to-center before ordering, since Door Configuration #4 is one of several Emtek layouts.

Yes, handing is required. You choose Right Hand or Left Hand, and you also have to pick the lever style from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma. Levers are part of the set, not a separate order.

That is exactly where a dummy pair belongs. Put the active multi point handleset on the operating leaf and the 1415 dummy trim on the fixed leaf so both sides read identically. Match the finish and lever style between the two, and keep the center-to-center at 3-5/8 inches on both leaves so the plates line up at the same height.

It covers 1-3/8 inch to 1-3/4 inch doors, which spans the common residential patio door range. There is also an optional door thickness note field on the order, so if your slab is a non-standard thickness you can state it when you order.

Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are from Emtek's Sandcast Bronze collection, so they match other Sandcast Bronze levers, knobs and entry sets on the rest of the openings in the house.

No. The dummy configuration is not keyed and takes no cylinder. On the keyed and active versions of Emtek's Door Configuration #4 the cylinder sits above the handle and uses an American-style cylinder, but the dummy pair is a pull-only set for an inactive or non-locking leaf.

No machining for the lock case, since it is surface mount with no door prep required and there is no mortise pocket to cut for the dummy set. You are fastening the plates through the face of the door, which keeps it practical as a retrofit on an already finished patio slab.

Solid sandcast bronze, both material and substrate. The casting gives the arched plate the texture and variation you see on rustic and heavy timber patio openings rather than the smooth look of stamped brass trim. Emtek rates it as residential hardware.
