Emtek 1342 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

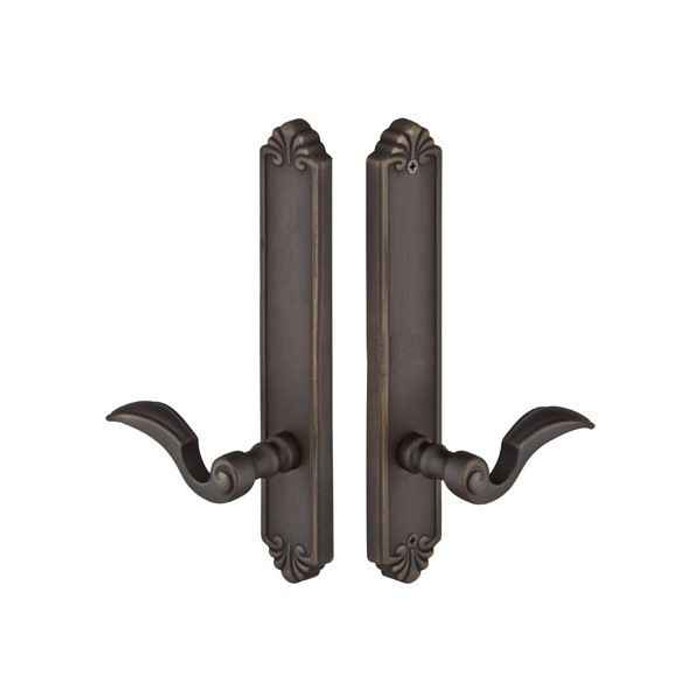

Emtek Emtek 1342 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage EMTEK-1342

Emtek 1342 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1342-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1342 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1342
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1342-MB – Frequently Asked Questions

1) What is Door Configuration #3 on Emtek multi point trim?
Configuration #3 describes how the plate is drilled for the lock hardware. On the 1342 the cylinder position is above the handle, and because this is the non-keyed passage version there is no cylinder in it, the plate simply matches that layout. Emtek multi point trim must match the configuration of the mortise lock body in your door, so confirm your gearbox is a #3 layout before ordering.
2) What door thickness and backset does the Emtek 1342 Tuscany trim work with?
It covers doors from 1-3/8 inch to 1-3/4 inch, with an adjustable backset of 2-3/8 inch or 2-3/4 inch and a 2-1/8 inch cross bore. Those are the two standard residential backsets, so most swinging patio door preps fall inside the range.
3) Does the Emtek 1342 lock, or is it passage only?
Passage only. The 1342 is non-keyed with no cylinder and no thumbturn function of its own, so the handles operate the latch and multi point rods but there is no key control at this trim. If you need a keyed patio door, choose a keyed version of the same configuration instead.
4) Do I have to specify handing on the Emtek 1342 multi point trim?
Yes, handing is required. You pick right hand or left hand at order time, and you also choose one of four Tuscany lever styles: Medici, Napoli, Octagon or Padua. Getting the hand wrong means the lever sits backwards on the door, so stand outside the door and note which side the hinges are on before you order.
5) Will the Emtek 1342 trim fit an Andersen patio door?
Andersen is the referenced door manufacturer for this trim. Fit still depends on your gearbox matching Door Configuration #3 and the 4-1/8 inch center-to-center handle spacing, so verify those two against the existing hardware.
6) What size are the Emtek Tuscany plates and where do the handles line up?
The Tuscany style plates measure 2 x 10-1/2 inches with 4-1/8 inch center-to-center spacing. That spacing is what has to match your door prep and gearbox spindle location, so check it against the existing plate footprint if you are swapping trim on an installed door.
7) Will the Emtek 1342 handles sag over time like older patio trim?
No. Emtek multi point trim now includes a spring assist that returns the lever to neutral and keeps the handle from drooping, which was the common complaint on older patio door levers.
8) What finishes does the Emtek 1342 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). The plates are lost wax cast bronze, so the finish develops the variation typical of solid cast bronze rather than a uniform plated look. If you are matching other openings in the house, stay within the Tuscany Bronze collection since any Tuscany bronze lever can be ordered with this trim.
9) Is the Emtek 1342 trim suitable for a commercial building entrance?
It is a residential product, sold for swinging patio doors in homes. For a commercial opening that needs a graded, code-rated lock, this is the wrong category of hardware.
10) What latch faceplate shape comes with the Emtek multi point trim setup?
The latch faceplate is available in round corner or square corner to match the existing mortise pocket in the door edge. Pick whichever matches the cutout you already have so you are not chiseling the jamb-side prep.
