Emtek Emtek 1353 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1353

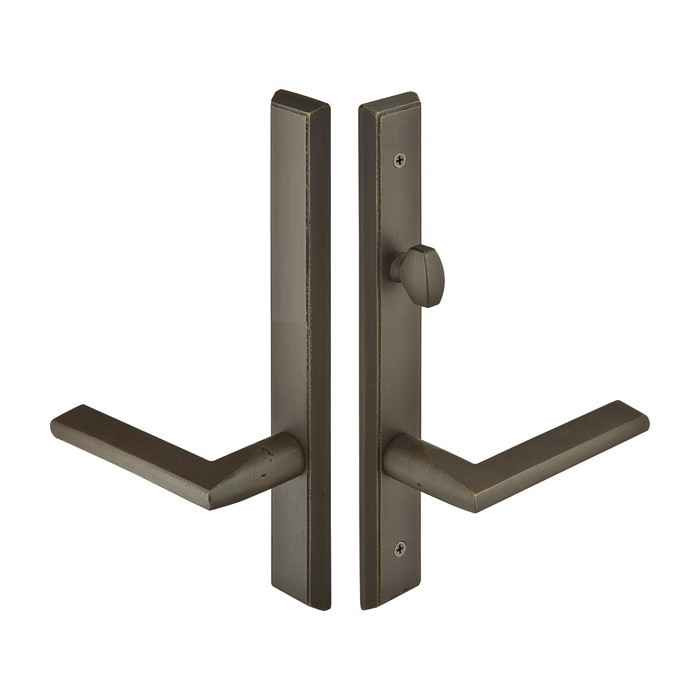

Emtek 1353 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1353-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1353 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1353
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1353-FB – Frequently Asked Questions

1) Will the Emtek 1353 trim fit an Andersen multi point patio door?
Andersen is the referenced door manufacturer for this trim, so it is intended for Andersen swinging patio door applications running Configuration #3 prep with a 4-1/8 inch center-to-center. Confirm your door's existing hole spacing before ordering, since Andersen used more than one configuration across model years.
2) What is Door Configuration #3 on an Emtek multi point trim, and how do I know it matches my door?
The 1353 is built for Configuration #3, which sets where the cylinder and spindle holes fall on the plate. On this one the cylinder sits above the handle, and the center-to-center spacing is 4-1/8 inches. Measure from the middle of the handle spindle hole to the middle of the cylinder hole on your existing door prep. If that comes out to 4-1/8 inches with the cylinder above the lever, Config #3 lines up.
3) Is the Emtek 1353 keyed on the outside, or how does it lock?
It is the non-keyed version. There is no key cylinder supplied with the 1353; it operates with an American style thumbturn on the inside. Choose this for an interior-side or secondary patio door where you do not need key access from outside. If you need to lock and unlock from the exterior, you want the keyed version of the same trim instead.
4) What do I have to specify when ordering the Emtek 1353 trim set?
Three things beyond finish. Lever style is required, and there are ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing is required, right or left. Door thickness is an optional text entry. Finish is picked as the variant: Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
5) Will the 1-1/2 inch wide plate cover my old patio door hardware footprint?
The Emtek 1353 plate measures 1-1/2 x 11 inches in a rectangular shape. That is a narrow plate, so it will not hide a larger previous escutcheon or a wider gasket shadow. If your existing trim left a bigger outline in the door finish, plan on touch-up or step up to a wider plate style.
6) Do the levers on this Emtek trim sag over time like older patio handles?
No. Emtek multi point trim now ships with a Spring Assist function that returns the lever to neutral and stops the droop you get on older patio door handles. That is worth knowing if you are replacing a set that sagged.
7) Can I mix a different Emtek lever with the 1353 rectangular plates?
Yes, within the Sandcast Bronze line. The 1353 can be ordered with any Sandcast Bronze lever, which is why lever style is a required selection with ten choices. That lets you match the patio door to the Sandcast Bronze levers already on the interior doors of the house.
8) Is sandcast bronze trim going to hold up on a coastal or high-traffic patio door?
The 1353 plates and levers are sandcast bronze, a solid cast material rather than plated zinc, offered in Flat Black Bronze, Medium Bronze and Tumbled White Bronze. Emtek classifies this trim as residential. The living finishes will develop patina with handling and weather rather than staying uniform, which is the intended look for the Sandcast Bronze collection.
9) Is this Emtek patio trim available as an electronic or smart lock?
No. The 1353 is strictly mechanical trim, non-keyed with an inside thumbturn. There is no electronic or keypad option in this configuration.
