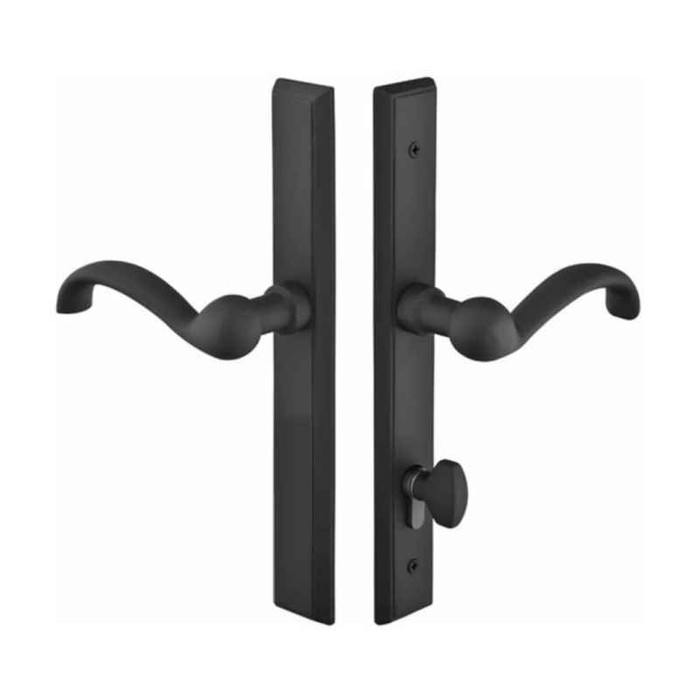

Emtek Emtek 1553 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1553

Emtek 1553 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1553-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1553 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1553
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1553-FB – Frequently Asked Questions

1) Does the Emtek 1553 multi point trim include the lock body, or do I need to order the mortise lock separately?
Trim only. The Emtek 1553 set includes the sandcast bronze plates and handles, and the multi point mortise lock box is not included. You need to either reuse the multi point lock already in the door or source one separately that matches Door Configuration #5 with the cylinder below the handle and a 3-5/8 inch center-to-center between cylinder and spindle.
2) What is Emtek Door Configuration #5 and how do I know my patio door matches it?
Configuration #5 on Emtek multi point trim means the plate is drilled for a euro profile cylinder positioned below the handle, with 3-5/8 inches center-to-center from that cylinder to the handle spindle. Pull your existing handle set off and measure from the middle of the cylinder to the middle of the spindle hole. If it comes out at 3-5/8 inches with the cylinder low, the 1553 matches your prep. Configuration also has to line up with the existing 1-1/2 by 11 inch plate footprint on the door face.
3) Will the Emtek 1553 fit my Therma-Tru or Kolbe swinging patio door?
Those brands are among the door manufacturers Emtek references for this multi point trim, along with Crestline, Hoppe, Hurd, KFV, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. Brand alone doesn't settle it, though. The deciding factor is whether the door's existing prep is Configuration #5 with a 3-5/8 inch center-to-center and the euro cylinder below the handle.
4) Can I key the Emtek 1553 to match the rest of my house?
No. The 1553 is the non-keyed version, with an American style thumbturn on the inside and no key cylinder supplied. If you need the patio door keyed from outside, you want the keyed version of this trim instead, which takes a euro profile cylinder. The 1553 suits a door where the deadbolting is thrown by the inside thumbturn only.
5) Do I have to specify handing when I order Emtek multi point lock trim?
Yes, handing is required. The 1553 is ordered as right hand or left hand and it isn't field reversible, so getting it wrong means a return. Determine handing from the outside of the door, standing where you'd insert a key, based on which side the hinges fall.
6) Which lever styles can I get on the Emtek 1553 sandcast bronze trim?
The lever is chosen at order time from ten sandcast bronze styles: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Any sandcast bronze lever in the range can be paired with the plates, so you can match levers already used on interior doors in the same collection.
7) Will this Emtek handle set fix a sagging patio door lever?
That's exactly what the spring assist addresses. Emtek multi point lock trim now ships with a spring assist that returns the lever to the neutral horizontal position, which is the usual cure for droopy handles on a heavy patio door where the lock body's own spring has given up. If the sag is coming from the multi point lock gearbox itself rather than the trim, replacing the trim alone won't solve it, since the lock box isn't part of this set.
8) Is the Emtek 1553 suitable for a commercial entrance or apartment building door?
It's classified residential. The 1553 is swinging patio door hardware for houses and residential units, not a commercial-rated entry set. For a commercial opening with traffic and code requirements, you'd be looking at a graded mortise or cylindrical lockset instead of residential multi point patio trim.
9) Do I need to give a door thickness when ordering the Emtek 1553?
There's a door thickness field on the order and it's worth filling in. The spindle and the mounting screws have to span your actual door, and multi point patio doors vary in thickness more than standard interior doors. Measure the leaf at the lock edge and enter that figure so the trim is supplied with the right spindle length.
10) What size are the Emtek 1553 plates and will they cover my old handle's marks?
The rectangular plates measure 1-1/2 by 11 inches. That's a narrow, tall escutcheon typical of euro-style multi point trim, so it covers the vertical run of the old prep but very little side to side. If your previous set used a wider plate, expect finish marks on the door face to show at the edges.
11) Is the Emtek 1553 an electronic or smart lock?
No, it's purely mechanical trim. There's no electronics, no keypad and no power requirement. Operation is the lever plus an American style thumbturn on the interior side.
