Emtek 1374 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

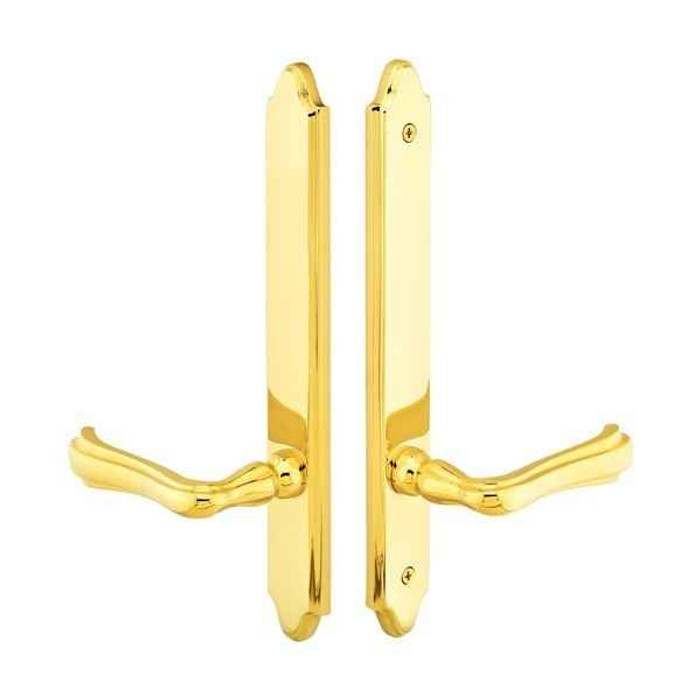

Emtek Emtek 1374 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1374

Emtek 1374 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1374-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1374 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1374
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1374-US15 – Frequently Asked Questions

1) Does the Emtek 1374 multi point trim include the multi point lock mechanism?
No. The 1374 Concord trim set is plates and handles only. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it.
2) What does Door Configuration #3 mean on the Emtek 1374 trim?
Configuration #3 is the non-keyed setup for a semi-active door: a fixed (dummy) handle on the exterior and an operating lever on the interior that retracts the latch. It is the leaf of a French or patio pair that stays shut most of the time while the active leaf carries the keyed trim.
3) Will the Emtek 1374 trim line up with my existing multi point lock prep?
The critical number is the 4-1/8 inch center-to-center between the handle spindle and the cylinder hole, with the cylinder position above the handle. If your multi point lock box uses that 4-1/8 inch CTC and American cylinder classification, the Concord plate will land on the existing prep.
4) Do I have to specify handing when ordering the Emtek 1374?
Yes, handing is required: right hand or left hand. Since the outside handle is fixed and only the inside lever operates, ordering the wrong hand puts the lever throw on the wrong side.
5) Will the Emtek 1374 work on an Andersen patio door?
Andersen is the referenced door manufacturer for this multi point trim, so it is built around that hardware prep. Confirm your lock box runs the 4-1/8 inch handle-to-cylinder spacing before ordering.
6) How big are the plates on the Emtek Concord multi point trim, and will they cover an old plate footprint?
The Concord plates measure 1-1/2 x 11 inches. That is a slim escutcheon, so it will not hide a wider plate cutout, but it suits narrow patio and French door stiles.
7) Can I pick my own lever style with the Emtek 1374 trim?
Yes. The lever choice is a required selection and covers the full brass lever range, from the L-Square, T-Bar and R-Bar families (Faceted, Hammered, Knurled, Tribeca, Straight Knurled, White Marble) through named levers like Athena, Luzern, Poseidon, Milano, Rope, Rustic, Santa Fe and Hammered.
8) Do I need to give a door thickness when ordering this Emtek multi point trim?
There is an optional door thickness entry on the order. Supply it if your patio or French door is anything other than the common thickness, since the spindle and through-bolt length is set by it.
9) Is this Emtek trim suitable for a commercial opening?
It is classed residential. For apartment or hotel unit entries and single-family swinging patio doors it is the right category; for a commercial entrance under a hardware schedule, specify a commercial-rated device instead.
10) What finishes does the Emtek 1374 Concord trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Matching the active leaf and the rest of the openings is the usual reason to standardize on one code.
11) Will the lever on this Emtek multi point trim sag over time?
Emtek builds a spring assist into the multi point lock trim, which returns the lever to neutral and is there specifically to stop handle sag on the operating side.
12) What is the Emtek 1374 trim made of?
Solid brass, both plates and handles, and it sits in Emtek's Brass collection, which is why the full brass lever range is available with it.
