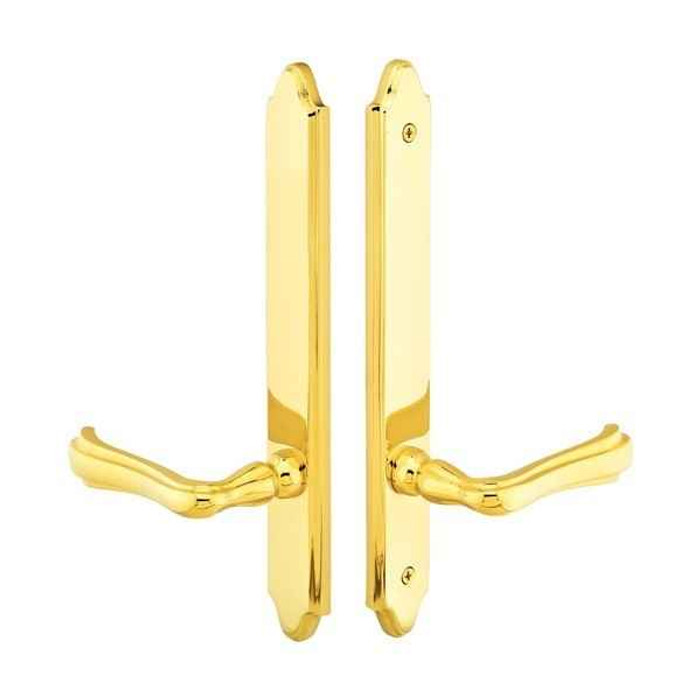

Emtek Emtek 1474 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1474

Emtek 1474 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1474-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1474 Multi Point Lock Trim (Door Config #4) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1474
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1474-US15 – Frequently Asked Questions

1) Will the Emtek 1474 trim work on my Marvin patio door multipoint lock?
The 1474 Concord trim is built for the common swinging patio door multipoint systems, and Emtek references it against Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield doors. The number to check on your door is the center-to-center spacing between the cylinder hole and the spindle: this trim is drilled at 3-5/8 inches, and it is a Door Configuration #4 trim. If your existing plate measures a different center-to-center, a different Emtek configuration is the one you want.
2) Does the Emtek 1474 multi point trim include the mortise lock body?
No. The 1474 is trim only: plates and handles. The multipoint mortise lock box that drives the rods has to be ordered separately, or reused if the one in your door is sound. Buyers replacing worn or dated hardware on an existing patio door usually only need the trim, since the lock body stays in the stile.
3) What does the Emtek 1474 semi-active door function actually do, and where does it go on a French door pair?
This is the inactive (semi-active) leaf trim of a French door pair. Outside you get a fixed handle that does not turn, purely something to pull on; inside you get an operating handle that throws and retracts the multipoint rods. There is no key cylinder in it. That means the semi-active leaf gets locked and unlocked from inside only, which is the normal arrangement: the active leaf carries the keyed trim, and this leaf stays secured until someone opens it from the interior.
4) I need keyed entry on my patio door. Is the Emtek 1474 the right trim?
Not on the door you unlock from outside. The 1474 has no cylinder in it, so there is no way to key the exterior side. Use it on the semi-active leaf of a pair and order a keyed Emtek multipoint trim in the same Concord style and finish for the active leaf. On the keyed trims in this family the cylinder sits above the handle, so the two plates line up visually across the pair.
5) What do I have to specify when ordering Emtek 1474 Concord trim?
Four things. Handing, right or left, which is required and not field-reversible on the order form. Lever style, also required, with 51 Emtek levers to choose from including the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus the classic patterns like Cortina, Milano, Rope, Wembley and Arts and Crafts. Finish, from eight options. And your door thickness, which is an optional entry but worth giving so the spindle and screw pack suit the door.
6) Will the Emtek 1474 plate cover the marks left by my old patio door hardware?
The Concord plate measures 1-1/2 x 11 inches. That is a narrow plate, so it will sit inside the stile on most patio and French doors but it will not hide a wider footprint left by a previous escutcheon. Hold a 1-1/2 by 11 inch rectangle over the existing marks before you commit. If your old plate was wider, look at an Emtek Concord or other Emtek multipoint plate in a larger size rather than filling and refinishing the stile.
7) Do Emtek 1474 levers sag over time like older multipoint handles?
Spring assist is built into every one of these multipoint trims now. It returns the lever to horizontal after each use, which is what stops the drooping handle you see on older patio door sets where the lock body spring has given up. If you are replacing a sagging handle, the trim itself carries the return, so you are not depending on a tired mortise box to hold the lever level.
8) What finishes does the Emtek Concord multipoint trim come in, and will it match my other Emtek door hardware?
Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). These are Emtek's standard brass-collection finish codes, so a US15 patio trim matches US15 Emtek interior levers and knobs across the house. Unlacquered brass is the one to think about: it has no clear coat and will patina outdoors, which some buyers want and some do not.
9) Can I use Emtek 1474 multipoint trim on a commercial building entrance?
It is a residential product. Emtek classes this Concord multipoint trim as residential, and it carries no commercial cycle grading, so for a leasing office door, a clubhouse, or any opening on a commercial egress path a property manager should be specifying commercial-grade hardware instead. Where it does belong in a managed portfolio is unit-level patio and French doors in apartments, condos and single-family rentals.
10) Is the Emtek 1474 trim solid brass or plated zinc?
Solid brass, both the substrate and the finished material, in the Concord plate and the plate hardware. That matters on an exterior patio door where a plated pot metal plate corrodes at the screw holes. The lever you pair with it is ordered separately from the brass lever range.
11) Is the Emtek 1474 an electronic or smart lock trim?
Purely mechanical. There is no electronic option on the 1474, no motor and no wiring in the trim, so it does not need power at the door or a harness through the hinge. The inside lever throws the multipoint rods by hand.
