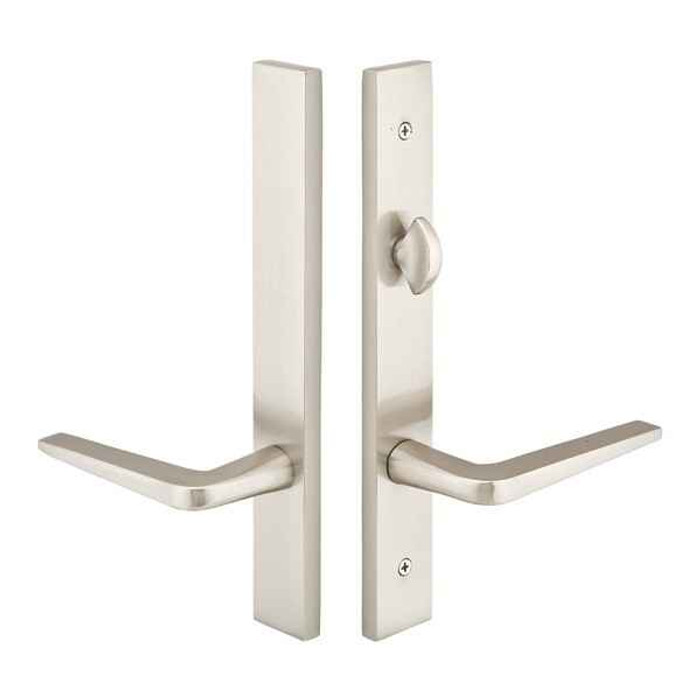

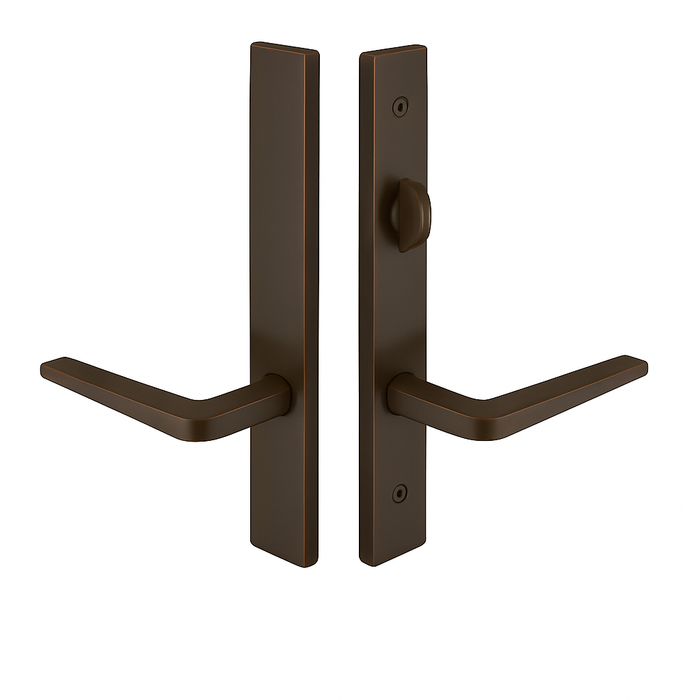

Emtek 13A3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

Emtek 13A3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 13A3-US19
From the Brass Collection
$374.00
$348.02
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$348.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 13A3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
13A3
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 13A3-US19 – Frequently Asked Questions

1) Will the Emtek 13A3 multi point trim fit my Andersen patio door?
The 13A3 trim is built for Configuration #3 multi point openings and Andersen is the referenced door manufacturer. The deciding number is the center-to-center: 4-1/8 inches between the handle and the cylinder position above it. Measure the spacing on your existing mortise lock before ordering. If your door does not measure 4-1/8 inch CTC in Config #3, this trim will not line up with the lock's spindle and cylinder holes.
2) Does the Emtek 13A3 come with the multi point lock, or do I need to buy that separately?
Trim only. The 13A3 set includes the interior and exterior plates and the handles; the multi point mortise lock box is not included. If you are building a new opening rather than replacing worn hardware, you need the lock body from the door manufacturer as well. On a retrofit where the existing multi point lock is still good, the trim alone is what you order.
3) Is the Emtek 13A3 keyed, and how does it lock?
Non-keyed. The 13A3 has a thumbturn on the inside and no cylinder, so it throws and retracts the multi point lock from indoors only. That suits an in-swing patio door that is not a primary entry, or one where the keyed egress point is elsewhere. If you need to lock it from outside with a key, you want a keyed Config #3 trim instead, which takes an American style cylinder in the position above the handle.
4) Do I have to specify handing on the Emtek 13A3 patio door trim?
Handing is required at order. The 13A3 is built right hand or left hand, and it is not field reversible on the order form, so determine it standing outside the door looking in and pick the side the hinges are on accordingly. Getting it wrong on a patio door means the lever and thumbturn end up oriented against the swing.
5) What do I have to pick when ordering the Emtek 13A3 besides the finish?
Three choices go on the order: lever style, handing, and door thickness. Lever style is required and there are 51 brass levers offered, from the modern L-Square, T-Bar, and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled, and White Marble, through Athena, Helios, Hermes, Poseidon, and Stuttgart, to traditional patterns like Rope, Ribbon and Reed, Rustic, Santa Fe, and Arts and Crafts. Handing is required. Door thickness is a free text entry, so measure your slab and state it.
6) What finishes does the Emtek 13A3 Modern trim come in?
Seven, all on solid brass plates: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Because the plates are brass rather than a plated zinc, the Unlacquered Brass option will patina with handling and weather, which is what you want if the rest of the openings are living finish, and not what you want if you are matching a fixed satin nickel fleet.
7) How much stile do I need for the Emtek 13A3 plate?
The plate measures 1-1/2 x 11 inches, so the narrow dimension is what has to sit on the lock stile of the patio door panel. On a typical swinging patio door with a wide bottom rail and a slim lock stile, that 1-1/2 inch plate width is the check to make before ordering, along with clearance for the glass stop.
8) Will the Emtek 13A3 stop my patio door handles from sagging?
Yes, the trim includes a spring assist that returns the lever to neutral. Sagging levers are the usual complaint on multi point patio doors, because the long lever arm and the lift-to-lock motion wear the lock's own return spring. The spring assist lives in the trim rather than relying on the mortise lock, so a set that has drooped can be brought back by replacing the trim alone.
9) Is the Emtek 13A3 trim rated for a commercial building or is it residential hardware?
Residential. The 13A3 is swinging patio door hardware for houses and multi-family units, not a commercial-duty lockset. For a leasing office entrance or any opening on a means of egress path in a commercial facility, this is the wrong family of product and you want a commercial mortise or cylindrical lock instead.
10) Can I match the Emtek 13A3 patio trim to the interior levers on the rest of the house?
Yes, within the brass line. The 13A3 accepts any Emtek brass lever, and the 51 lever patterns offered here run the same designs Emtek uses on its interior sets, so a house standardized on Milano, Coventry, or the knurled L-Square bars can carry that lever straight onto the patio door in the same finish. The plate itself is the Modern style, a plain rectangle, which is the one that sits quietly under whichever lever you choose.
11) Is the Emtek 13A3 a smart lock or does it take a keypad?
Purely mechanical. There is no electronic option on the 13A3 and no keypad or motor drive, and with the non-keyed thumbturn function there is no cylinder either. If you want keyless entry on a multi point patio door, this is not the trim to start from.
