Emtek Emtek 14A3 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-14A3

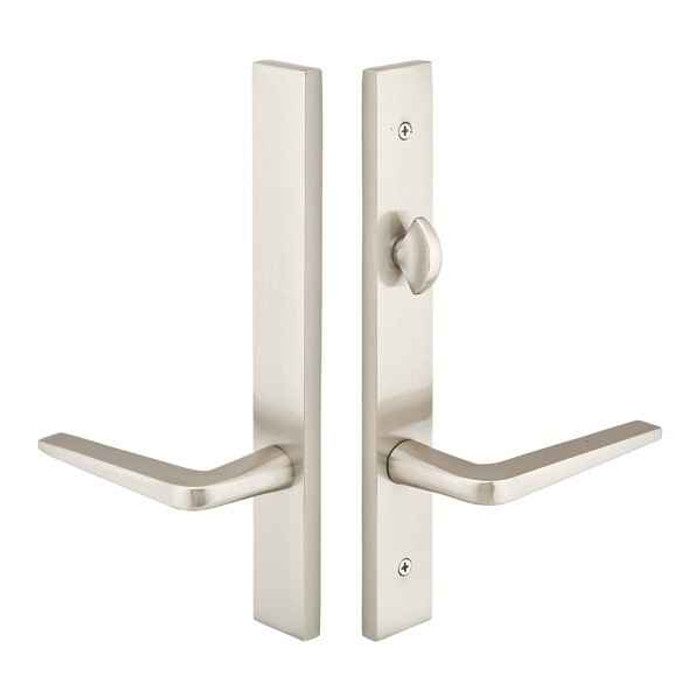

Emtek 14A3 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 14A3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 14A3 Multi Point Lock Trim (Door Config #4) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
14A3
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 14A3-US19 – Frequently Asked Questions

1) Which patio door brands does the Emtek 14A3 Config #4 trim fit?
Emtek references Config #4 trim against doors from Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield. Match the door's existing hole pattern to the 3-5/8 inch center-to-center and the cylinder position above the handle before ordering.
2) What does Door Configuration #4 mean on Emtek multi point trim, and how do I know it is the one I need?
Configuration refers to the spacing and layout of the holes through the door: on Config #4 the cylinder prep sits above the handle and the handle-to-cylinder center-to-center is 3-5/8 inches. Measure from the center of the existing handle hub to the center of the cylinder hole on your door. If that comes out at 3-5/8 inches with the cylinder up top, Config #4 is your pattern. A different spacing means a different configuration, not this trim.
3) Is the Emtek 14A3 keyed, and what operates it from inside?
The 14A3 is the non-keyed version. There is no key cylinder in the exterior plate; inside you get an American style thumbturn that throws and retracts the multi point lock. Use it on a patio door you do not need to lock from the outside with a key, a rear yard or pool door, for instance. If you need outside key access, the keyed version of this trim is the one to order instead.
4) Do I have to specify handing on the Emtek 14A3 trim?
Yes, handing is required, right hand or left hand. Stand outside the door: if the hinges are on your right and it swings away from you, it is right hand. Get it wrong and the lever and thumbturn end up oriented backwards on the door. Lever style is also a required choice on this trim, and door thickness can be entered when you order.
5) What levers can I use with the Emtek 14A3 multi point trim?
Any Emtek brass lever pairs with this trim, and the lever choice is required at order. The range runs from the modern Square and Bar families (L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble) through the cast series, Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer and Triton, and the traditional shapes such as Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered.
6) How big are the plates on the Emtek 14A3, and will they cover the old hardware's marks?
The plates measure 1-1/2 by 11 inches in the Modern profile, a narrow rectangular escutcheon. That covers a tall, slim footprint on the stile but only an inch and a half of width, so if the previous handle set left a wider plate outline or paint shadow, this one will not hide it. Check the stile is wide enough to take an 11 inch plate cleanly above and below the handle.
7) What finishes does the Emtek 14A3 Modern trim come in?
Seven, and they are the standard Emtek brass finishes so the trim can be matched to interior levers and door hardware elsewhere in the house: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass will patina with exposure, which matters on an exterior patio door.
8) Do Emtek multi point patio levers sag over time?
Each of these multi point trim sets now ships with the Spring Assist function, which returns the lever to neutral and stops the droop that shows up on long lever handles after a few years of use. That was a common complaint on older patio trim and it is handled in the current production.
9) Is the Emtek 14A3 solid brass, and does it hold up outdoors?
Brass, both the material and the substrate, in the Emtek Brass collection. Brass is the standard exterior door hardware substrate for corrosion resistance. Finish choice does more for weathering than the base metal here: plated finishes such as Polished Chrome and Satin Nickel hold their appearance, while Unlacquered Brass is intentionally left bare to develop a living patina.
10) Is the Emtek 14A3 an electronic or smart lock?
No, it is fully mechanical trim. There is no keypad, no motor and no wiring, the thumbturn inside drives the multi point lock directly. If you are specifying a connected entry for a rental or a managed property, this is not the product for that opening.
