Emtek 13B5 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Dummy Pair

No. The 13B5 is trim only: you get the two 2 x 10 inch brass plates and the handles. The multi point mortise lock box is not included, and since this is the Dummy pair it does not operate a lock at all. Order the lock body separately if the door needs one.

It is non-functional hardware. A dummy pair gives you handles and plates on both faces of a swinging patio door for pulling and for looks, with no latch, no cylinder, and no keying. It is not keyed and has no electronics. Use it on the inactive leaf of a pair, or where the door is held by other means.

It covers 1-3/8 to 1-3/4 inch doors, which spans standard residential patio door thicknesses. Mounting is surface mount, so no door prep is required. There is a Door Thickness field on the order so you can state your exact measurement.

Emtek codes its multi point trims by configuration so the plate holes line up with the lock body already in the door. The 13B5 is Config #3: the cylinder opening sits above the handle, with 4-1/8 inch center-to-center between the cylinder and handle, and an American cylinder profile prep. Measure that cylinder-to-handle dimension on your existing trim. If it is not 4-1/8 inches with the cylinder above the handle, you need a different configuration.

Yes, handing is a required selection, right hand or left hand. Even though a dummy pair does not latch, the lever and plate orientation is handed so the hardware sits correctly on the swing. Get it wrong and the levers point the wrong way.

Andersen is the referenced door manufacturer for this multi point trim. The 13B5 Config #3 layout is built around that style of multi point door. Confirm your door's cylinder-above-handle position and 4-1/8 inch center-to-center before ordering.

Lever style is a required choice and the list is long: the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast levers including Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton, Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts, and Hammered. Any brass lever can be ordered with these plates.

Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Unlacquered Brass is a living finish and will patina with handling, so pick it only if you want that change. For matching adjacent openings, note the US number on the hardware already installed.

The plates and handles are brass, both material and substrate, from Emtek's Brass collection. It is specified for residential use, so for a commercial entrance under heavy daily traffic you want a Grade 1 or Grade 2 commercial lockset instead.

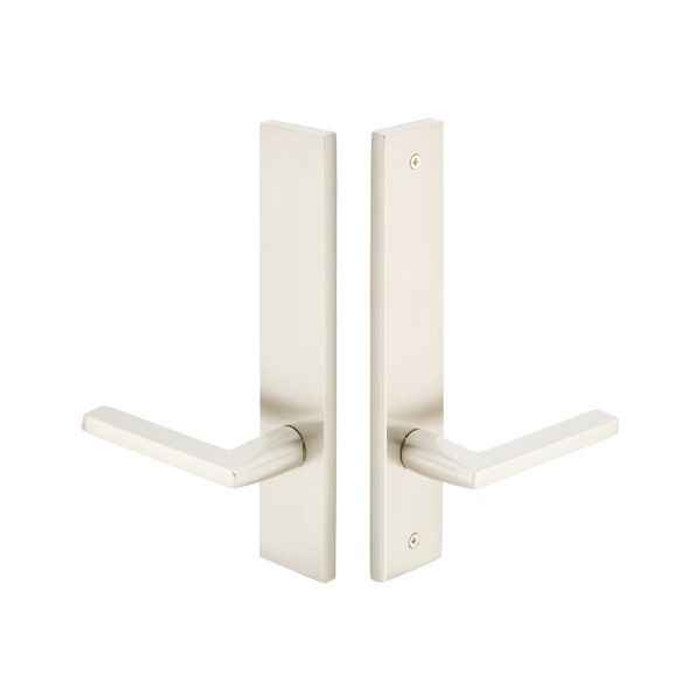

The 13B5 is Emtek's Modern style in a contemporary theme, a clean rectangular 2 inch by 10 inch plate. Paired with the square-section L-Square, T-Bar or R-Bar levers it stays squared off; the cast levers such as Rustic or Santa Fe pull it toward a traditional look on the same plate.
