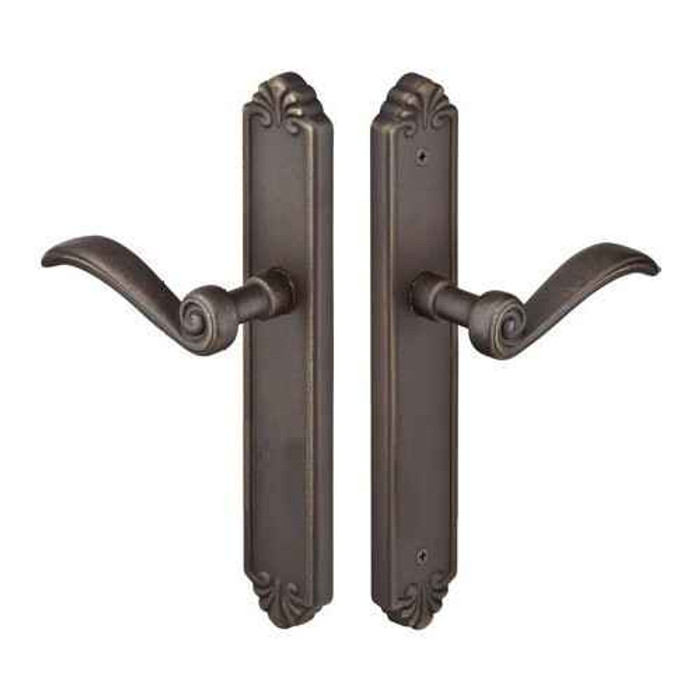

Emtek Emtek 1642 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage EMTEK-1642

Emtek 1642 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1642-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1642 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Passage

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1642
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1642-MB – Frequently Asked Questions

1) Does the Emtek 1642 multi point trim include the lock body, or do I need to order the mortise lock separately?
Trim only. The Emtek 1642 set includes the plates and handles, but the multi point mortise lock box is not included. You will need the multi point lock body from the door manufacturer or supplier separately, matched to Door Configuration #6.
2) What door thickness does the Emtek 1642 Tuscany trim fit, and what backset does it use?
It covers doors from 1-3/8 inch to 1-3/4 inch thick, with an adjustable backset of 2-3/8 inch or 2-3/4 inch and a 2-1/8 inch cross bore. Door thickness is a text field you fill in when ordering, so give the actual measured thickness of your patio door slab.
3) Will the Emtek 1642 trim fit my Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this trim, and it is built for swinging patio doors. The deciding factor is the door configuration: the 1642 is cut for Door Configuration #6, with the cylinder position below the handle and a 3-5/8 inch center-to-center between handle and cylinder holes. Match those hole locations on your door before ordering.
4) Does this Emtek passage trim come with a key cylinder or lock the door?
No. The 1642 is a non-keyed passage function, so it operates the latch and has no key cylinder. If you need a keyed entry on the same opening, choose a keyed version of the multi point trim instead. The plate is prepped for an American-classification cylinder positioned below the handle, so keyed siblings in the family use that cylinder type.
5) Do I have to specify handing on the Emtek 1642 multi point trim?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH) at order time, along with the lever style. Stand outside the door: if the hinges are on your right, it is right hand. Order the wrong hand and the lever and cylinder orientation will not match the opening.
6) Which levers can I use with the Emtek 1642 Tuscany bronze plates?
Four lever styles are offered with the trim: Medici (MD), Napoli (NA), Octagon (OCL), and Padua (PD). More broadly, the 1642 plates accept any Emtek Lost Wax Cast Bronze lever from the Tuscany bronze range, so you can match levers already used elsewhere in the house.
7) How big are the Emtek 1642 escutcheon plates, and will they cover my existing holes?
The Tuscany style plates measure 2 x 10-1/2 inches. With a 2-1/8 inch cross bore and 3-5/8 inch handle-to-cylinder spacing, they cover a standard multi point prep of that layout. On a narrow patio door stile, check that you have at least 2 inches of face width plus clearance to the glass stop.
8) Is the Emtek 1642 multi point trim suitable for a commercial building?
It is a residential product. The 1642 is swinging patio door hardware for homes, non-keyed passage function, and carries no commercial durability grade. For an apartment or hotel exit door under commercial traffic, specify commercial-rated hardware instead.
9) Do Emtek multi point levers sag over time?
The 1642 trim includes a spring assist that returns the lever to the neutral horizontal position, which is what prevents the drooping handle common on heavier patio door levers. It is built into the trim, no separate part to order.
10) What latch faceplate corner style does the Emtek 1642 use?
Round or square corner faceplates are covered, so the latch can be matched to an existing mortise in the door edge without recutting. Match whichever shape your current faceplate mortise has.
