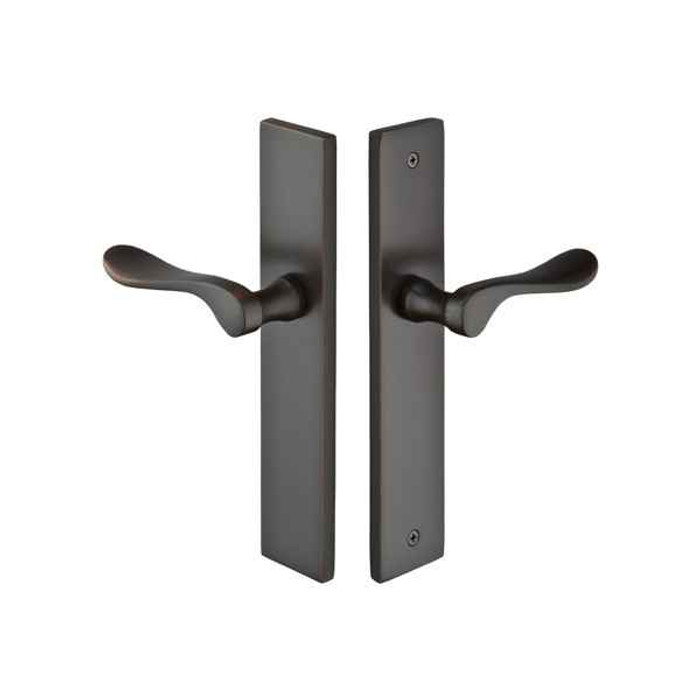

Emtek 16B5 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Dummy Pair

Dummy means the handles are fixed. Nothing turns, nothing retracts, there is no latch action and no key. The 16B5 is a dummy pair, so a set goes on the inactive leaf of a French or patio door pair, or on a door where the multi point lock is operated somewhere else. If you need the trim to actually drive a multi point lock, dummy is the wrong function.

No door prep for the trim itself. The 16B5 plates are surface mount, so on a door already prepped for a multi point lock you are mounting to the face rather than cutting new pockets. That is what makes it a straightforward swap on an existing patio door.

Measure the existing hardware. The 16B5 is Emtek door configuration #6, with 3-5/8 inch center-to-center between the handle and the cylinder hole, and the cylinder sits below the handle. If your slab's existing prep does not match that spacing and that cylinder position, a different Emtek configuration number is the one you want.

Milgard and Pella are the reference door manufacturers for this configuration. The 16B5 is built around Emtek door config #6 at 3-5/8 inch center-to-center, so match your door's existing hole spacing to that before ordering rather than going on brand alone.

Yes, handing is required, right hand or left hand. Even though a dummy set does not latch, the plate is cut for a cylinder position below the handle and the lever orientation follows the door swing, so the wrong hand puts the cylinder cutout on the wrong end of the plate.

The plates measure 2 x 10 inches in the Modern style, solid brass, with a contemporary square-edged look. If you are replacing older trim, check that footprint against the wear pattern or paint line on the door face so the new plate covers what the old one did.

Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass is the one to note if you are matching a fleet of doors, since it will patina over time rather than holding the as-shipped color.

Any Emtek brass lever can be ordered with the 16B5 trim, and lever style is a required choice at order. That runs from the Modern L-Square, T-Bar and R-Bar families in faceted, hammered, knurled, Tribeca, straight knurled and white marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional patterns like Rope, Ribbon and Reed, Rustic, Santa Fe, Wembley and Arts and Crafts. Pick the same lever you are using on the interior doors and the patio opening reads as part of the same set.

The 16B5 is a dummy pair, so it is not keyed and no cylinder is supplied with it. The configuration is built around an American standard cylinder sitting below the handle, which is what tells you the keyed version of the same door config takes a mortise cylinder rather than a euro profile.

It is a residential product. For apartment or condo patio doors in a multi-family building it is a normal fit, but for a commercial opening on a spec that calls for graded hardware, a mechanical lockset built for commercial duty is the direction to go instead of residential patio trim.

Purely mechanical. There is no electronics in the 16B5, no motor, no wiring and no access control, so nothing needs power run to the door and nothing stops working when the batteries or the power do.
