Emtek 1746 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

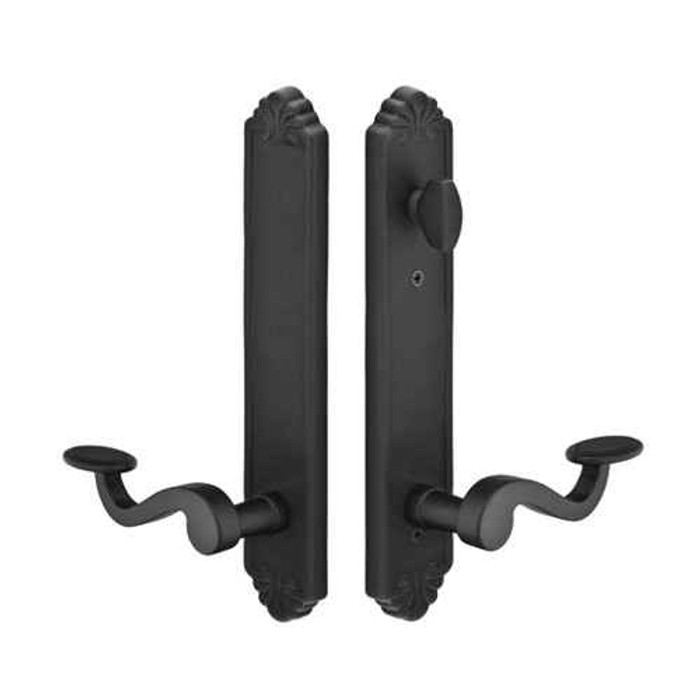

Emtek Emtek 1746 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside, Fixed Handles EMTEK-1746

Emtek 1746 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside, Fixed Handles

(No reviews yet) Write a Review

Model: 1746-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 1.5" x 11"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1746 Multi Point Lock Trim (Door Config #7) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside, Fixed Handles

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1746
(CTC) Center-to-Center:
6"
Product Function:
Non-Keyed American Style Thumbturn Inside, Fixed Handles
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1746-MB – Frequently Asked Questions

1) Does the Emtek 1746 multi point trim include the mortise lock body, or is it just the plates and handles?
Trim only. The Emtek 1746 set includes the plates and handles, and the multi point mortise lock box is not included. If you are replacing hardware on an existing swinging patio door, the gearbox already in the door stays; if it is a new door, the multi point lock has to come from the door manufacturer or be ordered separately.
2) What does Door Configuration #7 mean on Emtek multi point trim?
Configuration #7 describes the layout of the plate: American style cylinder prep positioned above the handle on the outside, and a thumbturn on the inside instead of a key cylinder. The 1746 is a non-keyed set, so the inside is operated by thumbturn. Your door's existing prep has to match that configuration, cylinder above handle, or the holes won't line up.
3) What plate size and handle center-to-center does the Emtek Tuscany 1746 trim use?
The plates measure 1-1/2 by 11 inches with a 6 inch center-to-center. That CTC is the spacing between the handle and the cylinder or thumbturn, and it is the number to check against the prep in your door before ordering.
4) Do I have to specify handing for the Emtek 1746 trim?
Yes, handing is required, right hand or left hand. Multi point trim is handed because the thumbturn and cylinder positions are fixed relative to the latch side. Stand outside the door: if the hinges are on your right it is right hand.
5) Are the handles on the Emtek 1746 fixed or do they retract the latches?
Fixed handles. The lever on this set does not operate the multi point latches; it is a pull. Locking and unlocking is done by the thumbturn on the inside and the American cylinder above the handle on the outside. If you want the handle to throw and retract the multi point latches, you need an active-handle (operating) trim configuration instead.
6) What lever styles and finishes can I get with the Emtek 1746 Tuscany bronze trim?
Lever choice is required at order and covers four Tuscany bronze levers: Medici, Napoli, Octagon, and Padua. Finish comes in Flat Black Bronze (FB) or Medium Bronze (MB). Any Lost Wax Cast Bronze Tuscany lever can be paired with these plates, so you can match existing Tuscany trim elsewhere in the house.
7) Is the Emtek 1746 trim keyed, and does a cylinder come with it?
It is a non-keyed set. The inside is a thumbturn rather than a key cylinder, and the prep is for an American style cylinder. Bronze plates and handles are what ships, so any cylinder you need for the exterior side is a separate item.
8) Is this Emtek bronze multi point trim suitable for a commercial entry?
It is classified as residential hardware, made for swinging patio doors. Lost wax cast bronze holds up well outdoors and takes a living finish, but for a commercial opening with code-driven requirements you want a Grade 1 commercial lockset rather than residential patio door trim.
9) Do I need to give a door thickness when ordering the Emtek 1746?
Door thickness is an optional entry on the order, and it is worth filling in. Multi point spindles and cylinder lengths depend on the leaf thickness, so supplying the actual measurement of your patio door slab avoids a spindle that is short or long.
