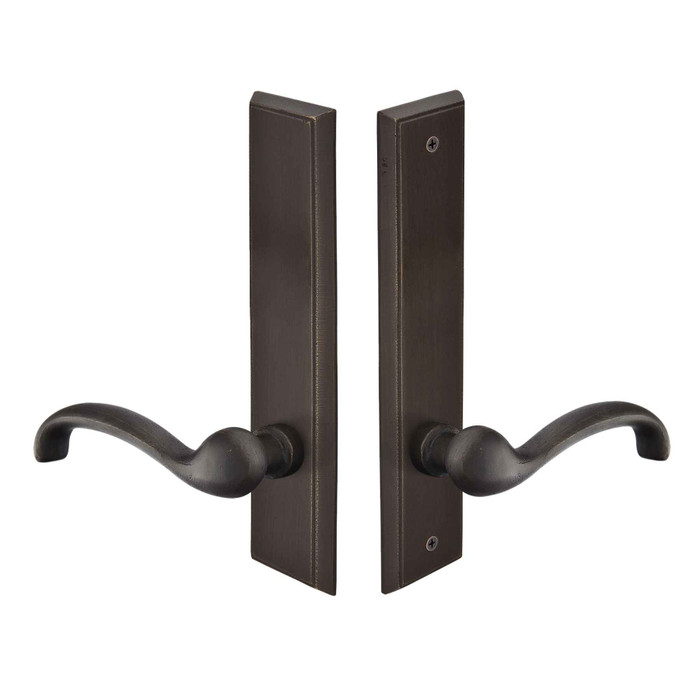

Emtek Emtek 1864 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1864

Emtek 1864 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1864-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1864 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1864
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1864-FB – Frequently Asked Questions

1) Does the Emtek 1864 multi point trim include the multi point lock mechanism?
No. The Emtek 1864 is trim only, the plates and handles. The multi point mortise lock box is a separate purchase, so you need the door's existing lock body or a new one ordered alongside it. Handing (right or left) and lever style are both specified at order time.
2) What does Door Configuration #8 mean on an Emtek multi point trim?
Configuration #8 is the non-keyed setup for a semi-active door: fixed handle on the outside, operating handle on the inside. Nothing turns from the exterior, which is what you want on the inactive or semi-active leaf of a swinging patio pair. If you need exterior key access on the active leaf, that is a different configuration.
3) Will the Emtek 1864 plate cover my existing multi point trim holes?
The plates measure 2 x 10 inches with 5-1/4 inch center-to-center spacing between the handle and the cylinder position above it. Measure your door's existing prep against that 5-1/4 inch CTC first, since the plate footprint is fixed and will not bridge a different spacing.
4) Which doors is this Emtek trim referenced for?
Neuma Doors is the referenced door manufacturer for the 1864 trim, so it is a common fit on Neuma swinging patio units running an Emtek multi point system. It is residential-rated hardware, not a commercial opening product.
5) Do I have to order a lever separately, and which levers work with it?
A lever style is required at order time and any Sandcast Bronze lever in the family works. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Each trim also comes with a spring assist that returns the lever to neutral so the handle does not sag over time.
6) There is a cylinder cutout in the plate but the function is non-keyed. What goes there?
The plate carries a cylinder position above the handle and takes an American standard cylinder classification, but the 1864 itself ships non-keyed for the semi-active leaf. On a pair, the keyed exterior trim goes on the active door; this one is the companion that operates from inside only.
7) Do I need to know my door thickness to order this trim?
Door thickness is an optional entry on the order, and giving it is the safer move on a patio door since spindle and screw lengths have to reach through the slab. Handing is mandatory, right or left, so confirm which way the door swings before ordering.
8) What finishes does the Emtek 1864 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All are sandcast bronze, so the castings carry variation from piece to piece, which is normal for the material and worth expecting if you are matching to other openings in the house.
9) Is the Emtek 1864 an electronic or smart lock trim?
Purely mechanical. No electronics, no wiring, no power. It is a lever trim set for a multi point mortise system, which means nothing to fail when the power drops.
