Emtek 1L1A12 Multi Point Lock ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$878.00
$702.40

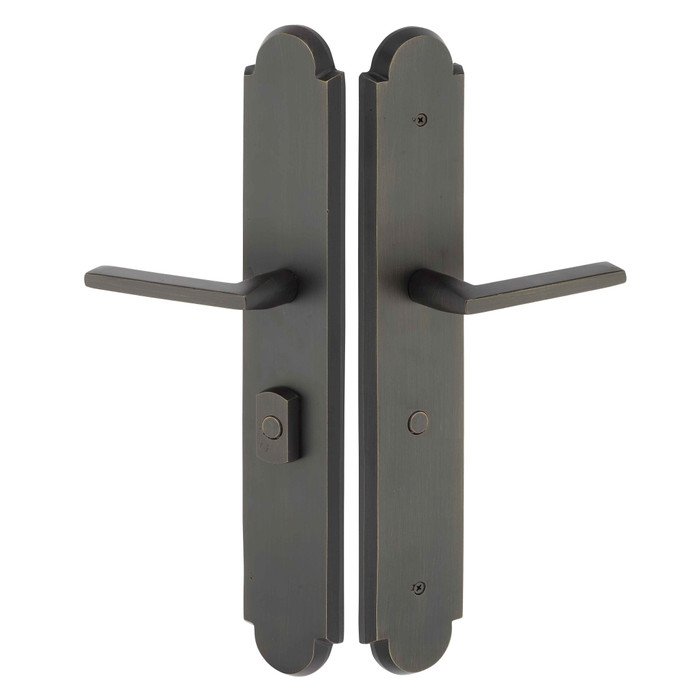

Emtek Emtek 1L1A12 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage EMTEK-1L1A12

Emtek 1L1A12 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1L1A12-FB
From the Sandcast Bronze Collection
$878.00
$702.40
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$878.00
$702.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1A12 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage


  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1L1A12
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
3" x 17.5"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1L1A12-FB – Frequently Asked Questions

1) Will the Emtek 1L1A12 trim fit a G-U multi point lock?
Yes, G-U is the reference door manufacturer for this trim, and it is built for the large multi point configuration with 3-5/8 inch center-to-center spacing between the handle and the cylinder hole. Match that CTC against the prep in your door before ordering.
2) Is the Emtek 1L1A12 passage set keyed, and why is there a keying option?
The 1L1A12 is a non-keyed passage function, so the handles simply operate the latch with no key cylinder in this set. The cylinder position on the plate sits below the handle and the classification is American, so if the opening needs to lock you want the keyed version of the same arched trim rather than this one.
3) Do I have to specify handing when ordering this Emtek multi point trim?
Yes, handing is a required choice, right hand or left hand. Multi point trim is handed because the lever and plate orientation follow the door swing, so getting it wrong means the set will not operate correctly on your opening.
4) How big are the plates on the Emtek arched sandcast bronze multi point trim?
Each plate measures 3 x 17.5 inches in the arched style. That is a tall backplate, so confirm your door stile is wide enough and that the existing prep or paint line will be covered before you swap trim.
5) Which lever styles can I put on the Emtek 1L1A12 arched plates?
Ten sandcast bronze levers pair with these arched plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is required at order time, and any Sandcast Bronze lever works with the set.
6) Will these levers sag over time like older multi point handles?
No. Emtek's current multi point lock trim includes a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older patio door sets.
7) Is the Emtek 1L1A12 suitable for a commercial entrance?
It is a residential product, intended for swinging patio doors in homes. For a commercial or institutional opening that needs a graded, code-rated entry device, this sandcast bronze patio trim is not the right choice.
8) What finishes does the Emtek 1L1A12 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All are part of Emtek's Sandcast Bronze collection, so they will match other sandcast bronze levers, knobs and accessories on the rest of the house in the same finish code.
9) Do I need to give a door thickness when I order the Emtek 1L1A12?
There is an optional door thickness entry on the order. Supplying it is worth doing on a non-standard slab, since the spindle and mounting length on multi point trim has to reach through the door to the gearbox.
10) Is the Emtek 1L1A12 an electronic or smart lock?
No, it is purely mechanical trim in cast bronze, with no electronics, no motor and no wiring. Lever operation only.
