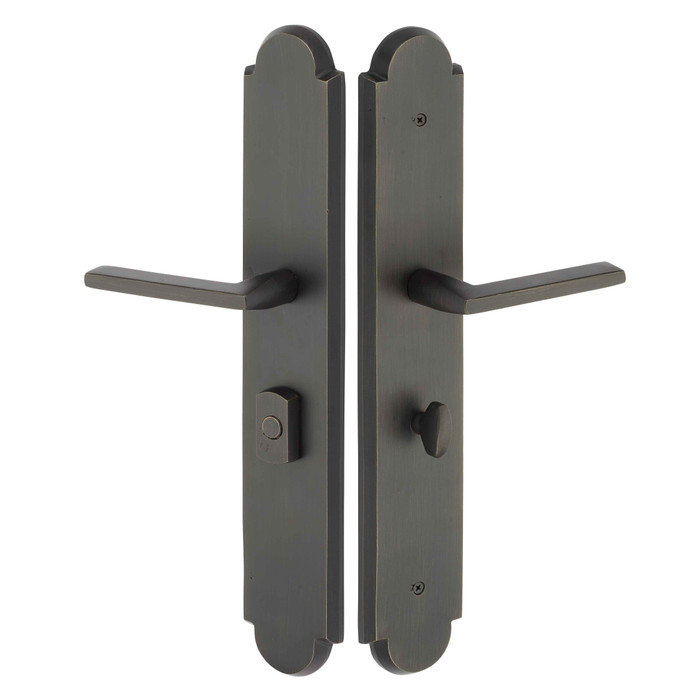

Emtek 1L1A13 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed American Style Thumbturn Inside
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek LookBook
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Sandcast Bronze
- Cylinder Position:
- Below Handle
- Door Configuration:
- Large Multi Point
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- G-U
- Series:
- Arched
- Theme:
- Rustic Living
- MAP Policy:
- Yes
- Product Model:
- 1L1A13
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed American Style Thumbturn Inside
- Product Size:
- 3" x 17.5"
- Cylinder Classification:
- American
- Product Style:
- Arched
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1L1A13-FB – Frequently Asked Questions
1) Does the Emtek 1L1A13 multi point entry set include the multi point mortise lock body?
No. The 1L1A13 is trim only, meaning the interior and exterior plates and the handles. The multi point mortise lock box has to be sourced separately, and it needs to be the lock the door was built around. Order the trim to match the gear already in the door, not the other way round.
2) Which multi point lock gear does the Emtek 1L1A13 trim fit?
It is referenced to G-U multi point gear and uses a 3-5/8 inch center-to-center spacing between the handle and the cylinder hole. If the door's existing gear is G-U with that same 3-5/8 inch CTC, the plates line up. Measure the spacing on the door before ordering, since other multi point makers use different centers.
3) Is the 1L1A13 keyed, and what secures the door from inside?
There is no cylinder supplied with it, and the inside is an American style thumbturn rather than a keyed cylinder. Outside, the plate is prepped for an American style cylinder positioned below the handle, so you supply a mortise cylinder in the keyway you are keying the house to.
4) Do I have to specify handing on this Emtek arched entry set?
Yes, handing is required. You pick right hand or left hand when ordering, so establish the swing from the outside of the door first. A multi point trim cannot be flipped in the field the way a simple rosette set can.
5) How big are the plates on the Emtek 1L1A13, and will they fit my door stile?
The arched plates measure 3 x 17.5 inches. That is a large multi point configuration, so you need a stile wide enough to take a 3 inch plate without the edge running past the glass stop or the door edge. On a typical swinging patio or French door with a wide stile it sits fine; on a narrow stile door, check the 3 inch dimension against the flat area you have.
6) What finishes does the Emtek 1L1A13 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are Emtek's Sandcast Bronze collection, so they match other sandcast bronze pulls, levers, and knobs in the same finish elsewhere in the house. Bronze is a living finish, so pieces ordered at different times can vary slightly in tone.
7) Can I choose the lever style on this Emtek multi point trim?
Lever choice is required and there are ten sandcast bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Any sandcast bronze lever can be paired with these plates, so you can carry the same lever through the interior doors.
8) Will the lever sag over time on this multi point set?
Emtek includes a Spring Assist function in its multi point lock trim, which returns the lever to neutral and is there specifically to stop the handle drooping. That matters on multi point doors because the lever carries the load of lifting the whole locking gear.
9) Do I need to give the door thickness when ordering Emtek multi point trim?
There is a door thickness field on the order, and it is worth filling in. Multi point trim spindles and cylinder length depend on the slab thickness, so measure the door at the lock edge and note it. Most swinging patio and French door slabs run 1-3/4 inches.
10) Is the Emtek 1L1A13 suitable for a commercial entry?
It is classed as residential hardware, cast bronze, and intended for swinging patio door use. For a storefront, school, or other high-traffic commercial opening you want a graded commercial lockset instead; this set is aimed at homes and the rustic bronze look that goes with them.
