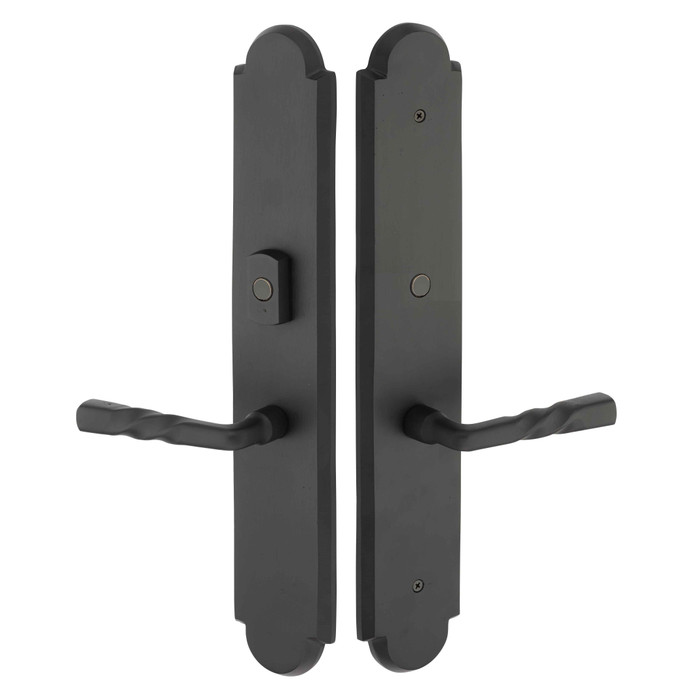

Emtek Emtek 1L1A22 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage EMTEK-1L1A22

Emtek 1L1A22 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1L1A22-FB
From the Sandcast Bronze Collection
$878.00
$702.40
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$878.00
$702.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1A22 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Passage


  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1L1A22
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
3" x 17.5"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1L1A22-FB – Frequently Asked Questions

1) Will Emtek 1L1A22 trim fit a G-U multi point lock?
G-U is the door manufacturer reference for this trim, and it is built to the large multi point configuration with a 3-5/8 inch center-to-center between the handle and the cylinder hole above it. Match those two things on your door prep and the plates land correctly.
2) Is the Emtek 1L1A22 keyed, and why is there still a cylinder hole in the plate?
Non-keyed passage function, so no cylinder and no locking. The plate is styled for the large multi point family where the cylinder sits above the handle, which is why the geometry carries a 3-5/8 inch center-to-center. If you need the door to lock, you want the keyed version of this plate, not this one.
3) What do I have to specify when ordering the Emtek 1L1A22 arched entry set?
Three things beyond the finish. Lever style, from ten sandcast bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma. Handing, right or left. And your door thickness, which is a write-in rather than a pick list. Finish is Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
4) Does handing matter on an Emtek multi point lock trim, or can I flip it on site?
Handing is fixed at order time, right hand or left hand, and it is not field reversible on this trim. Stand outside the door: if the hinges are on your right, it is right hand. Get it wrong and the lever and plate orientation will not match the swing.
5) How big are the plates on the Emtek 1L1A22 arched trim?
Each plate measures 3 x 17.5 inches in the arched style. On a narrow patio door stile, measure the flat face before committing, because 17.5 inches of plate length needs clear stile above and below the handle, and 3 inches of width has to sit inside the glazing bead.
6) What are the sagging handle problems with multi point trim, and does this Emtek set fix that?
Sagging levers are the usual complaint on multi point patio hardware, where the handle droops out of level over time. The 1L1A22 trim includes a spring assist that returns the lever to neutral and stops the sag, so the handle stays level without relying on the gearbox spring.
7) Is Emtek 1L1A22 sandcast bronze trim suitable for a commercial entry, or residential only?
Residential. It is sandcast bronze trim for swinging patio doors, part of the Sandcast Bronze collection, and it is not rated or intended for commercial traffic. For an institutional or high-traffic opening you want commercial-grade hardware instead.
8) If I need the patio door to lock with a key, is this the right Emtek trim?
Not this one. The 1L1A22 is non-keyed passage, latch and handle only. The keyed versions of Emtek's large multi point trim take an American-standard cylinder in the position above the handle, so you would order the keyed plate in the same arched style and finish to keep the pair matching on a double door.
9) Will Emtek sandcast bronze finishes match across other doors in the house?
The 1L1A22 comes in Flat Black Bronze, Medium Bronze and Tumbled White Bronze, all part of Emtek's Sandcast Bronze collection, so it matches other sandcast bronze levers and trim in the same finish code. Sandcast bronze is cast, not plated, so expect visible casting texture rather than the smooth face of a tubular lockset.
10) Can I use any Emtek sandcast bronze lever with the 1L1A22 plates?
Yes, any Emtek sandcast bronze lever pairs with these plates, and ten are offered directly with the set: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. That lets you carry one lever design through the patio door and the rest of the openings.
11) Is the Emtek 1L1A22 electronic or smart-lock compatible?
No, it is purely mechanical trim, no electronics and no wiring. The locking work is done by the separate multi point mortise lock box behind it, so any access control would have to come from that gearbox, not from these plates.
