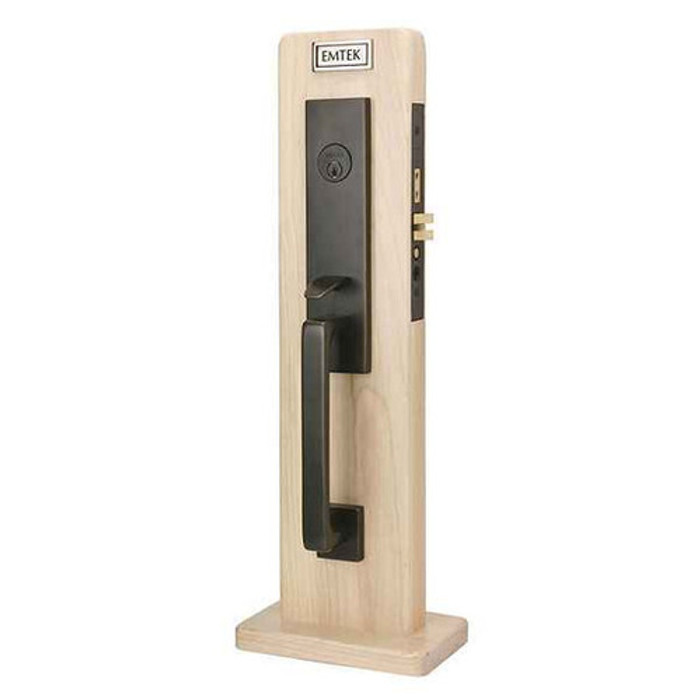

Emtek 3347 Mormont Mortise Entrance Handleset, Brass - Entryset

Emtek 3347 Mormont Mortise Entrance Handleset, Brass - Entryset

(No reviews yet) Write a Review

Model: F20-3347-75-RH-US26
From the Brass Collection
$1,081.00
$864.80
Selected Finish is
Selected Function is
Selected Backset is
Selected Handing is
Selected Knob or Lever Style for Inside Trim is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,081.00
$864.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 3347 Mormont Mortise Entrance Handleset - Entry Set 3347

  • Can be ordered with any Brass Knob or Lever for the inside trim
  • Sold as complete set. Includes Latch and Strike Plate
  • 2-1/2" or 2-3/4" Backsets
  • Standard Mortise Door Prep ANSI A115.1
  • UL Listed Mortise with ANSI F20 or F13 Function
  • Schlage C Keyway
  • Handing required for All Mortise Locks

NOTE: This Mortise Handleset is designed to be used with doors prepped for a Mortise Lock, these will NOT work with a standard tubular latch prepped door. Please see the measurements tab for more information on preparing your door for a mortise lock.

Keying Alike

  • Order multiple locks on your order re-keyed to the same code by indicating "Keyed Alike" next to applicable locks
  • Note: Locks must use the same keyway to be Keyed Alike (ex: locks using a Schlage C Keyway cannot use the same key as Kwikset)

Keying to Code

  • Order by indicating "Key Code XXXXX" next to applicable locks
  • If ordering multiple groups (houses) indicate "Keyed Alike Group #_" next to applicable locks in Key Code field for each lock

This Mortise Lock Handleset is available in 3 Functions:

Single Cylinder Mortise Sideplates are locked/unlocked with a key from the exterior and locked/unlocked from the inside of the home with a thumbturn.

  • The F20 Function Mortise box has buttons on the edge of the door that allow you to set the box to lock behind you as you leave the home, or another button to keep the door unlocked. This button setting is reset each time the door is locked.
  • The F13 Function Mortise Box does not have the buttons on the edge of the box. This set will only lock when activated with a key outside or thumbturn inside.

Dummy: If you have a double front door where one side is generally inactive while the other is always active, you will need a combination of two sideplate locks. For the active side, you'll need a single cylinder sideplate. For the inactive door, you'll want to order a dummy sideplate. This gives you the look of a complete working set, but doesn't have all of the mechanisms - perfect for an inactive door.


Emtek Mortise Handlesets include:

  • Large handleset for the exterior side of the door.
  • Interior lever or knob style and backplate for the interior side.
  • Mortise lock box with mounting hardware and faceplate.
  • Strike plate for door jamb.
  • Other required mounting screws or hardware.

Warranty

Emtek covers it's door hardware with a 5 yr finish and mechanical warranty. Living finishes are not covered under this warranty as they are designed to change over time. For more information see Emtek Door Hardware Warranty.

Returns

Emtek products are assembled per order so when they are returned the doorknobs have to be taken apart and restocked. As a result, there is a restocking fee on all Emtek products. If items are returned that have been installed, used or abused there may be a higher restock fee assessed or no credit issued. If you need to return an item, please repack the door hardware in it's original packaging to assure that it arrives undamaged. For more return information see our Returns Page. Before returning any Emtek Door Hardware, please contact us for a return authorization number.



Specifications:

  • Backset: 2-1/2" or 2-3/4"
  • Door Prep: Standard Mortise ANSI A115.1
  • UL Function: ANSI F20 or F13
  • Door Thickness: 1-3/4" standard (specify if thicker)
  • Keyway: Schlage C
  • Handing: Required – specify left or right
  • Fire Rating: UL 180 minute

Product Specs

Subcategory:
Mortise Entry Sets
Collection:
Brass
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Residential
Lock Type:
Mortise
Lock Function:
Entry
Series:
Mormont
Theme:
Contemporary
Electronic:
No
Keyed:
Yes
Handle Type:
Handleset
Keyed Function:
Single Cylinder
MAP Policy:
Yes
Product Model:
3347
Product Function:
Entry
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek F20-3347-75-RH-US26 – Frequently Asked Questions

1) What do I have to specify when ordering an Emtek 3347 Mormont mortise entry set?
Five things decide the part number on the Mormont 3347: handing (left or right, and in-swing or out-swing, since handing is required on all mortise locks), backset (2-1/2 or 2-3/4 inch), function (F20 Entrance or F13 Dormitory), finish, and the interior knob or lever style. Door thickness only needs calling out if the door is thicker than the 1-3/4 inch standard. Keying is specified separately as keyed different, keyed alike, or to a key code.
2) What is the difference between the F20 and F13 function on an Emtek mortise handleset?
The F20 mortise box has buttons on the edge of the door. One sets the lock to catch behind you as you leave, the other holds the door unlocked, and the setting resets each time the door is locked. The F13 box has no edge buttons at all, so it only locks by key from outside or thumbturn inside. If you want a front door that stays unlocked all day during a job or an open house, take the F20. If you want a door that can only ever be locked deliberately, take the F13.
3) Which backset do I need for the Emtek Mormont mortise lock, 2-1/2 or 2-3/4 inch?
Backset on the Mormont 3347 is set by the mortise pocket already cut in the door, measured from the door edge to the centerline of the knob or lever spindle. It comes in 2-1/2 and 2-3/4 inch. Measure the existing prep before ordering; a mortise lock body will not shift to the other backset once the pocket is routed.
4) Can I key the Emtek Mormont handleset to match my existing Schlage keys?
The 3347 uses a Schlage C keyway, so it can be keyed alike with other locks on the same keyway. Order multiple locks keyed alike by marking them as such, or give the existing key code to have them cut to it. Locks on a different keyway (Kwikset, for instance) cannot share a key with it no matter how they are cut.
5) How thick a door will the Emtek Mormont mortise handleset fit?
1-3/4 inch is the standard build for the 3347, which is the normal exterior door thickness. Thicker doors are handled by calling out the actual thickness when you order. If your door is a nominal 1-3/8 inch interior slab, this is the wrong set; a Deltana Montego handleset covers 1-3/8 to 2 inch, and the Pamex FS7P31 Lexington covers 1-3/8 to 1-3/4 inch.
6) How do I get the handing right on an Emtek mortise lock, and can it be changed after it ships?
Handing has to be specified up front on the 3347, and it is four choices, not two: left hand in-swing, left hand out-swing, right hand in-swing, right hand out-swing. Stand outside the door, note which side the hinges are on and which way the leaf swings. Order it wrong on a mortise lock and the latch bevel faces the wrong direction for the frame.
7) What is a mortise entry handleset alternative to the Emtek 3347 Mormont if I want a different exterior style on the same mortise door prep?
The Baldwin Estates 6542 Tremont Single Cylinder Entry Mortise Trim is the closest peer for a mortise-prepped opening. Like the Emtek 3347 Mormont, it is entry function mortise trim rather than a tubular set, so it goes on a door already routed for a mortise lock body. The Baldwin 6542 Tremont is listed for 1-3/4 inch doors; the Emtek 3347 Mormont is 1-3/4 inch standard with thicker doors available on request. The Emtek carries a Schlage C keyway and comes in 2-1/2 inch and 2-3/4 inch backsets with F20 entrance or F13 dormitory function.
8) My door is prepped for a tubular latch and bore, not a mortise pocket - what entry handleset should I order instead of the Emtek 3347 Mormont?
The Emtek 3347 Mormont requires a door routed to the standard mortise prep and will not drop into a bored, tubular-latch door. For a tubular-prepped opening, the Schlage Residential F60 Addison Single Cylinder Keyed Entry Handleset with Accent Lever is a Grade 2 entrance handleset for 1-3/8 inch to 1-3/4 inch doors, and the Weslock 2810 Hillcrest Single Cylinder Handleset with Hudson Knob covers 1-3/8 inch to 2 inch. Both are single-cylinder keyed entry sets like the Emtek, just on tubular door prep.
9) I have a double front door with one inactive leaf - what do I put on the inactive side?
The Emtek 3347 Mormont set uses a single cylinder sideplate on the active leaf and a dummy sideplate on the inactive leaf, so the pair matches visually while only the active side operates. If the doors are tubular-prepped rather than mortise, dummy handlesets in that construction include the Weslock 2815 Hillcrest Dummy Handleset with New Heaven Lever, rated for 1-3/8 inch to 2 inch doors, and the Weslock 6695 Belmont Dummy Handleset with Impresa Knob, also 1-3/8 inch to 2 inch.
10) Is the Schlage JE285 Barcelona handleset a substitute for the Emtek 3347 Mormont on a locked front door?
No. The Schlage Residential JE285 Barcelona Style Handleset with Seville Lever is a non-keyed entry function set, so it does not take a key from the outside; it is a Grade 2 set for 1-3/8 inch to 1-3/4 inch doors. The Emtek 3347 Mormont is a keyed single cylinder mortise handleset, key outside and thumbturn inside. If the JE285 look is wanted on a securable door, the Schlage F60 Addison is the keyed Grade 2 entry handleset in the same residential family.
11) Is the Kwikset 687AMD Amador handleset a complete replacement for an Emtek 3347 Mormont entry set?
Not on its own. The Kwikset 687AMD Amador Single Cylinder Handleset is supplied exterior only, so the interior trim is a separate purchase; it is a Grade 3 entrance handleset for 1-3/4 inch doors, offered with SmartKey and in an SC1 keyway version as the 687AMD SMC. The Emtek 3347 Mormont ships as a complete set with the exterior handleset, interior knob or lever and backplate, mortise lock box, faceplate, strike plate and mounting hardware.
12) What entry handlesets use a Schlage keyway so they can key alike with existing Schlage cylinders?
The Emtek 3347 Mormont uses a Schlage C keyway, and multiple locks can be ordered keyed alike or to a specified key code as long as they share that keyway. Among the peers, the Kwikset 687AMD SMC Amador handleset is built on an SC1 keyway with SmartKey. Kwikset handlesets supplied on the standard SmartKey cylinder, such as the 687AMD SMT and the 687BW SMT Belleview, are a different keyway family and will not share a key with a Schlage C cylinder.
13) What comes in the box with the Emtek 3347 Mormont entry set?
It ships as a complete set: the large exterior handleset, the interior knob or lever with its backplate, the mortise lock box with faceplate and mounting hardware, the jamb strike plate, and the remaining mounting screws. The only thing you choose separately is which interior knob or lever style goes on it, and the cylinder is already part of the single cylinder set with a thumbturn inside.
14) I have a double front door where one side never opens. What do I order from the Emtek Mormont line?
Two sideplates. The active leaf takes the single cylinder Mormont set, and the inactive leaf takes a dummy sideplate, which gives the matching look without the working mechanism. Ordering two live sets for a pair leaves you paying for a lock box you cannot use on the inactive side.
15) What finishes does the Emtek Mormont 3347 come in, and will they match my other Emtek hardware?
Six finishes on the Mormont 3347: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). The body is solid brass. Unlacquered brass is a living finish that darkens and patinas with handling, so it will not stay matched to a lacquered piece over time; pick one of the other five if the whole house has to look identical years from now.
16) Can I put a lever on the inside of the Emtek Mormont handleset instead of a knob?
Yes, and the choice is wide open. The interior trim on the 3347 takes any Emtek brass knob or lever, roughly ninety styles, from plain levers like the Stuttgart, Athena, and Milano through knurled and faceted bar levers to crystal knobs such as the Windsor and Bristol. A lever is the usual pick where you want an easier grip for loaded hands or aging occupants.
17) What else could I buy instead of the Emtek Mormont mortise entry set?
Staying with mortise trim, the Baldwin Estates 6542 Tremont is the closest peer, offered in single cylinder and double cylinder entry versions, both for 1-3/4 inch doors. Moving off mortise entirely, tubular handlesets fit a standard bored door instead of a routed pocket: Schlage Residential F60 Addison and Weslock 1411 Traditionale Colonial are both single cylinder keyed entry. For an electronic front door, the Kwikset 815 San Clemente pairs a handleset with a SmartCode keypad deadbolt. The tradeoff is prep, a mortise pocket is more work to cut but gives you the F20 or F13 edge functions a tubular set does not have.
18) I am keying several doors in one house and a second house on the same order. How do I set that up on Emtek locks?
Mark each lock keyed alike to have them share one key. For more than one building on the same order, tag each lock with its group, so the first house is one keyed alike group and the second is another, and the two groups get different keys. If you already have a key code on file, give the code instead and they will be cut to it. All of it holds only within the Schlage C keyway these use.
19) Which entry handlesets carry an ANSI grade if my facility spec calls one out?
The Emtek 3347 Mormont is a residential brass mortise handleset carrying a UL 180 minute fire rating and standard mortise prep to ANSI A115.1. If the spec is written to an ANSI/BHMA grade instead, the Schlage Residential F60 Addison with Accent Lever and the Schlage Residential JE285 Barcelona with Seville Lever are both Grade 2, the Master Lock HDLB Series Single Cylinder Deadbolt Handleset is Grade 2, and the Kwikset 687AMD Amador and 687BW Belleview exterior handlesets are Grade 3.
20) My door is 2 inches thick - which entry handlesets cover that?
The Emtek 3347 Mormont is built to 1-3/4 inch as standard, with thicker doors accommodated when the thickness is specified with the order. Peers that publish a range reaching 2 inches or beyond include the Weslock 1411 Traditionale Colonial Handleset with Eleganti Knob at 1-3/4 inch to 2-1/4 inch, the Yale Real Living BYRD226NRRX Assure standalone touchscreen deadbolt with Ridgefield handleset at 1-3/4 inch to 2-1/4 inch, the Deltana 810871 Montego Handleset at 1-3/8 inch to 2 inch, and the Weslock 2810 Hillcrest at 1-3/8 inch to 2 inch.
21) Can I get a keypad or app-controlled entry handleset instead of a keyed mortise set like the Emtek 3347 Mormont?
The Emtek 3347 Mormont is mechanical, not electronic, and keys to a Schlage C keyway. Electronic handleset options are built on deadbolt platforms: the Kwikset 815SCEHFL-CP913CNT San Clemente handleset with Halifax lever pairs a Contemporary SmartCode keypad electronic deadbolt for 1-3/4 inch doors, the Yale Real Living BYRD226CBARX Assure Lock offers Wi-Fi and Bluetooth touchscreen with the Ridgefield handleset at 1-3/4 inch to 2-1/4 inch, and the Yale BYRD256 CBARX is a key-free touchscreen Wi-Fi deadbolt with the Ridgefield passage handleset. These change the door prep from mortise to bored deadbolt and latch.
22) Which solid brass handlesets compare to the Emtek 3347 Mormont if I want the same material in a traditional look?
The Emtek 3347 Mormont is solid brass in a contemporary style, offered in Flat Black, Oil Rubbed Bronze, Polished Chrome, Satin Brass, Satin Nickel and Unlacquered Brass. Deltana's solid brass entry handlesets run more traditional: the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston are all entry function solid brass handlesets. The Deltana sets are tubular-prep handlesets rather than mortise.
23) I need an interconnected lever set that throws a deadbolt with the inside lever, not a mortise handleset - what covers that?
The Schlage Residential JI18/19 Interconnected Passage Lock with Keyed Deadbolt and Torino Lever in Satin Stainless Steel handles that pattern: a passage function lever interconnected with a keyed deadbolt, Grade 2, for 1-3/8 inch to 1-3/4 inch doors. The Emtek 3347 Mormont is a mortise handleset instead, where locking is by key outside or thumbturn inside, with the F20 function adding edge buttons that let the door lock behind you and the F13 function omitting those buttons.
24) Do I have to specify handing on entry handlesets, and which peers avoid that?
Handing is required on the Emtek 3347 Mormont because it is a mortise lock, ordered as left hand or right hand and as in-swing or out-swing. Bored tubular handlesets in the peer set are not ordered by hand in the same way: the Schlage F60 Addison with Accent Lever at 1-3/8 inch to 1-3/4 inch, the Pamex FS7P31 Lexington Single Cylinder Handleset in satin nickel at 1-3/8 inch to 1-3/4 inch, and the Baldwin Wesley Handleset offered with either the Alcott or Carnaby knob are all entry-function tubular sets.
25) Is the Emtek Mormont 3347 meant for a commercial building or a house?
Emtek classes the Mormont 3347 as residential door hardware, and the Contemporary styling and brass finishes point at homes and high-end multi-family entries. It is a mechanical lock with no electronic component. For a commercial opening on a spec that calls for an ANSI/BHMA grade, look for a listed Grade 1 or Grade 2 mortise lockset rather than a decorative residential entry set.
