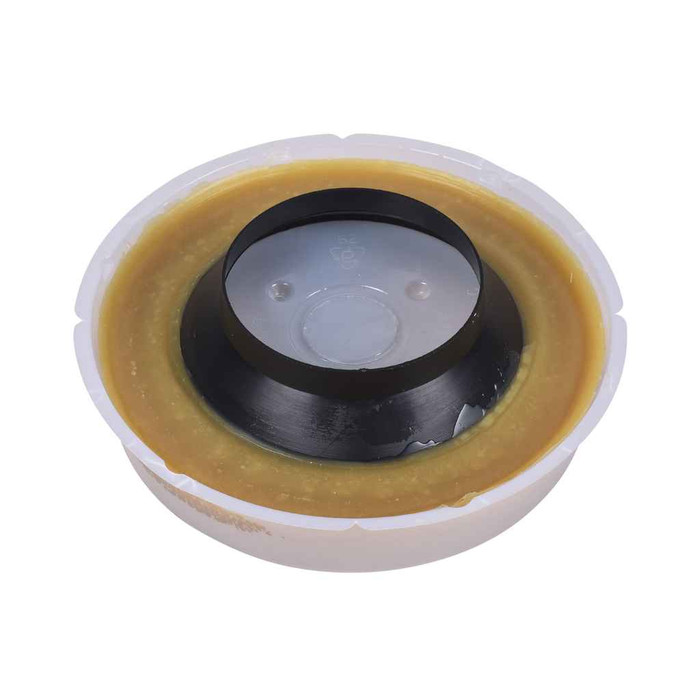

OATEY 90220 Hercules® 3 in. or 4 in. Johni-Rings - Standard Size With Plastic Horn

One ring covers both. The Oatey 90220 Hercules Johni-Ring is a standard size wax gasket sized for 3 in. or 4 in. waste openings, so you don't need to know which flange is in the floor before you buy it.

Floor mounted toilets. The 90220 is a wax closet gasket that seats between a floor mounted water closet and the closet flange. A wall hung carrier fixture uses a different gasket setup, so this is not the part for it.

The 90220 uses a soft, flexible high-grade petroleum wax that compresses under the weight of the bowl to form a gas and watertight seal on most types of water closets, which is what lets it conform to a worn or slightly irregular flange face. Where the flange sits well below the finished floor, a flange spacer or extender ring is the correct fix rather than stacking wax.

The horn is a molded plastic funnel in the center of the wax ring that extends down into the flange and channels discharge straight into the drain. It helps keep waste off the wax and reduces the chance of a slow leak at the joint. Use a horn version where the flange sits at or slightly below finished floor; it is the standard choice for most residential and multi-family closet resets.

No. The Johni-Ring 90220 is the wax gasket with plastic horn only, supplied in a clean release tray. Closet bolts, nuts, retainer washers and any flange repair parts are ordered separately, so check what is already in the floor before the truck rolls.

The Hercules Johni-Ring meets Federal Specification TT-P-1536A, the standard for plumbing fixture setting compound. That is the reference a government, healthcare or education procurement package normally asks for on a wax closet gasket.

Plan on a new ring. Wax compresses and takes the shape of the joint on the first set, and the 90220 is built so the wax maintains shape and hands stay clean going in, not so it can be re-seated. Once the bowl has been set and lifted, the compressed wax may not reseal. Stocking a few spares per truck is normal practice for maintenance crews doing closet resets.

Each 90220 Johni-Ring weighs 0.452 lb with a volume of 0.061, which is what you'd use to work out pallet or carton weight when standardizing a wax ring across a portfolio of buildings.
