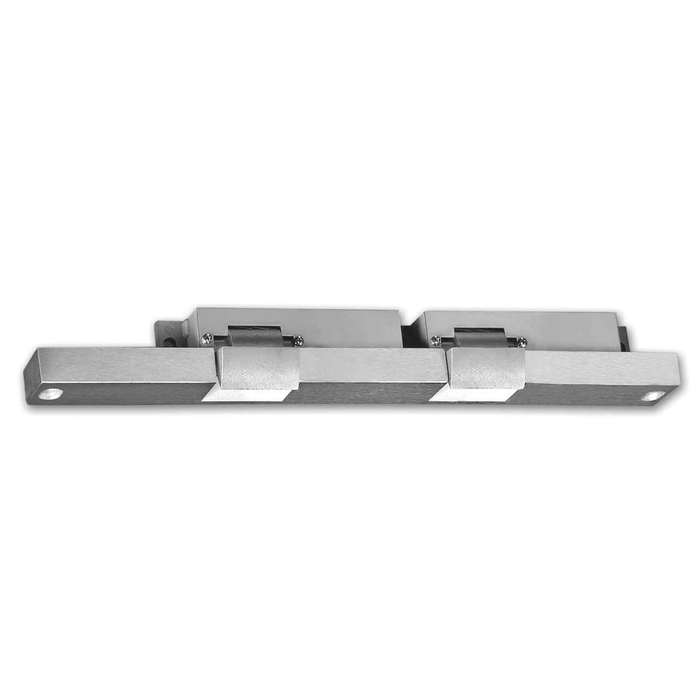

HES FOLGER ADAM 310-4-3/30 COMPLETE PACS FOR SURFACE VERTICAL RODS
The 310-4-X vertical surface mounted series is designed for heavy duty applications on single or double doors. The all stainless steel construction of this device makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging Pullman style latchbolt.
FEATURES AND BENEFITS
Standard Features
• Tamper resistant, heavy duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Adjustable keeper to allow for door and frame misalignment
• Pullman keeper
• Non-handed
• Fail secure (standard)
• Plug-in connector
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)
Optional Features
- Fail Safe
- LCBMA Latchbolt & Locking Cam Monitor with Auxiliary Switch
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
Electrical (Continuous Duty)
510 mA at 12 VDC/250 mA at 24 VDC
| 310-4-1 |
For both leaves of a pair of doors when spacing of the vertical rod is between 4" and 4-3/4". PK keeper standard |
| 310-4-2 |
For both leaves of a pair of doors when spacing of the vertical rod is between 4-5/8" and 5-3/8". PK keeper standard |
| 310-4-3 |
For both leaves of a pair of doors when spacing of the vertical rod is between 5-1/4" and 6". PK keeper standard |
| 310-4-30 |
For both leaves of a pair of doors when spacing of the vertical rod is between 2-5/8" and 3-3/8". PK keeper standard |
Note: Double-door models are available with 4 different center-to center dimensions between latchbolt keepers. Keepers are wide enough to compensate for vertical-rod exit bolts which may be as much as 3/8" off center-to-center dimension, either way.
When using an electric strike in conjunction with a vertical-rod device, it is necessary that:
- The bottom rod of the exit device be removed or made inoperative
- The latchbolt of the exit device be the "Pullman" or beveled type
- The latchbolt be free-latching and remain projected while the door is open. Mechanisms that hold the latchbolt retracted while the door is open, and automatically release it when the door is closed, must be removed or made inoperative
CERTIFICATIONS & LISTINGS
- UL 1034, burglary-resistant listed
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
- RoHS compliant
FACEPLATES & ACCESSORIES
- 2001-1 - Wire-in bridge rectifier
- 2001M - Plug-in bridge rectifier
- 2004M - ElectroLynx® adapter
- 2005M3 - SMART Pac III™
- 2006M - Plug-in buzzer
Manufacturer Resources
Product Specs
- Series:
- Folger Adam 310-4-X Series
- Category:
- Electronic Access Controls
- Subcategory:
- Electric Strikes
- Product Group:
- Electronic Access Controls
- Grade:
- Grade 1
- Static Strength:
- 1500
- Dynamic Strength:
- 70 ft-lbs
- Warranty:
- 5 Year (10 Year when SmartPACIII)
- Voltage:
- 12/24VDC
- Endurance Cycles:
- 1,000,000
- Handing:
- Non-Handed
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strikes
- Model:
- HES-310-4-30
- Substrate:
- Stainless Steel
- Lock Type:
- Exit Device
- Outdoor Rated:
- No
- Preload Capable:
- No
- Windstorm Rated:
- No
- Fire Rated:
- No
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Fail-Safe/Fail-Secure:
- Field Selectable
