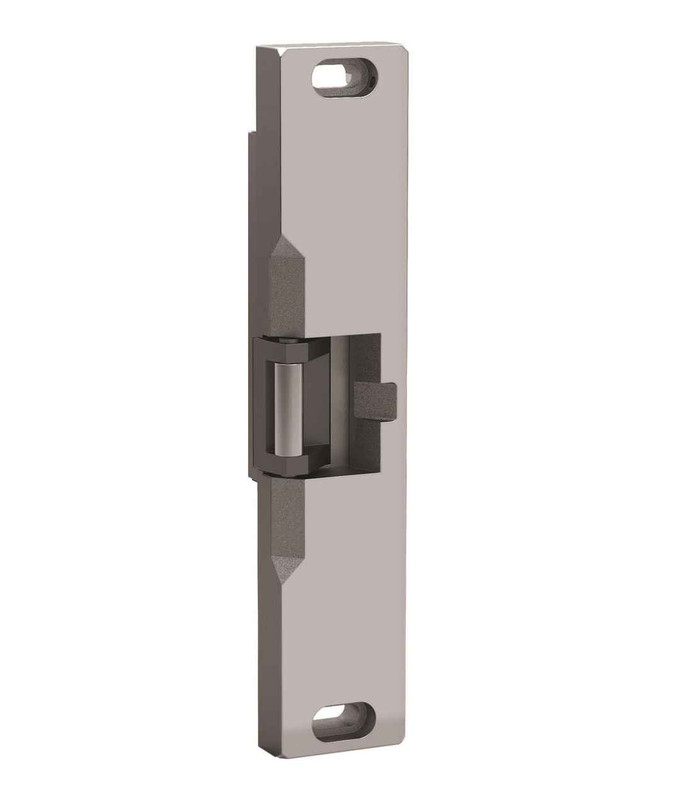

HES Folger Adam 310-4S Complete Pacs for Squarebolt Rim Exit Device

HES Folger Adam 310-4S Complete Pacs for Squarebolt Rim Exit Device

(No reviews yet) Write a Review

Model: 310-4S 24D 630
$1,196.82
$750.32
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,196.82
$750.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HES FOLGER ADAM 310-4S COMPLETE PACS FOR PULLMAN RIM EXIT DEVICES WITH LATCHBOLT

The 310-4 is a 3-hour fire rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The HES Folger Adam 310-4
Series has a unique 3/4" face plate with an integrated 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.


FEATURES AND BENEFITS

Standard Features

• Integrated shim for quick customization of faceplate thickness (1/2" to 3/4" [19mm])
• Tamper resistant, heavy duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance rating 1 million cycles
• Integrated ramps for better deadlatch handling
• Set screws for horizontal lockdown
• In-frame horizontal adjustability
• Wider faceplate for greater versatility
• Non-handed
• Fail secure (standard)
• Plug-in connector
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)


Optional Features

  • Fail Safe
  • LCBMA Latchbolt & Locking Cam Monitor with Auxiliary Switch

Finishes

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel

Electrical (Continuous Duty)

510 mA at 12 VDC/250 mA at 24 VDC 310-4 For up to 3/4" [19mm] Pullman style latchbolts on single doors
PK keeper standard


310-4

For up to 3/4" Pullman style latchbolts on single doors.

PK keeper standard
310-4S

For Squarebolt® style rim exit devices such as:

  • Corbin Russwin® ED4200S, ED5200S and ED5200SA Securebolt™
  • Yale® 7150(F), 7250, 7270M(F) Squarebolt® Exit Devices

SK keeper standard

FACEPLATES & ACCESSORIES

  • SMB - Surface mounting box
  • HESCUT-MTK Metal template kit
  • 2001M - Plug-in bridge rectifier
  • 2004M - ElectroLynx® adapter
  • 2005M3 - SMART Pac III™
  • 2006M - Plug-in buzzer

CERTIFICATIONS & LISTINGS

  • UL 10C, 3-hour fire rated (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL 1034, burglary-resistant listed
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant RoHS compliant

Product Specs

Subcategory:
Electric Strikes
Product Group:
Electronic Access Controls
Series:
310 Series
Grade:
Grade 1
Shim:
Horizontally Adjustable
Dynamic Strength:
70 ft-lbs
Warranty:
5 Year (10 Year when SmartPACIII)
Endurance Cycles:
1,000,000
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes for Exit Devices
Outdoor Rated:
No
Preload Capable:
No
Windstorm Rated:
No
Commercial/Residential:
Commercial
Electronic:
Yes
Fail-safe / Fail-secure:
Field Selectable
Holding Force:
1500
Lock Type:
Exit Device
Product Model:
HES-310-4S
Product Voltage:
12/24 VDC
Fire Rating:
Yes
Latch Specification:
SecureBolt, Squarebolt
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

HES 310-4S 24D 630 – Frequently Asked Questions

1) Will the HES 310-4S electric strike work with a Corbin Russwin ED5200S or Yale 7150 rim exit device?
Yes. The 310-4S is the Squarebolt version of the Folger Adam 310 Series, built for Squarebolt style rim exit devices including the Corbin Russwin ED4200S, ED5200S and ED5200SA Securebolt, and the Yale 7150(F), 7250 and 7270M(F) Squarebolt devices. It ships with the SK keeper as standard, which is the keeper that suits those square latchbolts. If your device has a Pullman style latchbolt instead, you want the 310-4 with the PK keeper, not the -4S.
2) Can I use an HES 310-4S on a 3-hour fire rated door opening?
Yes, but only in the fail secure configuration. The 310 Series strike is UL 10C 3-hour fire rated for fail secure only, and it is also CAN4-S104 (ULC-S104), NFPA-252 and ASTM-E152 fire door conformant. Order the fail-safe version and the fire rating no longer applies, so on a rated opening specify fail secure.
3) My exit device has a 1/2 inch latchbolt throw. Does the 310-4S faceplate need shimming?
No shimming needed, and no filing either. The 310 Series faceplate is 3/4 inch thick with a 1/4 inch base shim built into it. Leave the shim in for a 3/4 inch throw latchbolt; pull it out in the field and the faceplate drops to 1/2 inch for a 1/2 inch throw device. That is a field operation, not a different part number. The shim is also horizontally adjustable, and set screws lock the strike down once you have the alignment right.
4) Is the HES 310-4S fail-safe or fail-secure, and what happens when the power drops?
Both are available and the mode is set by which one you order. Fail secure is the standard build: cut power and the strike stays locked, so the door still latches and you enter with a key or credential. Egress is unaffected either way, since the exit device always releases from the inside. Fail safe unlocks on power loss, which is what some life safety and stair re-entry schemes call for, but it gives up the fire rating on the 310 Series.
5) What voltage does the HES Folger Adam 310-4S strike draw, and can I run it off my existing 24VDC access control power supply?
The 310-4S runs on 12 or 24 VDC, continuous duty, drawing 510 mA at 12 VDC or 250 mA at 24 VDC. Voltage is an ordering choice, not a field jumper, so pick the 24V version for a 24 VDC supply and budget a quarter amp per strike. It uses a plug-in connector at the strike. On AC power you would add the 2001M plug-in bridge rectifier; for surge and inrush management the 2005M3 SMART Pac III plugs in the same way.
6) Is the HES 310-4S tough enough for a high abuse door like a school or public housing entry?
That is what the 310 Series was built for. It is an industrial grade strike made entirely of stainless steel, rated 1,500 lbs static holding force, 70 ft-lbs dynamic strength, and endurance tested to 1,000,000 cycles. ANSI/BHMA A156.31 Grade 1, and UL 1034 burglary-resistant listed on top of that. Stainless throughout also means it resists corrosion, though it is not rated for outdoor exposure or windstorm openings.
7) How do I get door position and latch status back to my access control panel from an HES 310-4S?
Order the LCBMA option. It adds a latchbolt and locking cam monitor with an auxiliary switch, so the panel sees both that the latch is actually in the keeper and that the cam has relocked, not just that the relay fired. Without it the strike ships unmonitored, so if your head end is set up for door status reporting, specify LCBMA at order time. It is not something you add later. The strike is also UL 294 listed for access control system use.
8) What else could I use instead of the HES 310-4S for a rim exit device, and how do they differ?
Depends on what your latch is and whether the opening is fire rated. The Von Duprin 6111 is the closest peer we carry: Grade 1, heavy duty, 12/24 VDC, fire rated, field-selectable fail-safe or fail-secure. The Von Duprin 6300 is Grade 1 and fire rated as well but mounts to the surface of the frame rather than into it, which is the route on a frame you cannot cut. On the Adams Rite side, the 74R1 and 74R2 Ultraline strikes for rim devices are field selectable fail-safe/fail-secure and the 7800 handles starwheel and interlocking latchbolts, but none of those three is fire rated, so they are out on a rated opening. The one thing to keep straight: the 310-4S is specifically keyed to Squarebolt and Securebolt square latchbolts.
9) My exit device latch is under pressure from the closer or a stack effect. Will the HES 310-4S still release?
Not reliably. The 310 Series is not preload capable, so it should not be counted on to release with side load on the latch. On doors where wind, stack pressure or an aggressive closer is pushing the latch into the keeper, that is the constraint that decides the product. The 310-4S also is not windstorm rated, so it does not belong on a rated storm shelter opening.
10) The frame cannot be cut for a mortised electric strike. What can be used instead of the 310-4S?
The Von Duprin 6300 is a surface mounted electric strike for rim exit devices, Grade 1, fire rated and 2,000,000 cycle tested, so it mounts to the face of the frame rather than requiring a mortised cutout. The 310-4S is a mortise-prep strike with in-frame horizontal adjustability and an endurance rating of 1,000,000 cycles. On an aluminum or filled frame that cannot be cut, the 6300 is the surface answer; where the frame can be prepped and the exit device uses a Squarebolt or SecureBolt latch, the 310-4S matches the latch geometry.
11) Do I need to specify handing when ordering an HES 310-4S electric strike?
No. The 310 Series is non-handed, so one part number covers left and right hand openings. That matters if you are standardizing a building: you stock one strike instead of two, and a field swap never turns into a wrong-hand return.
12) Can an HES 310-4S be installed on a frame with no cutout, or on a pair of doors?
For a frame you do not want to cut, add the SMB surface mounting box and the strike mounts to the face of the frame instead. If you are cutting the frame, the HESCUT-MTK metal template kit gives you the prep. Note the application limit though: the 310 Series is for single doors. A pair of doors with an active and inactive leaf is not what this strike addresses, and there is no mullion accessory in the 310 line.
13) Which electric strike for a rim exit device is rated for the most cycles?
Of the rim exit device strikes in the range, the Von Duprin 6300 is 2,000,000 cycle tested. The HES Folger Adam 310-4S carries a 1,000,000 cycle endurance rating with 1,500 lbs static holding force, 70 ft-lbs dynamic strength and all stainless steel construction. Both are Grade 1 and fire rated, so on a high-traffic opening the choice comes down to whether the frame takes a mortise prep and whether the exit device uses a Squarebolt style latch.
14) Is a preload capable strike needed, and does the 310-4S handle a door under pressure?
The 310-4S is not preload capable. It is an interior, non outdoor rated strike, Grade 1 and fire rated, with 1,500 lbs holding force and integrated ramps for deadlatch handling. On an opening where a closer or stack pressure loads the latch against the keeper, look instead to the Von Duprin 6300, a surface mounted Grade 1 fire rated strike for rim exit devices that sits on the frame face rather than capturing the latch in a mortised pocket.
15) What finishes does the HES Folger Adam 310 Series electric strike come in to match my other door hardware?
Six: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 629 bright stainless steel and 630 satin stainless steel. 630 satin stainless is the usual pick on commercial openings because it matches the stainless exit devices and frames it typically goes next to. The strike body is stainless steel regardless of the faceplate finish you choose.
16) Is there a way to get an audible signal at the door when the HES 310-4S releases?
Add the 2006M plug-in buzzer. It plugs into the strike the same way the other 310 Series accessories do, so no separate device on the frame. If you are tying into a Von Duprin ElectroLynx harness system, the 2004M ElectroLynx adapter handles that connection.
17) What is the difference between the Adams Rite 74R1 and 74R2 when neither is on a fire door?
They are two separate series, the 74R1 Series and the 74R2 Series, both Ultraline electric strikes for rim exit devices with field-selectable fail-safe and fail-secure operation, and both carry a fire rating of No. Where the opening is fire labeled, neither applies and the HES Folger Adam 310-4S, which is fire rated and Grade 1 with field selectable fail-safe or fail-secure at 12/24 VDC, is the one that suits a Squarebolt or SecureBolt style latch.
