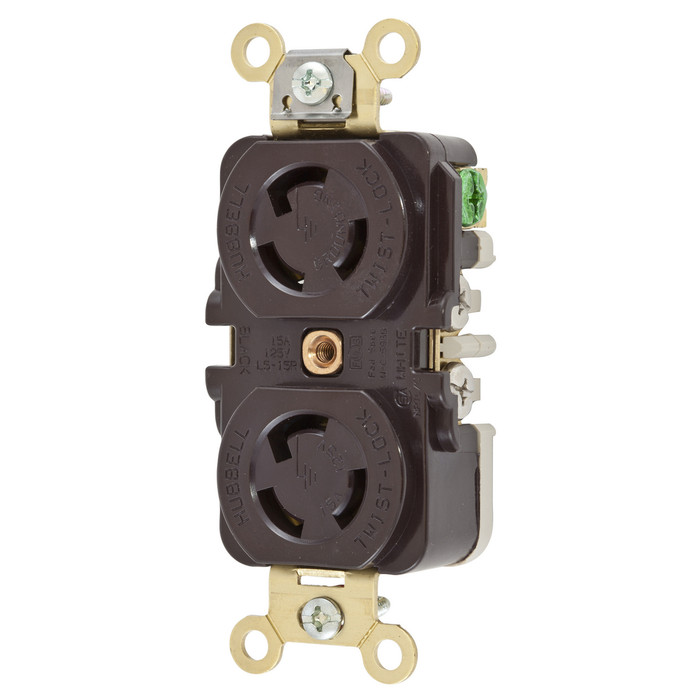

Hubbell Wiring HBL4700 Twist-Lock® Duplex Receptacle, 15A 125V NEMA L5-15R, Brown

Hubbell Wiring HBL4700 Twist-Lock® Duplex Receptacle, 15A 125V NEMA L5-15R, Brown

(No reviews yet) Write a Review

Model: HBL4700

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hubbell Wiring HBL4700 Twist-Lock® Duplex Receptacle, 15A 125V NEMA L5-15R, Brown

The Hubbell Wiring HBL4700 is a flush mount duplex receptacle engineered for dependable single-phase power connections in demanding commercial and industrial environments. Rated 15-Amp at 125-Volt AC and configured to the NEMA L5-15R standard, this device pairs with matching L5-15 twist-lock plugs to deliver a secure, positive-locking connection. Its Twist-Lock® design resists accidental disconnection from vibration, cord tension, or movement, making it well suited for equipment that cannot tolerate an interrupted power supply. Finished in brown, the HBL4700 combines the convenience of a duplex outlet with the security of a locking connection in a compact flush-mount footprint.

Key Features

  • Twist-Lock® Connection: Locking blade-and-slot contact design prevents accidental unplugging, ideal for portable equipment, machinery, and locations subject to vibration or cord movement.
  • Amperage Rating: Rated 15-Amp for reliable, consistent performance with connected loads within its rated capacity.
  • Voltage Rating: Rated 125-Volt AC, 1-Phase, for standard single-phase power distribution circuits.
  • NEMA Configuration: Built to the NEMA L5-15R configuration, ensuring correct mating with corresponding L5-15 twist-lock plugs.
  • Duplex Design: Two locking receptacle outlets on a single device, allowing two cord-and-plug loads to be connected at one location.
  • Flush Mount Installation: Designed to install flush into a standard wall box for a clean, low-profile finish.
  • Finish: Brown finish suited to standard commercial and industrial decor schemes.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Single-Phase 125-Volt, 15-Amp Power Connections
  • Portable and Cord-Connected Equipment Requiring a Locking Plug
  • Locations Subject to Vibration or Cord Movement
  • Duplex Outlet Applications Needing Two Locking Connections
  • Renovation and New Construction Wiring

Why Hubbell Wiring?

Hubbell Wiring is a trusted name in professional-grade wiring devices, and the HBL4700 reflects that standard with its Twist-Lock® locking design and NEMA L5-15R duplex configuration. Engineered for dependable, code-compliant performance, this receptacle is built to withstand the demands of everyday commercial and industrial use, giving installers a locking connection they can count on for critical single-phase 125-Volt, 15-Amp circuits.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
HUG-20260922
Product Type:
Receptacle
Department:
Electrical
Product Subgroup:
Receptacles & Outlets
Amperage Rating:
15A
Voltage Rating:
125V
Nema Rating:
L5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Product Group:
Wiring Devices

Hubbell Wiring HBL4700 – Frequently Asked Questions

1) What plug does the Hubbell HBL4700 twist-lock receptacle accept?
The HBL4700 is wired to the NEMA L5-15R pattern, so it mates with L5-15P twist-lock plugs rated 15A 125V. A standard straight-blade 5-15 cord cap will not go in, and neither will a 20A L5-20 plug, the blade pattern is different. If the equipment cords on the job have ordinary parallel-blade plugs, you need a straight-blade receptacle instead of this one.
2) Will the HBL4700 twist-lock receptacle fit a standard wall box?
Yes. The HBL4700 is a flush mount device, built to install into a standard wall box and sit low-profile behind the plate rather than mounting in a surface-mount or pendant housing.
3) Is the Hubbell HBL4700 a single or a double locking outlet?
It is a duplex device, two L5-15R locking outlets on one yoke, so two cord-and-plug loads can land at the same box location without a splitter or a second opening.
4) Why spec a twist-lock receptacle instead of a regular 15A outlet for shop equipment?
The reason is cord retention. The HBL4700's Twist-Lock blade-and-slot contacts hold the plug in mechanically once it is rotated, so vibration, cord tension, or someone walking past the cord will not drop the load. On equipment that cannot tolerate an interrupted supply, pumps, controls, monitoring gear, that is the whole argument for the locking configuration over a straight-blade duplex. If nothing on the circuit cares about a nuisance disconnect, a standard 5-15R costs you less work and takes common cord caps.
5) What circuit can the Hubbell HBL4700 be used on?
Single-phase 125-volt AC circuits at 15 amps. It is not a 250V or 3-phase device, and it should not be landed on a 20A branch unless your installation rules allow a 15A receptacle on that circuit. Loads on the duplex together have to stay within the circuit's rating.
6) What color is the Hubbell HBL4700 and does it come with a wall plate?
Brown is the finish on the HBL4700 device itself. The receptacle is the item, so a cover plate is ordered separately, and a duplex twist-lock needs a plate with the correct round openings rather than a standard decorator or straight-blade duplex plate. If you are matching other devices in a building already running brown Hubbell wiring devices, this one lines up on color.
7) What is the exact Hubbell part number for this 15A 125V twist-lock duplex receptacle?
HBL4700 is the manufacturer part number, from Hubbell Wiring. Quote it as-is, the adjacent Hubbell locking devices differ by amperage and voltage configuration, so the number is what pins down the L5-15R duplex version.
