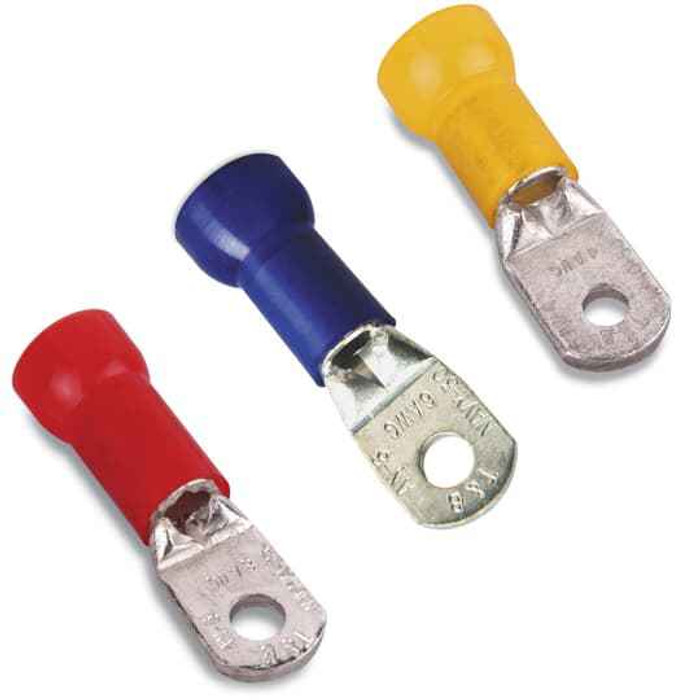

INS NYL RING TERM, 1/0, 3/8, CLEAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 1/0 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- White
- Product Material:
- Copper
Sta-Kon RH737 – Frequently Asked Questions
1) What wire size does the Sta-Kon RH737 ring terminal take?
The RH737 is built for 1/0 AWG conductor. It is a nylon insulated ring terminal with a copper barrel, so it crimps onto stranded copper 1/0 cable. Anything smaller than 1/0 will not fill the barrel properly and the crimp will not hold.
2) Will the RH737 ring terminal fit a 3/8 inch stud or lug bolt?
Yes. The RH737 is the 3/8 inch stud size in the Sta-Kon insulated ring range, so it lands on a 3/8 inch bus bar stud, breaker lug screw, or ground bar bolt. For a 1/4 or 5/16 stud you need the matching smaller ring, not this one.
3) Is the Sta-Kon RH737 aluminum rated, or copper only?
Copper only. The barrel is copper, so it is intended for stranded copper conductor. Aluminum 1/0 feeders need a dual rated AL9CU connector instead, and putting aluminum into a copper only barrel risks a bad connection.
4) Is the Sta-Kon RH737 rated for 600 volt circuits?
Yes, the insulation on the RH737 is rated 600 V, which covers standard commercial and industrial branch and feeder work, panelboard terminations, and motor connections at 480 V and below.
5) Is this ring terminal UL recognized?
The RH737 carries UL file E9809. If your inspector or spec requires UL terminations on 1/0 conductors, that file reference is the one to cite on the submittal.
6) Can I use a nylon insulated ring like this instead of a bare compression lug on 1/0 cable?
For a 1/0 terminal that needs insulation at the stud, the nylon insulated ring does the job in one piece and saves adding heat shrink over a bare lug. Where you need a two hole pad, a long barrel for a high pull-out load, or a terminal that will be taped into a larger insulation build, a bare compression lug is the better choice. The RH737 is a single hole, 3/8 inch stud, 600 V insulated ring.
7) What color is the insulation on the 1/0 Sta-Kon RH737?
The sleeve is clear nylon over the barrel, catalogued as white. On heavy-gauge Sta-Kon rings the clear nylon lets you see the conductor seated at the back of the barrel before you crimp, which is a quick visual check on a 1/0 termination.
8) What part number do I order and where is it made?
Order it as Sta-Kon RH737. It is manufactured in Mexico.
