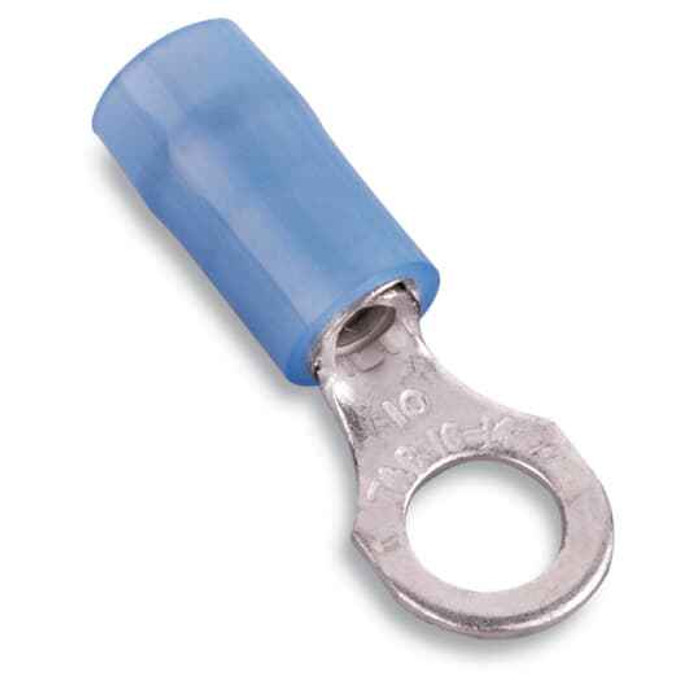

INS NYL RING TERM 18-14 5/16IN BLU
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RB723 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RB723 ring terminal crimp?
The RB723 is sized for 18 to 14 AWG stranded copper conductor. That blue insulation is the standard color code for the 16-14 AWG range, so if you are sorting a bin by color, blue is your 18-14 terminal. Anything heavier than 14 AWG needs a yellow-coded 12-10 terminal instead.
2) Is this ring terminal rated for 600 volt control and motor circuits?
Yes. The RB723 carries a 600 V rating and is UL recognized under file E9809, which covers it for typical 120/208/240/480 V control panel, motor lead and panelboard terminations.
3) Is the RB723 terminal copper or aluminum, and can I put it on aluminum wire?
The barrel is copper, so it is a copper-only terminal. Use it on stranded copper conductor in the 18-14 AWG range. Aluminum conductor needs an AL/CU rated connector with inhibitor compound, not this one.
4) Does the nylon insulation on this ring terminal hold up better than vinyl?
The RB723 uses a nylon insulating sleeve rather than vinyl. Nylon resists abrasion, cut-through and solvents better and holds its shape when the barrel is crimped, which is why nylon-insulated terminals are the usual pick for panel work and anywhere the harness gets pulled through conduit or over edges.
5) Is the Sta-Kon RB723 made in the USA for a Buy American job?
Country of origin on the RB723 ring terminal is the United States, which is what a federal, state or institutional spec with a domestic-content requirement will ask you to document.
How fast can I get the Sta-Kon RB723 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sta-Kon RB723 come with a warranty?
Absolutely. The Sta-Kon RB723 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Sta-Kon RB723?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
