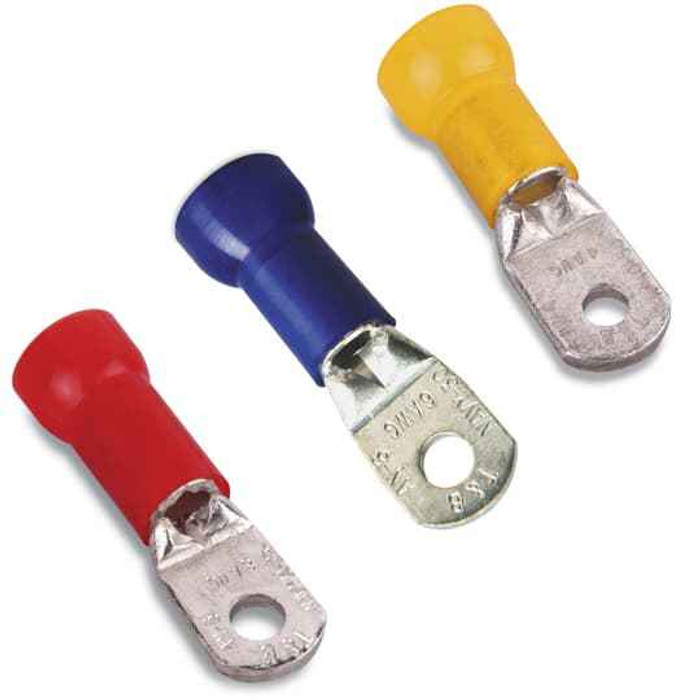

INS NYL RING TERM, 2/0, 5/16, BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 2/0 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RJ727 – Frequently Asked Questions
1) What wire size does the Sta-Kon RJ727 ring terminal accept?
The RJ727 is sized for 2/0 AWG conductor. It will not grip smaller cable reliably, so if you are terminating 1/0 or 4/0 you need the barrel sized for that gauge instead. The barrel is copper, nylon insulated in blue.
2) Is the RJ727 ring terminal rated for 600 volt circuits?
600 V is the rating on the RJ727, which covers typical commercial panel, feeder, and motor connection work. It also carries UL file E9809, which matters when an inspector or a spec sheet asks for a listed termination.
3) Is the Sta-Kon RJ727 a crimp lug or a mechanical set screw lug?
It is a crimp lug. The RJ727 barrel is compressed onto the 2/0 conductor with a crimp tool matched to that barrel size, so you need the die or tool for 2/0 on hand. If you want a connection you can install with a hex key and no crimper, a set screw mechanical lug is the different product to look for.
4) Is the RJ727 terminal copper or aluminum, and can I use it on aluminum conductor?
The RJ727 barrel is copper, so it is intended for copper conductor. Aluminum cable needs a lug marked AL or AL9CU with the appropriate compound, not a plain copper crimp barrel.
5) Do I need an insulating boot or heat shrink over this 2/0 ring terminal?
No separate sleeve is needed for the barrel. The RJ727 comes with nylon insulation already over the crimp barrel, color coded blue. The ring tongue itself is bare metal, as it has to be to make contact at the stud, so if you need the lug face covered you would add a boot over the completed joint.
6) What is the exact part number and country of origin for this Sta-Kon ring terminal?
Order it as Sta-Kon RJ727, the 2/0 AWG, 5/16 inch stud blue nylon insulated ring terminal. Country of origin is Mexico.
