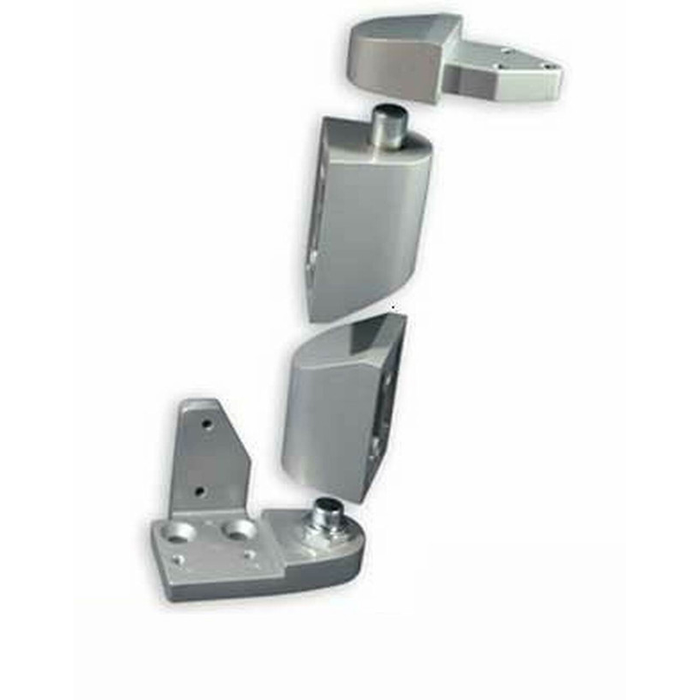

International Door Closers OP-3001 3/4" Offset Pivot Set For Flush Doors, Handed

International Door Closers OP-3001 3/4" Offset Pivot Set For Flush Doors, Handed

(No reviews yet) Write a Review

Model: OP-3001-DU-LH
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$43.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

International Door Closers OP-3001 3/4" Offset Pivot Set For Flush Doors, Handed

  • Oilite bronze bushing in top frame portion
  • Case hardened, spring loaded pin in top door portion (case hardened fixed pin In Series 5000 top door portion)
  • Full race ball bearing in bottom door portion
  • Case hardened stud in floor/jamb portion (stainless steel stud In Series 5000 floor/jamb portion) • 1/8” vertical adjustment
  • For doors up to 125 lbs.

RESOURCES & DOWNLOADS

IDC Pivot_Sets.pdf

Manufacturer Resources

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Hinges
Subcategory:
Top Pivots
Commercial/Residential:
Commercial
Electronic:
No
Pivot Type:
Flush Door
Mounting Method:
Offset
Product Attribute:
Pivots
Series:
3000 Series
Product Model:
OP-3001/OP-3002
Door Hand Direction:
Handed
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

International Door Closers OP-3001-DU-LH – Frequently Asked Questions

1) How much door weight will the International Door Closers OP-3001 offset pivot set carry?
The OP-3001 3/4 inch offset pivot set is rated for doors up to 125 lbs. That covers most flush aluminum and hollow metal doors, but if you're hanging a heavy timber or glass-and-metal leaf above that weight, step up to a heavy duty pivot like the Don-Jo BP-1 bottom pivot, which is listed at 600 lb capacity in the same 3/4 inch offset.
2) Is the OP-3001 pivot set handed, and how do I order the right hand?
Handing matters. The OP-3001 is a handed pivot set, sold as Left Flush Door or Right Flush Door, so you have to know which way the door swings before ordering. Pick the handing first, then the finish: aluminum or storefront bronze.
3) Can I adjust door height after the OP-3001 pivots are installed?
Yes, there's 1/8 inch of vertical adjustment built into the set, which is what you use to level the door and even up the head and threshold clearance after hanging without re-prepping anything.
4) What's inside the OP-3001 pivots, and will they hold up on a high traffic entrance?
This is a commercial-rated set. The top frame portion runs an Oilite bronze bushing, the top door portion has a case hardened spring loaded pin, the bottom door portion uses a full race ball bearing, and the floor/jamb portion has a case hardened stud. The ball bearing bottom is what carries the load and keeps the swing smooth on a door that cycles all day.
5) What is the difference between the IDC 3000 Series pivots and the 5000 Series?
On the 3000 Series, the top door portion uses a case hardened spring loaded pin and the floor/jamb portion a case hardened stud. The 5000 Series swaps those for a case hardened fixed pin in the top door portion and a stainless steel stud in the floor/jamb portion. Go stainless on the 5000 where the sill sees weather or washdown.
6) Does the OP-3001 pivot set carry a fire rating?
For a fire rated opening, look at the Don-Jo BP-1 or BP-2 bottom pivots, both of which we list as fire rated in the 3/4 inch offset, or the McKinney PH-4 pocket pivot hinge. Match the pivot to whatever the door and frame label requires.
7) I need extra support at the center of a tall door using 3/4 inch offset pivots. What part adds that?
The Don-Jo HRP-1 reinforcing pivot is built at 3/4 inch offset in heavy-duty steel with a satin chrome finish and is fire rated, so it matches the 3/4 inch offset geometry the OP-3001 set uses and adds an intermediate support point rather than replacing the top and bottom pivots.
8) Do these pivots need power or wiring for an access control door?
No. The OP-3001 is a purely mechanical pivot set with no electrical option, so any electrified hardware on the opening has to be handled by the lock, strike, or a separate power transfer.
