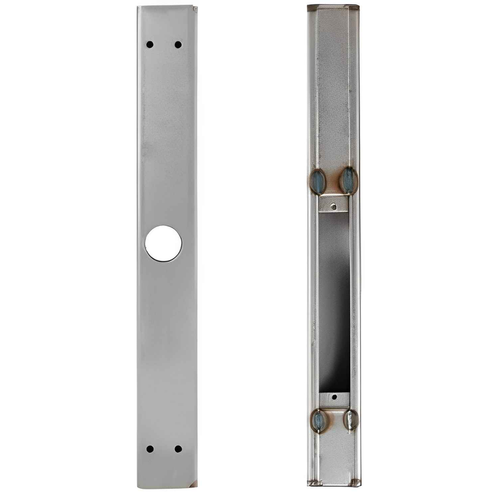

Keedex K-BXA/R-E/C Weldable Box
Type:
- Mortise
Dimensions:
- 2 ”W x 13”H x 1 3/4”D
Backset:
- 1 1/8”
Materials Available:
- 14 Gauge Steel
Product Downloads:
Manufacturer Resources
Product Specs
- Series:
- K-BXA/R-E/C
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Gate Boxes
- Product Type:
- Gate Boxes
- Subcategory:
- Gate Boxes
- Commercial/Residential:
- Commercial
- Lock Type:
- Mortise
- Product Dimension:
- 2" W x 13" H x 1 3/4" D
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- 14 Gauge Steel
- Backset (Distance):
- 1-1/8"
- Department:
- Door Hardware
Keedex K-BXA/R-E/C – Frequently Asked Questions
1) What size gate frame or tube do I need for the Keedex K-BXA/R-E/C gate box?
The box body measures 2" W x 13" H x 1 3/4" D, so the gate frame member has to accept a pocket that deep and that tall. It is a narrow style weldable box, so it is meant for narrow tube or channel gate frames rather than wide stile openings. Check your tube face width against the 2 inch dimension before you cut the pocket.
2) What backset does the Keedex K-BXA/R-E/C weldable gate box give me?
1-1/8 inch backset. That is the narrow backset used by narrow style mortise gate locks, not the 2-3/8 or 2-3/4 inch backsets found on bored residential locks. If your lock body is cut for a standard commercial backset, this box will not line up.
3) Does this Keedex gate box take a mortise lock or a cylindrical lock?
Mortise. The K-BXA/R-E/C is prepped as a mortise gate box, sized for narrow style A/R and Codelock type mortise gate locks. A cylindrical or bored lockset will not mount in it.
4) How does a weldable gate box get installed on a metal gate?
The K-BXA/R-E/C is welded directly into the gate frame member, not screwed on. You cut a pocket in the tube or channel to clear the 2" W x 13" H x 1 3/4" D body, drop the box in, and weld it in place. The box then carries the mortise lock at a 1-1/8 inch backset. No lock, cylinder, or trim comes with the box itself.
5) Do I get the lock with the Keedex K-BXA/R-E/C, or just the box?
Just the box. The K-BXA/R-E/C is the weldable steel housing that lets a narrow style mortise gate lock mount into a metal gate frame. You order the A/R or Codelock type mortise lock body, the cylinder, and any trim separately.
6) What gauge steel is the Keedex K-BXA/R-E/C made from, and will it hold up on an exterior gate?
14 gauge steel throughout. It is a commercial grade weldable box, so it is built to be welded into a metal gate frame and take gate slam and public traffic. Steel takes paint or powder coat after welding, which is how most installers finish it on an exterior gate.
7) Is the Keedex K-BXA/R-E/C handed?
There is one model, K-BXA/R-E/C, with no left or right hand option to specify. Handing is determined by the mortise lock body you install in it, not by the box.
