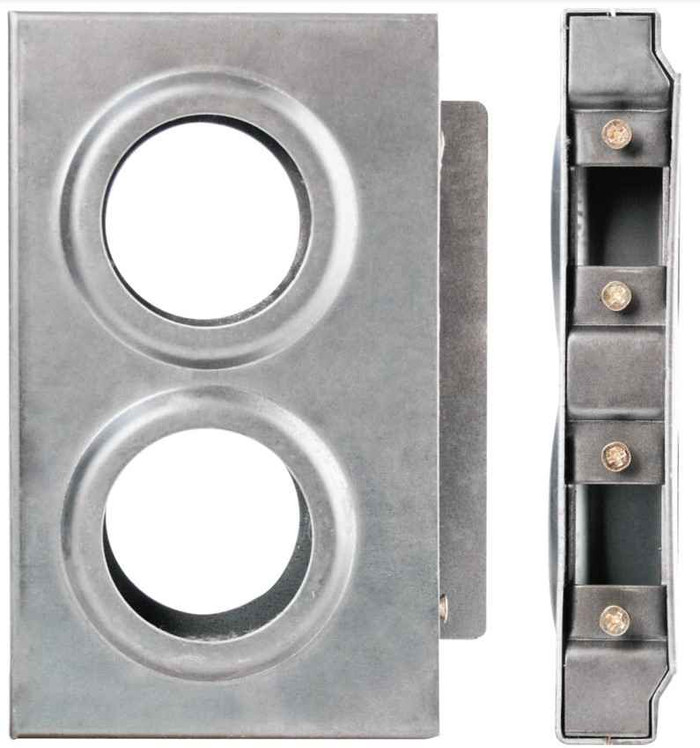

Keedex K-BXDBL-ES Slim Double Gate Box 14 Gauge Steel
Type:
- 2 1/8” Cylindrical
Dimensions:
- 4 3/4 ”W x 7 1/2”H x 1 ”D
Backset:
- 2 3/8”
Materials Available:
- 14 Gauge Steel
Product Downloads:
Manufacturer Resources
Product Specs
- Series:
- K-BXDBL-ES
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Gate Boxes
- Product Type:
- Gate Boxes
- Subcategory:
- Gate Boxes
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Product Dimension:
- 4 3/4" W x 7 1/2" H x 1" D
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- 14 Gauge Steel
- Backset (Distance):
- 2-3/8"
- Department:
- Door Hardware
Keedex K-BXDBL-ES – Frequently Asked Questions
1) What is a Keedex K-BXDBL-ES gate box used for on a gate?
The K-BXDBL-ES is a weldable steel enclosure that houses a cylindrical lockset on a gate frame, where there is no door stile to bore. The box gives the lock a body to mount into and a backing for the trim on both sides. It is built for a 2-1/8 inch cylindrical prep at a 2-3/8 inch backset, and the shell is 14 gauge steel.
2) Will a standard cylindrical lockset fit the Keedex K-BXDBL-ES gate box?
It fits a lock with a 2-1/8 inch cross bore and a 2-3/8 inch backset, which is the standard prep on most cylindrical knob and lever locks. A lock ordered on the 2-3/4 inch backset will not line up, so check the backset on the lock before you weld the box in.
3) What does the double in Keedex double gate box mean?
Double refers to the box being prepped on both faces, so trim mounts on the inside and the outside of the gate rather than the lock being accessible from one side only. Single boxes back only one face. Both faces work off the same 2-1/8 inch cylindrical prep.
4) How many versions of the Keedex K-BXDBL-ES do I need to choose from?
One. The K-BXDBL-ES ships as a single configuration in 14 gauge steel at 4-3/4 by 7-1/2 by 1 inches, so there is no finish or size decision to make on the order.
