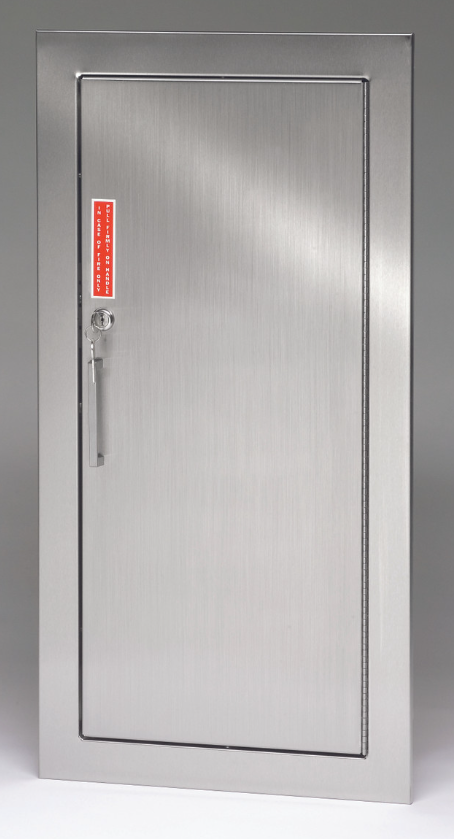

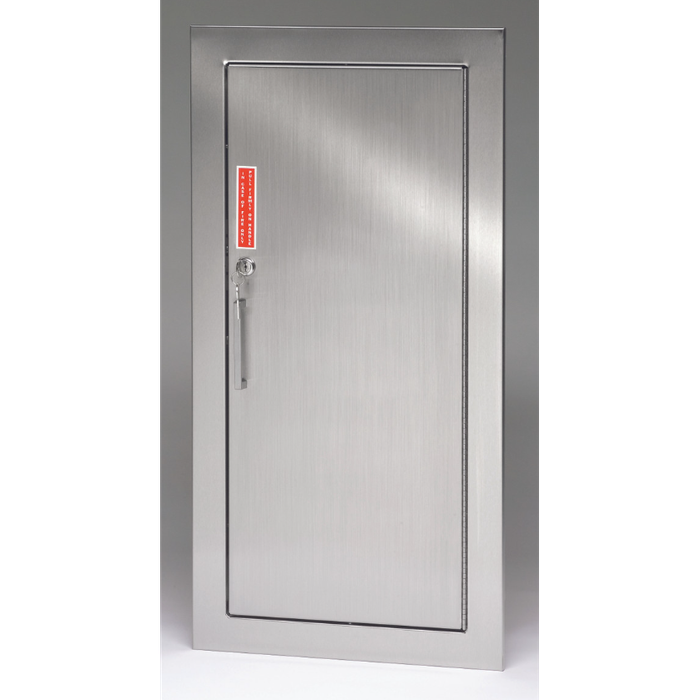

Larsens 2409 Fire Extinguisher Cabinet, Architectural Series, ADA Compliant, 10 lb, Stainless Steel, Non-Fire-Rated, Full Glass/Horizontal Duo/Vertical Duo/Solid Door

Larsens 2409 Fire Extinguisher Cabinet, Architectural Series, ADA Compliant, 10 lb, Stainless Steel, Non-Fire-Rated, Full Glass/Horizontal Duo/Vertical Duo/Solid Door

(No reviews yet) Write a Review

Model: SS2409R4SD
From the Architectural Collection
$328.37
Selected Door Style is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$328.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Larsens Architectural Series 2409 — 10 lb Capacity | Non-Fire-Rated | Stainless Steel Door

The Larsens 2409 Architectural Series fire extinguisher cabinet delivers a clean, institutional-grade stainless steel profile in a 10 lb capacity enclosure. Available recessed, semi-recessed, or surface-mounted, with your choice of door style, handle, and lock configuration to match any building specification.

Inside Box Dimensions: 24"H × 9.5"W × 6"D (60.9 cm × 24.1 cm × 15.2 cm)

  • Door & Trim: One-piece, #4 finish 304 stainless steel — hollow-metal tubular design
  • Box Construction: Surface-mounted stainless steel cabinets have a box constructed entirely of 304 stainless steel with #4 finish; recessed and semi-recessed cabinets use heavy-gauge white baked enamel steel box
  • Door Styles Available: Full Glass, Horizontal Duo, Vertical Duo, Solid
  • Mounting: Recessed, semi-recessed, or surface-mounted
  • Handle Options: Recessed or non-recessed
  • Lock: Included or not included
  • ADA Compliant: Must be mounted with leading edge at or below 27" from finished floor to comply with ADA wall projection guidelines
  • Fire Rating: Non-fire-rated

LARSEN-LOC® OPTION

All door styles are available with the exclusive Larsen-Loc® — an emergency-access mechanism that allows the cabinet door to be opened by pulling sharply on the handle, without breaking glass. A factory-applied decal reads: "IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE." The Larsen-Loc® is compatible with every door style, including solid metal doors, making it suitable for gymnasiums and institutional settings where glazing is not appropriate. The Solid Door with Larsen-Loc® can also be specified as an Institutional Door (key-only emergency access) by deleting the pull handle and decal.

VIGILANTE ALARM OPTION

Larsen's exclusive Vigilante Alarm provides additional protection for the cabinet's life safety contents. Constructed of high-impact plastic, plunger-activated, and powered by a heavy-duty 9V battery (included). The on/off jack allows authorized personnel to service the cabinet's contents without triggering the alarm. Helps reduce theft losses, prolong extinguisher life, and safeguard fire department valves, hose, and other equipment.

ADDITIONAL NOTES

  • Inside box depth is 4¾" when supplied with aluminum door and trim; AL2409-5R and AL2409-R7 have 1¼" square trims
  • Trimless cabinets must be installed before drywall; plaster stops must be behind the drywall — not recommended for block wall installation
  • Deduct ¾" from H × W dimensions for cabinets with aluminum door and trim (does not apply to "FS" fire-rated option)

DECAL OPTIONS

Die-cut letters are available in standard colors (red, black, or white) and standard designs (vertical, horizontal, or Type A). Custom lettering, special colors, and pictorial graphics are available on request.

Manufacturer Resources

Larsens Catalog

Product Specs

Cabinet Door Frame Material:
Stainless Steel
Cabinet Inside Box Height (inches):
24
Cabinet Inside Box Width (inches):
9.5"
Cabinet Inside Box Depth (inches):
6
ADA:
Yes
Cabinet Style:
Architectural
Door Material:
Stainless Steel
Extinguisher Capacity:
10LB
Collection:
Architectural
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
No
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens SS2409R4SD – Frequently Asked Questions

1) What wall depth do I specify when ordering a recessed Larsens 2409 extinguisher cabinet?
Wall depth is a build choice on the 2409: 2 inch, 2-1/2, 3, 4, 5, 6-1/4, or 6-1/2 inch, plus a surface mounted version for walls you cannot cut into. The box is 6 inches deep inside, so the 6-1/4 and 6-1/2 inch options bury it in the wall and the door face finishes flush. Pick a shallower depth and the cabinet runs semi-recessed, standing proud of the wall by roughly the difference: about 4 inches of box out in the room on the 2 inch option, about 1 inch on the 5 inch option. Measure the actual cavity depth of your partition, not the stud size, before you pick.
2) Is the Larsens 2409 fire rated, and can I recess it into a fire-rated wall?
Non-fire-rated. On a standard partition or a surface mount that is not an issue, but cutting a non-rated cabinet into a rated wall assembly breaks the rating of that wall, so it is the wrong box for a rated corridor, stair enclosure, or shaft wall. Larsens designates its fire-rated construction with the FS suffix, and that is the version to specify where the assembly has to hold its rating. If the cabinet is going on a non-rated wall or the drawings do not call out a rated assembly at that location, the 2409 as built is fine.
3) How high do I mount the Larsens 2409 cabinet to stay ADA compliant?
Leading edge at or below 27 inches from finished floor. That is the mounting condition for the 2409 to comply with ADA wall projection guidelines, and it is what matters on any build that leaves the box out in the circulation path, so surface mounted and the shallower semi-recessed wall depths. Order it fully recessed into a 6-1/4 or 6-1/2 inch wall and the door finishes in the wall plane with nothing projecting, so the 27 inch ceiling stops driving the mounting height.
4) Is the entire Larsens 2409 cabinet stainless steel, or only the door?
Depends on how you mount it. Door and trim are always one-piece 304 stainless with a #4 finish, hollow metal tubular construction. Order it surface mounted and the box is 304 stainless with a #4 finish too, the whole enclosure. Order it recessed or semi-recessed and the box buried in the wall is heavy-gauge white baked enamel steel, not stainless, with only the visible door and trim in stainless. For a wash-down room, a coastal or exterior-adjacent location, or a kitchen where the box itself takes moisture, specify the surface mounted stainless build.
5) Which door style should I order for a school gym or another building where glass in the door is a problem?
Go solid. The 2409 comes in full glass, horizontal duo, vertical duo, and solid, and the solid metal door is the one Larsens points at for gymnasiums and institutional settings where glazing is not appropriate. It still takes the Larsen-Loc emergency release, so the extinguisher stays reachable in a fire without a key and without anything to break. Full glass is the opposite end, the clearest sightline to the extinguisher and its gauge for monthly walk-through inspections. Horizontal duo and vertical duo are the other two faces offered.
6) How does someone get the extinguisher out of a Larsens cabinet in a fire without breaking the glass?
The Larsen-Loc option handles that. Pull sharply on the handle and the door releases, no glass to break and no key needed. Cabinets ordered with it carry a factory-applied decal reading IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE. It works with every door style offered on the 2409, solid metal included, which is why it shows up in gyms, schools, and correctional-type settings. If you want the opposite behavior, the solid door with Larsen-Loc can be specified as an Institutional Door, which makes emergency access key-only by deleting the pull handle and the decal.
7) We keep losing extinguishers out of our cabinets. Is there an alarm option on the Larsens 2409?
Larsens' Vigilante Alarm is the add-on for exactly that. High-impact plastic housing, plunger activated, powered by a heavy-duty 9V battery that comes with it, and it sounds when the cabinet is opened. There is an on/off jack so your fire tech or maintenance staff can pull the extinguisher for its annual service without setting it off. It is aimed at theft and tampering across extinguishers, fire department valves, and hose, not at detecting fire, so it does not replace anything on the alarm system.
8) Should I order the Larsens 2409 with a lock or without one?
Both are build options on the 2409, so it is a decision you make on the order form rather than a separate part. Lock it where tampering or walk-off is the problem, particularly in public lobbies, schools, and multi-family common areas, and pair it with the Vigilante Alarm if you also want to know when the door has been opened. Leave it unlocked where immediate access matters more than security. If you want it secured but still openable in a fire without hunting for a key, that is the Larsen-Loc: a sharp pull on the handle opens it. Going the other direction, the Institutional Door build makes access key-only.
9) I need to match the satin stainless cabinets already installed across our building. What finish is the Larsens 2409 door?
#4 finish on 304 stainless, one-piece door and trim, hollow metal tubular construction. #4 is the standard architectural satin brush, the same finish used on institutional washroom accessories and stainless door hardware trim, so it reads consistently against an existing #4 run. The 2409 is the 10 lb size in Larsens' Architectural Series, with a 24 by 9.5 by 6 inch inside box, so if the rest of your building is on Architectural Series cabinets the face detail carries through.
