Larsens 2409 Fire Extinguisher...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$324.30
$185.49

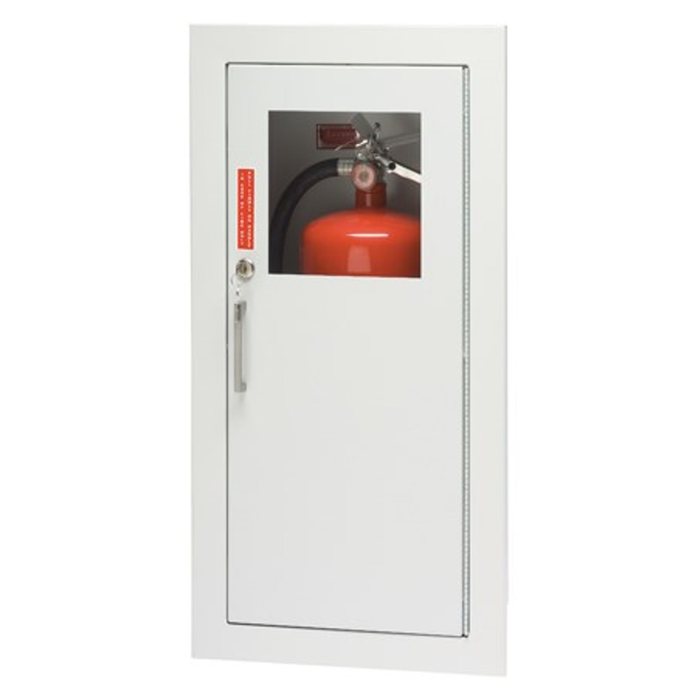

Larsens 2409 Fire Extinguisher Cabinet - Architectural Series, ADA Compliant, 5 lb Capacity, Steel Door, Non-Fire Rated

Larsens 2409 Fire Extinguisher Cabinet - Architectural Series, ADA Compliant, 5 lb Capacity, Steel Door, Non-Fire Rated

(No reviews yet) Write a Review

Model: 2409R3VDRECL
From the Architectural Collection
$324.30
$185.49
Selected Door Style is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$324.30
$185.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Larsens 2409 Architectural Series Fire Extinguisher Cabinet: 5 lb, ADA Compliant, Steel Door

The Larsens 2409 Architectural Series is a recessed fire extinguisher cabinet for commercial, institutional, and multi-family applications where ADA compliance and a clean architectural finish are required. Available in three wall depths (3", 4", and 5-1/4") and five door styles, this cabinet fits virtually any wall construction and design specification. To comply with ADA wall projection guidelines, mount with the leading edge at or below 27" from finished floor.

Box Specifications

  • Nominal inside box: 24" H x 9.5" W x 5" D
  • Rough opening: 25" H x 10.5" W
  • Outside trim flange: 27.5" H x 13" W
  • Heavy-gauge steel box with white baked enamel finish
  • Available wall depths: 3", 4", 5-1/4"
  • Inside box depth is 4-3/4" when supplied with aluminum door and trim
  • Deduct 3/4" from H x W dimensions for cabinets with aluminum door and trim (does not apply to "FS" fire-rated option)
  • Trimless cabinets must be installed before drywall; not recommended for block wall installation

Door & Trim Specifications

Steel trims and doors are one piece, cold-rolled steel with a standard white baked acrylic enamel finish (usable as finish or prime coat). Aluminum trims are extruded or fabricated with mitered corners and clear satin anodized finish standard - specify prefix "AL" before the model number. Stainless steel trims and doors are one piece, #4 finish 304 stainless steel - specify prefix "SS" before the model number. All steel and stainless steel doors use a tubular hollow-metal design.

Larsens 2409 door style options

Available Door Styles

  • Full Glass Door
  • Solid Door
  • Horizontal Duo Door
  • Vertical Duo Door
  • Institutional Door

Door style images are shown for reference. Select your door style, lock option, and handle style (standard or recessed) when configuring your order above.

Larsen-Loc® Option

All door styles are available with the exclusive Larsen-Loc®. The Larsen-Loc® provides emergency access to a locked cabinet without breaking glass - simply pull sharply on the handle. A factory-applied decal reads: "IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE." The Larsen-Loc® is compatible with all door styles, including solid metal doors, making it suitable for gymnasiums and locations where glazing is not appropriate. The Solid Door with Larsen-Loc® can also be specified as an Institutional Door (key-access only) by deleting the pull handle and decal.

Larsen-Loc mechanismLarsen-Loc door detail

Vigilante Alarm Option

Larsen's exclusive Vigilante Alarm provides additional protection for the cabinet's life-safety contents. Constructed of high-impact plastic and plunger-activated, it includes a heavy-duty 9V battery. The on/off jack allows authorized personnel to service cabinet contents without triggering the alarm. Helps reduce theft losses and prolongs extinguisher service life.

Vigilante Alarm front viewVigilante Alarm side view

Cabinet Identification & Decal Options

Die-cut letters are available in standard colors (red, black, or white) and standard designs (vertical, horizontal, or Type A). Custom lettering, special colors, and pictorial graphics are available when specified.

Larsens cabinet decal examples

Resources

Manufacturer Resources

Larsens Catalog

Product Specs

Cabinet Door Frame Material:
Steel
Cabinet Inside Box Height (inches):
24"
Cabinet Inside Box Width (inches):
9.5"
Cabinet Inside Box Depth (inches):
5"
Outside Trim Flange Height (inches):
27.5"
Outside Trim Flange Width (inches):
13"
Rough Opening Height (inches):
25"
Rough Opening Width (inches):
10.5"
ADA:
Yes
Cabinet Style:
Architectural
Cabinet Height:
24"
Cabinet Width:
9.5"
Cabinet Depth:
5"
Door Material:
Steel
Extinguisher Capacity:
5LB
Collection:
Architectural
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
No
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens 2409R3VDRECL – Frequently Asked Questions

1) Is the Larsens 2409 cabinet ADA compliant, and how high do I mount it?
The 2409 is ADA compliant, but compliance depends on how you set it. Mount the cabinet with the leading edge at or below 27 inches from finished floor to stay inside the ADA wall projection guideline. That matters most when the cabinet projects into a corridor rather than sitting fully buried in the wall. Fully recess it in a deep enough wall and projection stops being the issue at all.
2) Can a Larsens 2409 cabinet go into a fire-rated wall or corridor partition?
No. The 2409 is a non-fire-rated cabinet, so recessing it into a rated partition cuts the assembly and breaks the rating. In a rated wall you need Larsens' fire-rated version, which carries the FS designation, or you surface mount a non-rated cabinet on the face of the wall so the partition is never opened. In non-rated construction, which is most corridors, lobbies and multi-family common areas, the 2409 recesses without any of that.
3) Which wall depth do I order on a Larsens 2409, 3 inch, 4 inch or 5-1/4 inch?
Order the wall depth that matches the wall you are cutting into, not the cabinet size. The choices are 3 inches, 4 inches and 5-1/4 inches. The box itself is 5 inches deep inside, so in a 5-1/4 inch wall it buries and finishes flush, while in a 3 inch wall it cannot sit fully back and the cabinet stands semi-recessed into the room. That is the case where the 27 inch leading-edge mounting rule earns its keep. Standard 2x4 framing with drywall both faces lands near 4-1/2 inches, so measure your actual wall thickness before you pick.
4) I need a locked extinguisher cabinet but the fire marshal wants access without a key. What are my options?
The Larsen-Loc handles that. It is available on every door style for the 2409, and it lets anyone open a locked cabinet in an emergency by pulling sharply on the handle, with no glass to break and no key to find. A factory decal on the door reads IN CASE OF FIRE ONLY, PULL FIRMLY ON HANDLE. If you want the opposite, a cabinet that opens by key only, that is the Institutional Door: the same solid door with the pull handle and decal deleted. Locks are ordered either way, with or without.
5) What door style should I use for a gym, school hallway or another spot where glass gets broken?
Skip the glazed doors and take the Solid Door or the Institutional Door. Both are steel with no glazing to break, and Larsens calls out the solid door with Larsen-Loc specifically for gymnasiums and other places where glazing is not appropriate. The Institutional Door goes further: key access only, no pull handle and no decal, which is the one to spec where you want the cabinet closed to everyone but staff. The glazed and duo doors, full glass, horizontal duo and vertical duo, are the ones that let people see the extinguisher, which is usually what you want in an office corridor and not what you want in a gym.
6) What do I have to specify when ordering a Larsens 2409 cabinet?
Four things decide the part. Wall depth: 3 inches, 4 inches or 5-1/4 inches, matched to your wall. Door style: full glass, solid, horizontal duo, vertical duo or institutional. Handle style: recessed or not recessed, where recessed keeps the pull from standing out into a tight corridor. And lock: included or not included. Beyond those, identification lettering, a Vigilante Alarm and a fire handle are add-ons rather than part of the base cabinet, so decide on them at the same time and order them together.
7) Can I get the Larsens 2409 in stainless steel or aluminum instead of the painted steel door?
Yes, and it changes the model call-out. Steel is standard: one-piece cold-rolled steel door and trim in white baked acrylic enamel. For extruded or fabricated aluminum with mitered corners in clear satin anodized, put the prefix AL in front of the model number. For one-piece 304 stainless with a number 4 finish, use the prefix SS. One thing to plan for on the aluminum version: inside box depth becomes 4-3/4 inches and you deduct 3/4 inch from the height and width dimensions, so confirm your extinguisher still clears before you commit. That deduction does not apply to the FS fire-rated option.
8) Can a Larsens 2409 cabinet be recessed into a block wall or an existing finished wall?
The trimmed 2409 can. Its outside flange finishes at 27.5 by 13 inches over a 25 by 10.5 inch opening, so the trim covers the cut edge on an existing wall or a masonry opening. What will not work in that situation is a trimless cabinet: those have to be installed before the drywall goes on and Larsens does not recommend them for block wall installation. So for new framing with the drywall still off, either version is on the table; for a retrofit into a finished or masonry wall, order the trimmed cabinet.
9) Does the Larsens 2409 cabinet come painted, and can I paint it to match my corridor?
It arrives finished. The steel box carries a white baked enamel finish and the steel door and trim a white baked acrylic enamel, and Larsens states that enamel works either as the final finish or as a prime coat. So you can hang it as-is in a white corridor, or paint over the trim to match a color scheme without stripping or priming it first. If you would rather not paint at all, the anodized aluminum and number 4 stainless versions give you a metal finish out of the box.
10) How do I stop extinguishers from walking out of the cabinets in my building?
Order the 2409 with the Vigilante Alarm. It is a plunger-activated unit in high-impact plastic that sounds when the cabinet is opened, running on a heavy-duty 9V battery, so it needs no wiring to the building. The part that keeps maintenance from hating it is the on/off jack: your staff can shut the alarm off to do the monthly and annual extinguisher checks, then re-arm it, without a false alarm every inspection. Pairing it with a locked door is the usual setup in a school or apartment common area.
