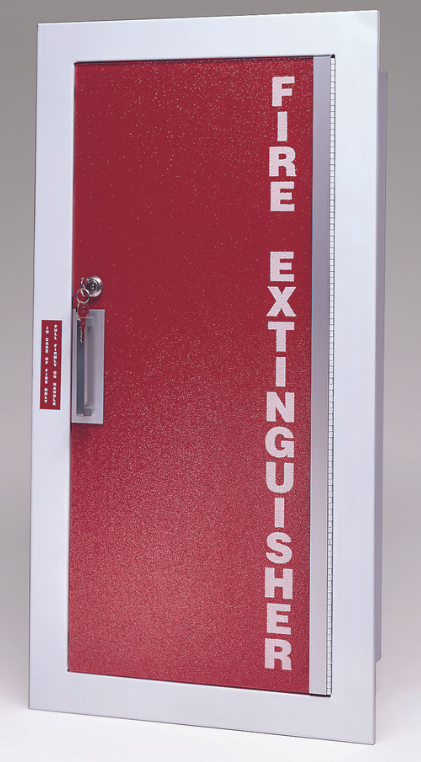

Larsens Gemini 24096 Fire Extinguisher Cabinet - ADA Compliant, 10 lb Capacity, Steel Body, Acrylic Door, Non-Fire Rated

Larsens Gemini 24096 Fire Extinguisher Cabinet - ADA Compliant, 10 lb Capacity, Steel Body, Acrylic Door, Non-Fire Rated

(No reviews yet) Write a Review

Model: LARS-GEMINI-24096R-10LB-S-2-25-RE-NO-NO
From the Gemini Collection
$182.59
Selected Door Color is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Larsens Gemini Series 24096 - 10 lb Fire Extinguisher Cabinet, Non-Fire Rated, ADA Compliant

The Larsens Gemini Series 24096 is a steel-body, frameless acrylic-door fire extinguisher cabinet designed for 10 lb extinguishers. It is ADA compliant when mounted with its leading edge at or below 27" from finished floor and specified with Larsen's recessed handle. Available in surface, semi-recessed, and fully recessed configurations across a wide range of wall depths and trim projections.

Inside Box Dimensions

  • Height: 24" (60.9 cm)
  • Width: 9.5" (24.1 cm)
  • Depth: 6" (15.2 cm)

Gemini Series Overview

The Gemini Series is Larsen's aesthetically focused cabinet line, identical in construction to the Architectural Series but fitted with a frameless smooth or textured acrylic door in place of a conventional hollow-metal door frame. Specify using the prefix "G" as part of the model number.

Door Specification

Standard door material is smooth or textured acrylic. When lettering is specified, it is applied to the back of the door to prevent damage. All doors include a satin-finish pull handle, self-adjusting roller catch, and a continuous piano hinge in a finish matching the trim. Door color options include Clear, Red, Black, and White. (Door images shown are for reference - select your door style and color using the options above.)

ADA Compliance Notes

  • To comply with ADA wall-projection guidelines, mount with leading edge at or below 27" from finished floor.
  • ADA compliance requires Larsen's recessed handle option.

Installation Notes

  • Inside box depth is 4 3/4" when supplied with aluminum door and trim. The AL G2409-5R and AL G2409-R7 have 1 1/4" square trims.
  • Trimless cabinets must be installed before drywall; plaster stops must be behind the drywall. Not recommended for block wall installation.
  • Deduct 3/4" from H x W dimensions for cabinets with aluminum trim (does not apply to "FS" fire-rated option).

Larsen-Loc® Option

All door styles are available with the exclusive Larsen-Loc®. During an emergency, the cabinet door opens by pulling sharply on the handle - no glass breakage required. Factory-applied decal reads: "IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE." The Larsen-Loc® is compatible with all door styles including solid metal doors, making it suitable for gymnasiums and institutional settings where glazing is not appropriate. A Solid Door with Larsen-Loc® can also be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal.

Decal & Lettering Options

Die-cut letters are available in standard colors (red, black, white) and standard designs (vertical, horizontal, Type A). Custom lettering, special colors, and pictorial graphics are available on request.

Larsens Gemini decal and lettering options

Vigilante Alarm Option

Larsen's exclusive Vigilante Alarm provides additional protection for the cabinet's life-safety contents, helping reduce theft losses and prolong extinguisher life. Constructed of high-impact plastic, plunger-activated, with a heavy-duty 9V battery included. An on/off jack allows authorized personnel to service cabinet contents without triggering the alarm.

Vigilante Alarm for Larsens fire extinguisher cabinetVigilante Alarm detail

Manufacturer Resources

Larsens Catalog

Product Specs

Door Material:
Acrylic
Extinguisher Capacity:
10LB
Surface Mounted:
No
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
6"
ADA:
Yes
Cabinet Style:
Gemini
Collection:
Gemini
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
No
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens LARS-GEMINI-24096R-10LB-S-2-25-RE-NO-NO – Frequently Asked Questions

1) Will the Larsens Gemini 24096 cabinet hold a 10 lb fire extinguisher?
Yes. The Gemini 24096 is sized for 10 lb extinguishers, with an inside box of 24 inches high by 9.5 inches wide by 6 inches deep. Measure your extinguisher including the handle and gauge assembly against that 24 inch height and 9.5 inch width before ordering, since a 10 lb unit with a wide bracket is the tightest fit in a box this narrow.
2) Is the Larsens Gemini 24096 fire rated? Can I put it in a rated corridor wall?
No. The Gemini 24096 is a non-fire-rated cabinet. If the cabinet is going into a fire-rated wall assembly, this one will not maintain the rating of that wall and you need Larsen's fire-rated cabinet construction instead. In a non-rated partition it is fine.
3) What do I have to specify to make a Larsens Gemini extinguisher cabinet ADA compliant?
Two things, and one of them is an install condition rather than an option. Order the cabinet with the recessed handle, not the standard projecting pull, and mount it with the leading edge at or below 27 inches from finished floor. Miss either one and the ADA wall-projection claim does not hold. The recessed handle is one of the two handle choices on the Gemini 24096, so it is a decision made at order time.
4) Can I install a trimless Larsens Gemini cabinet in an existing block wall or finished drywall?
No on both counts. Trimless Gemini cabinets have to go in before the drywall, with the plaster stops sitting behind the board, and block wall installation is not recommended. For a retrofit into a wall that is already finished, or into masonry, specify a trim so the flange covers the cut opening. That is what the 1.5 inch through 4.5 inch trim options are for.
5) Does the rough opening change if I order the Larsens Gemini cabinet with aluminum trim?
Yes, and it is worth catching before the framer cuts. Deduct 3/4 inch from the height and width dimensions for cabinets supplied with aluminum trim. Inside box depth also drops to 4-3/4 inch when the cabinet comes with an aluminum door and trim, rather than the 6 inch depth of the standard box, so check your extinguisher clears that shallower cavity. The deduction does not apply to the FS fire-rated option.
6) What is the difference between a Larsens Gemini cabinet and the Architectural Series?
Construction is the same. The Gemini swaps the conventional hollow-metal door frame for a frameless smooth or textured acrylic door, so the face reads as a clean panel rather than a framed door. It is the choice when the cabinet has to disappear into a finished lobby or corridor wall. Gemini models carry a G prefix in the model number.
7) Do I have to break the glass to get the extinguisher out of a Larsens cabinet?
Not with the Larsen-Loc option. The door opens by pulling sharply on the handle, no breakage involved, and it ships with a factory-applied decal reading IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE. Larsen-Loc works with every door style including solid metal, which is why it turns up in gymnasiums and institutional buildings where glazing is not wanted. Delete the pull handle and decal and the same solid door becomes an institutional door, key access only.
8) What door colors does the Larsens Gemini 24096 come in, and does the color affect whether staff can see the extinguisher?
Four: clear, red, black, and white. Clear acrylic is the one to pick if the inspector or your own walkthrough needs the extinguisher and its gauge visible without opening the door. Red, black, and white are opaque and get chosen to match the wall or the building standard, in which case the lettering or the international extinguisher symbol on the face is what identifies the cabinet. Lettering is applied to the back of the acrylic so it cannot be scuffed off.
9) How do I stop people walking off with the extinguisher out of a wall cabinet?
Two routes on the Gemini 24096, and they solve different problems. A lock keeps the door shut to anyone without a key, which suits a school or public corridor but slows down emergency access, so it is usually paired with the Larsen-Loc or institutional door setup. The Vigilante Alarm leaves the door usable and instead sounds when it is opened: high-impact plastic, plunger-activated, 9V battery included, with an on/off jack so your fire service tech can do the annual inspection without setting it off. Property managers losing extinguishers to tampering generally want the alarm rather than the lock.
10) What comes on the door of a Larsens Gemini cabinet without ordering extras?
Every Gemini door includes a satin-finish pull handle, a self-adjusting roller catch, and a continuous piano hinge finished to match the trim. What you add separately is the identification: die-cut lettering in red, black, or white in vertical, horizontal, or Type A layouts, the international extinguisher symbol, and wall signs. If the cabinet is going somewhere the extinguisher must be findable from down the corridor, budget for a projecting sign as well as the face lettering.
11) Can I get custom lettering or a graphic on a Larsens fire extinguisher cabinet for a building standard?
Yes. Beyond the standard die-cut letters in red, black, and white and the standard vertical, horizontal, and Type A layouts, custom lettering, special colors, and pictorial graphics are available on request. Useful when a campus or hotel group is standardizing cabinet faces across every property.
