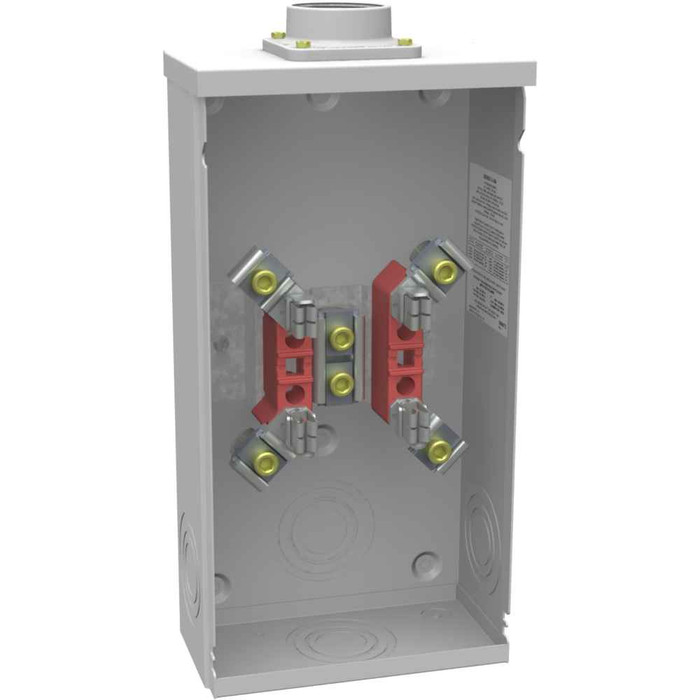

Milbank 200A Ring Type Meter Socket 1 Phase 600V with 2 Inch Hub

Milbank 200A Ring Type Meter Socket 1 Phase 600V with 2 Inch Hub

Professional Single Position Meter Socket for Overhead Service Applications

The Milbank 200A Ring Type Meter Socket delivers reliable single-phase electrical metering with 600V AC rating and 4 terminal configuration. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable surface mount installation for overhead cable entry applications with 2 inch hub closing plate.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• 600V AC Single Phase: Compatible with standard residential and commercial voltage systems for versatile installation flexibility.
• 4 Terminal Ring Type Design: Provides secure lay-in terminal connections for both line and load side conductors from 6 AWG to 350 kcmil.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish.
• UL Listed Type 3R Enclosure: Meets rigorous safety standards for outdoor installations with protection against weather conditions.
• Glass Polyester Insulation: Ensures reliable electrical isolation and performance in demanding environmental conditions.
• 2 Inch Hub Configuration: Accommodates overhead cable entry with proper sealing and professional installation appearance.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: 2 Inch Hub
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 15.5 IN
• Product Length: 4.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.125L x 8W x15.5H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Small Commercial Buildings
• Multi-Unit Properties
• Professional Offices
• Retail Establishments
• Light Industrial Facilities
• Overhead Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation provides dependable electrical performance for professional electrical installations.
