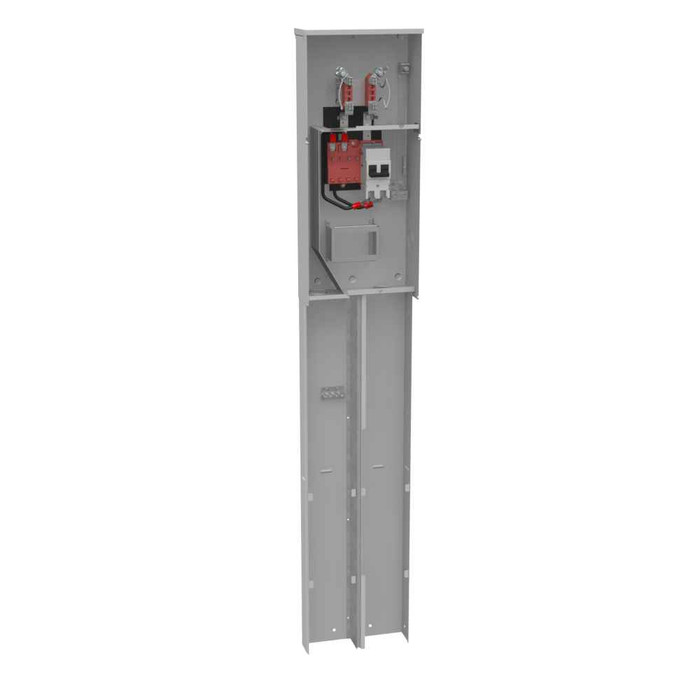

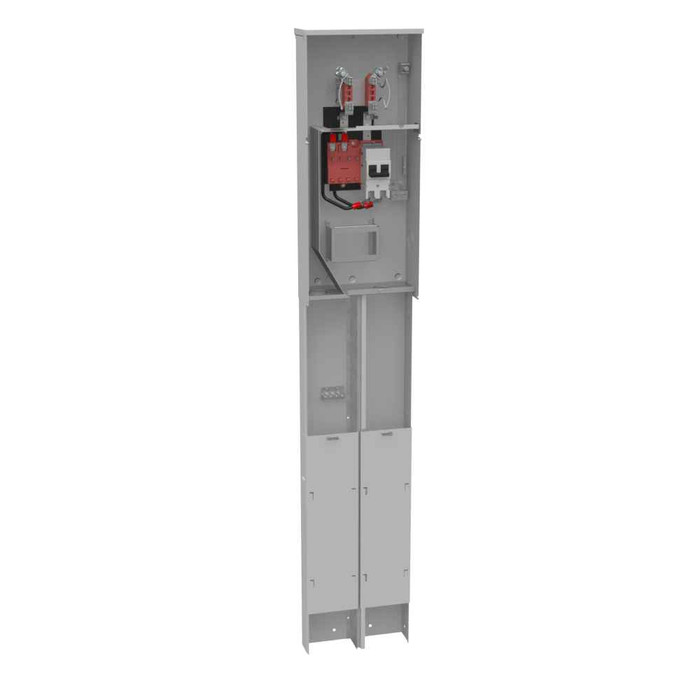

Milbank U5706 4 Terminal Ringless Meter Socket - Plain Top Horn Bypass, 200A Main Breaker, Single Pedestal Pad Mount Direct Bury

Milbank U5706 4 Terminal Ringless Meter Socket with 200A Main Breaker Horn Bypass Single Pedestal Direct Bury System

(No reviews yet) Write a Review

Model: U5706-O-200S-KK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,603.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank U5706 4 Terminal Ringless Meter Socket with 200A Main Breaker Horn Bypass Single Pedestal Direct Bury System

Professional temporary to final power metering solution with integrated main breaker protection

The Milbank U5706 4 Terminal Ringless Meter Socket delivers reliable single-phase power metering and distribution with integrated 200A main breaker protection. This professional pedestal-mounted system features horn bypass capability for temporary to final power applications, constructed with G90 galvanized steel and powder coat finish for durability in outdoor installations. The single power head design with 4 terminal configuration and underground cable entry provides versatile direct bury installation options for residential and commercial metering applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust power handling capacity for demanding residential and light commercial electrical loads with reliable performance.
  • Horn Bypass Provision: Enables temporary power connection during construction or maintenance while maintaining meter socket functionality and code compliance.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments with professional powder coat finish.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather resistance for outdoor installations with protection against rain and sleet.
  • Single Pedestal Direct Bury Design: Simplifies installation with 80-inch height pedestal mounting and underground cable entry for clean, professional appearance.
  • 4 Terminal Ringless Configuration: Provides secure electrical connections without compression rings for reliable meter interface and reduced maintenance requirements.
  • Integrated 200A Main Breaker: Offers overcurrent protection and disconnect capability in a single unit, reducing installation complexity and panel space requirements.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Temporary to Final Power
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Branch Circuits: 4
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: Single Power Head
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MHSP
  • Product Height: 80 IN
  • Product Length: 5.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 5.5L x 14W x80H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14 IN

Professional Applications

  • Residential New Construction and Service Upgrades
  • Commercial Building Electrical Services
  • Temporary Construction Power Distribution
  • Multi-Unit Residential Properties
  • Light Industrial Facilities
  • Utility Company Metering Installations
  • Direct Bury Underground Service Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification ensuring safety and weather resistance for demanding outdoor applications. The G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion protection, while the professional 4 terminal ringless design ensures secure connections and reduced maintenance requirements for years of dependable service.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Temporary to Final Power
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Main Breaker Size:
One 200 Ampere Main Breaker
Number Branch Circuits:
4
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
Single Power Head
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MHSP
Product Height:
80 IN
Product Length:
5.5 IN
Product Size:
5.5L x 14W x80H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
14 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4

Milbank U5706-O-200S-KK – Frequently Asked Questions

1) Will the Milbank U5706 meter socket work on a 320 amp or 400 amp service?
No. The U5706 pedestal is a 200 continuous ampere unit with one 200 ampere main breaker, single phase, rated up to 240 volts AC at 60 Hz. For a service sized above 200A you need a different pedestal entirely. Sizing the pedestal to the service is the first thing to settle, because the breaker is integral and cannot be swapped up.
2) Can the Milbank U5706 pedestal be set directly in the ground, or does it need a concrete pad?
It is a direct bury pedestal, mounted as a single pedestal with underground cable entry. The unit stands 80 inches overall, so a good portion of that height is buried below grade and the meter and breaker sit at working height above it. Service conductors come up through the bottom of the pedestal, not through a top hub, since the top is a plain top closing plate with no hub opening.
3) What does horn bypass on a Milbank meter socket actually do for me on a construction site?
Horn bypass lets the utility or an authorized worker jumper around the meter so power stays on with the meter pulled. On the U5706 that is what makes the temporary to final power sequence work: you set the pedestal once for construction power, and the same enclosure carries through to the permanent service without a second pedestal and a second trench. Many utilities require a bypass provision on 200A pedestal services, so check the local utility's meter spec before you order.
4) What is the difference between the Standard, Alliant Energy, and CECHA versions of the Milbank U5706?
Three orderable configurations exist: the standard U5706-O-200S-KK, the Alliant Energy version U5706-O-200S-KK-ALT, and the CECHA approved version U5706-O-200S-KK-CECHA. Utility-approved variants are built to a specific utility's or approval body's meter socket requirements. Order the one your serving utility accepts. If the utility is not Alliant and does not work off the CECHA list, the standard U5706-O-200S-KK is the one to pull.
5) Does the Milbank U5706 have room for branch circuits, or do I still need a separate panel?
There are 4 branch circuit positions along with the single 200A main, so a small load such as a well pump, a septic control, or a couple of site circuits can land right in the pedestal. Anything larger than four circuits needs a downstream panel fed from the main. There are no receptacles built in, so if you want GFCI convenience outlets for construction power you are adding them separately.
6) How much space do I need to lay out for a Milbank U5706 pedestal, and how far does it stick out?
The pedestal measures 5.5 inches long by 14 inches wide by 80 inches high. That 5.5 inch depth is what matters for setback: it is a slim profile, so it fits along a lot line or a drive edge where a pad-mounted cabinet would not. Plan the working clearance in front of it per code for a 200A service disconnect.
7) Will a Milbank U5706 pedestal hold up outdoors in rain and snow year round?
The enclosure is UL Listed and Type 3R, which covers outdoor use against falling rain and sleet. The body is G90 galvanized steel with a powder coat finish over it, so the steel carries a zinc coating under the paint rather than paint alone. Type 3R is not a washdown or submersion rating, so the buried portion of a direct bury pedestal is what handles ground contact, not the 3R enclosure itself.
8) Does the Milbank U5706 come with a ground bar for the grounding electrode and neutral?
Yes, equipment ground is a ground bar, so the pedestal comes ready to land your grounding electrode conductor and equipment grounds without adding a kit. The line and load terminals are lay-in type, which speeds up dressing in large 200A conductors underground compared with fighting a conductor into a closed lug.
9) Can I run overhead service conductors down into a Milbank U5706 pedestal?
Not as configured. Cable entry on the U5706 is underground, and the top is a plain top closing plate, so there is no hub opening for an overhead weatherhead riser. It is intended for an underground lateral coming up into the base. For an overhead drop you want a socket with a hub top instead.
10) Is one Milbank U5706 enough for a duplex or two units, or do I need one per meter?
One meter only. The U5706 is a single power head with one 200A main breaker, so it meters one service. Two dwelling units that each require their own meter need a two-position pedestal or two separate units. Where a property has several units on one master meter, a single power head still works, but the branch capacity in this enclosure is four circuits.
11) What UNSPSC code should I use to set up a Milbank U5706 in our procurement system?
The U5706 pedestal carries UNSPSC 39121102. For facility and government purchasing that need the commodity code on the requisition, that is the classification to enter for this meter socket.
