NGP 160V Vinyl Perimeter Seal ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$59.50

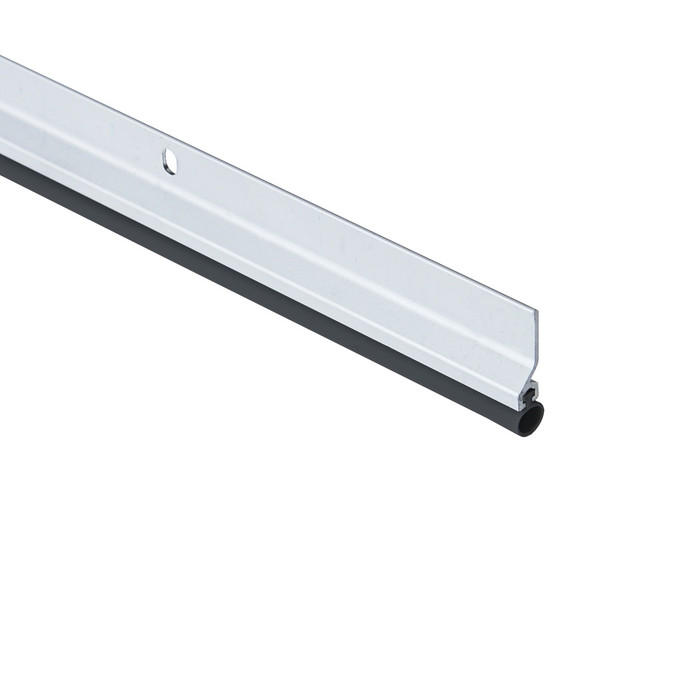

NGP 160V Vinyl Perimeter Seal 2 x 84" Length - 7/8" Holder Width - 1/4" Holder Height - 5/16" Insert Projection

NGP 160V Vinyl Perimeter Seal with Aluminum Holder - 84" Length - 7/8" x 1/4" Profile

(No reviews yet) Write a Review

Model: 160V-48INX84IN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 160V Vinyl Perimeter Seal with Aluminum Holder - 84" Length - 7/8" x 1/4" Profile

Professional Door Weatherstripping Solution

The NGP 160V Vinyl Perimeter Seal provides reliable weatherproofing for commercial door applications with its aluminum alloy 6063 T5 temper holder and thermoplastic polyvinyl chloride insert. This 84" length seal features precise 7/8" holder width, 1/4" holder height, and 5/16" insert projection dimensions for effective perimeter sealing. The system operates reliably in temperatures from 0 F to 140 F and includes #6 x 3/4" stainless steel mounting screws with slotted holes for installation adjustment.

Professional Features & Benefits

  • Precise Dimensions: 84" length with 7/8" holder width, 1/4" holder height, and 5/16" insert projection for accurate door perimeter sealing applications.
  • Durable Aluminum Construction: Aluminum alloy 6063 T5 temper holder provides structural integrity and corrosion resistance for long-term commercial use.
  • Temperature Performance: Operates effectively in temperature range from 0 F to 140 F for diverse climate conditions and applications.
  • Flame and Moisture Resistant: Thermoplastic polyvinyl chloride insert formulated with environmentally friendly bio-based plasticizer resists flame and moisture penetration.
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment during installation for optimal seal performance.
  • Complete Hardware Included: #6 x 3/4" stainless steel sheet metal screws furnished for secure mounting to door frames.
  • Professional Appearance: Mill aluminum finish and gray vinyl insert provide clean, professional appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Series: Vinyl Perimeter Seal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entrances
  • Educational Facility Door Systems
  • Healthcare Institution Environmental Control
  • Retail Store Climate Management
  • Industrial Facility Weatherproofing
  • Multi-Tenant Building Energy Efficiency
  • Government Building Environmental Sealing

Why Choose NGP Quality?

NGP weatherstripping products deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and environmentally friendly bio-based plasticizer formulation. The temperature-tested design operates reliably from 0 F to 140 F with flame and moisture resistance for demanding commercial applications. Engineered for long-term durability where consistent environmental control and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Vinyl Perimeter Seal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 160V-48INX84IN – Frequently Asked Questions

1) Will the NGP 160V perimeter seal fit my door frame stop, and how much space does it take up?
The 160V mounts to the frame stop with an aluminum holder that measures 7/8 inch wide by 1/4 inch high, and the gray vinyl insert projects 5/16 inch off that holder to meet the door face. So you need at least 7/8 inch of flat stop face to land the holder on, and about 5/16 inch of clearance between stop and door for the insert to compress against.
2) Is the NGP 160V a door bottom or door shoe? I need to seal under the door too.
It is not. The 160V is perimeter gasketing, meaning head and jambs only. The bottom of the door needs a separate part, either a door sweep, a door shoe on the door bottom, or an automatic door bottom. Order the 160V for the three sides of the frame and pair it with a bottom seal to close the opening all the way around.
3) Do I need to buy fasteners separately for the NGP 160V seal?
No, mounting hardware comes with it. The 160V is furnished with #6 x 3/4 inch stainless steel sheet metal screws, and the holder is punched with slotted holes so you can shift the strip in or out against the door face before you cinch the screws down. That slot is what lets you dial in insert compression after hanging.
4) Can I use the NGP 160V vinyl seal on an exterior door in a cold climate?
The 160V is rated for service from 0 F to 140 F. Below zero the vinyl insert is outside its tested range, so for openings that see sustained sub-zero winters a silicone-insert perimeter seal is the better call. Within that range the PVC insert resists both flame and moisture penetration.
5) Is there an alternative to the NGP 160V aluminum channel perimeter gasketing?
Cal-Royal makes a comparable part, the PG-601 aluminum channel perimeter gasketing with vinyl insert. It is the same basic construction: an aluminum channel carrying a vinyl bulb that mounts to the frame stop. Compare the holder width against your stop face before swapping, since the 160V needs 7/8 inch of stop to land on.
6) Is the Cal-Royal PG-601 an equivalent to the NGP 160V perimeter seal?
Both are aluminum channel perimeter gaskets that carry a vinyl insert, so they serve the same purpose on a commercial door frame. The Cal-Royal PG-601 is described as aluminum channel perimeter gasketing with a vinyl insert. The NGP 160V uses an aluminum alloy 6063 T5 temper holder measuring 7/8 inch wide by 1/4 inch high with a 5/16 inch insert projection, a thermoplastic PVC insert rated for 0 F to 140 F, slotted screw holes for positioning adjustment, and #6 x 3/4 inch stainless steel screws furnished. If the frame face you are mounting to is dimensioned around that 7/8 inch holder width, confirm the Cal-Royal channel profile before treating it as a drop-in swap.
7) What should I use instead of the NGP 160V for sealing the bottom of a door rather than the perimeter?
The NGP 160V is a perimeter seal, meaning it mounts to the head and jambs of the frame and the door closes against the vinyl insert. It is not a bottom seal. The Cal-Royal PG-601 sits in a door shoe product family, so that line is the place to look for a shoe-style bottom treatment. For a full opening, plan on the 160V around the perimeter plus a separate bottom seal or door shoe.
8) What is the NGP 160V holder made of, and will it hold up outdoors?
The holder is 6063 T5 temper aluminum in a mill finish, which is the standard extrusion alloy for frame-applied gasketing and resists corrosion on exterior openings. The insert is thermoplastic PVC in gray, made with a bio-based plasticizer. Mill aluminum is unfinished, so if you are matching anodized frames expect a visible difference.
9) Is the NGP 160V suitable for high-traffic commercial openings, or is it a residential product?
It is a commercial-duty product. The 160V is used on office building entrances, schools, healthcare facilities, retail and multi-tenant buildings where the frames are hollow metal or aluminum and the seal is screw-applied rather than adhesive-backed. Screw-applied gasketing is what holds up in traffic; peel-and-stick foam is the residential equivalent and will not last on a door in daily commercial use.
10) Can the NGP 160V be cut down to fit a shorter opening?
Yes. The aluminum holder cuts cleanly with a miter saw or hacksaw and the vinyl insert trims with a utility knife, so an 84 inch jamb piece can be shortened for a non-standard opening. Cut from the end that will sit at the sill and keep at least two slotted screw holes in the remaining piece so the strip still fastens and stays adjustable.
11) For a commercial opening, does the NGP 160V or the Cal-Royal PG-601 cover a 3-0 x 7-0 door?
The NGP 160V is supplied in 84 inch lengths in two sets sized for the opening, one for a 36 inch wide door and one for a 48 inch wide door, both with 84 inch jamb pieces, so a standard 3-0 x 7-0 door is covered by the 36 inch by 84 inch set. The Cal-Royal PG-601 is aluminum channel perimeter gasketing with a vinyl insert and would need its cut lengths confirmed against your opening. The 160V is specified for commercial use.
