Nibco 5104 Male Adapter S x MPT - Corzan® CPVC Schedule 80

Nibco 5104 Male Adapter S x MPT - Corzan® CPVC Schedule 80

(No reviews yet) Write a Review

Model: CB03600

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

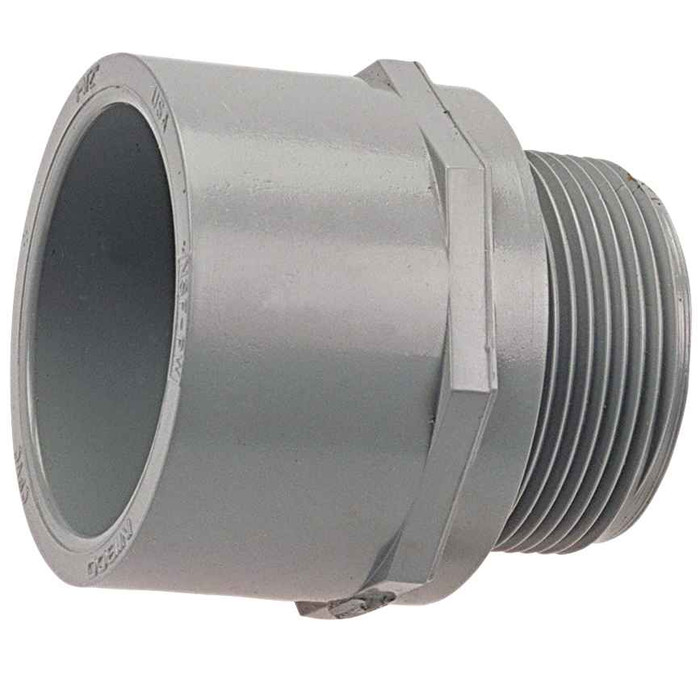

The light grey Corzan® CPVC male adapter features a female socket and male pipe thread connections. Chemtrol® CPVC fittings are lightweight, easy to install and maintenance-free. Chemtrol® fittings connect piping lengths together with solvent cementing, threading or flanging to create a highly reliable, leak-free system. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Corzan® CPVC Schedule 80 thermoplastics demonstrate excellent mechanical strength over broad temperature range, outstanding underground performance and superior hydraulics. Chemtrol Corzan® CPVC fittings are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Chemtrol® premium line of plastic fittings is backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control fittings are unsurpassed in quality, performance and longevity.

  • Maximum service temperature 210-DegreeF
  • Universal Part No. 1836
  • Female socket connections and male NPT thread connections
  • Do not use or test with compressed air or other gases
  • ASTM F439
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
CPVC - Chlorinated Polyvinyl Chloride
Classification:
CPVC Sch 80 Adapters
End Connection:
Socket Weld
Pipe Schedule:
80
Plastic End Connection Type:
S x M
Product Group:
Fitting
Product Type:
CPVC Sch 80 Adapters
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Type of Adapter:
Straight Size;Threaded
Product Subgroup:
Adapter
Department:
Plumbing
Product Color:
Light Grey
Country Of Origin:
United States

Nibco CB03600 – Frequently Asked Questions

1) How does the Nibco 5104 CPVC male adapter connect on each end?
One end is a female socket for solvent cement, the other is a male NPT thread. That makes it the transition piece when you need to take a solvent welded CPVC line into a threaded connection, like a valve, pump port, or metal nipple. The socket side gets cemented to Schedule 80 CPVC pipe; the threaded side screws in.
2) What is the maximum temperature the Nibco 5104 CPVC adapter can handle?
Maximum service temperature is 210 degrees F. That is the reason to use CPVC instead of PVC on hot water and process lines. Pressure rating drops as temperature rises, so size your system against the Corzan CPVC pressure and temperature data for the service you are running.
3) Is the Nibco 5104 adapter approved for potable water?
It is certified to NSF/ANSI Standard 14 and NSF/ANSI/CAN 61, and it is listed for lead-free applications. The fitting also meets ASTM F439 for Schedule 80 CPVC socket fittings. Common uses are commercial plumbing, industrial process, and irrigation.
4) Can I use a CPVC male adapter on a compressed air line?
No. Do not use or test this fitting with compressed air or other gases. It is a liquid service fitting only, and that includes pressure testing, which should be done hydrostatically.
5) What pipe sizes does the Nibco 5104 male adapter come in?
Nine sizes, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 and 4 inch. Order by size, for example CB03500 for 1/2 inch, CB03750 for 2 inch and CB03756 for 4 inch. Sizes are straight size, so the socket and thread match on both ends.
6) Do I need Teflon tape on the threaded end of a CPVC male adapter?
The male end is NPT thread, so it seals with a thread sealant or PTFE tape rated for CPVC. Nothing is included with the fitting, and the socket end needs CPVC primer and solvent cement rated for Schedule 80. Plan on both consumables to finish the joint.
7) Why is this CPVC fitting light grey instead of the usual tan?
Corzan CPVC Schedule 80 industrial fittings are light grey. Tan or cream is typically CTS CPVC used for residential hot and cold water. The grey identifies this as the Schedule 80 industrial line, matching grey Corzan Schedule 80 pipe on the jobsite.
8) Will CPVC hold up in a corrosive industrial line better than metal pipe?
Corzan CPVC will not rust, scale, pit or corrode, which is why it gets specified for chemical and process lines where steel or copper fails. It also runs maintenance-free and is light enough to handle overhead without rigging. Check the specific chemical against Chemtrol chemical resistance data for your service before committing.
