Nibco 5133E-3-3 EPDM Threaded ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$58.59

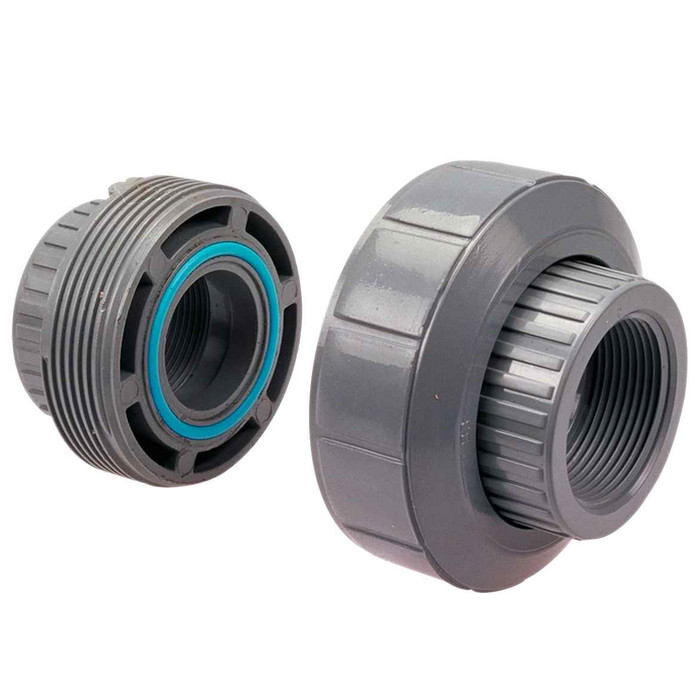

Nibco 5133E-3-3 EPDM Threaded Union FPT x FPT - Corzan® CPVC Schedule 80

Nibco 5133E-3-3 EPDM Threaded Union FPT x FPT - Corzan® CPVC Schedule 80

(No reviews yet) Write a Review

Model: CB18405

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The light grey Corzan® CPVC threaded union features female pipe thread connections. This fitting has an EPDM ethylene propylene seal which has good abrasion and tear resistance, plus excellent chemical resistance, but not recommended for applications involving petroleum oils or most strong acids. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Corzan® CPVC Schedule 80 thermoplastics demonstrate excellent mechanical strength over broad temperature range, outstanding underground performance and superior hydraulics. Chemtrol Corzan® CPVC fittings are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Chemtrol® premium line of plastic fittings is backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control fittings are unsurpassed in quality, performance and longevity.

  • Maximum service temperature 210-DegreeF
  • Universal Part No. 1898
  • Female NPT thread connections
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
CPVC - Chlorinated Polyvinyl Chloride
Classification:
CPVC Sch 80 Unions
End Connection:
Threaded
Pipe Schedule:
80
Plastic End Connection Type:
F x F
Product Group:
Fitting
Product Type:
CPVC Sch 80 Unions
Seat Seal Material:
EPDM Rubber
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Product Subgroup:
Union
Department:
Plumbing
Product Color:
Light Grey
Country of Origin:
United States

Nibco CB18405 – Frequently Asked Questions

1) Does this Nibco CPVC union thread onto pipe, or does it need to be solvent welded?
Both ends are female NPT thread, so it threads onto male-threaded pipe or nipples with no cement or cure time. It is an F x F configuration on Schedule 80 CPVC. If your run is plain-end pipe, you either need male adapters at the union or a socket (solvent weld) union instead.
2) What is the maximum temperature for a Corzan CPVC Schedule 80 threaded union?
Maximum service temperature is 210 degrees F. That is the headline reason to use Corzan CPVC over standard PVC on hot process or hot water lines. Keep in mind threaded plastic joints are normally de-rated versus solvent welded ones at elevated temperature and pressure.
3) Will the EPDM seal in this union hold up to my chemical?
The seal is EPDM, which gives good abrasion and tear resistance plus strong chemical resistance across many services, but it is not recommended for petroleum oils or most strong acids. If your line carries oil, fuel or concentrated acid, specify a union with a different elastomer (FKM/Viton is the usual alternative). Chemtrol chemical resistance data should be checked against your specific media.
4) Can I use a CPVC union on potable water in a commercial building?
Yes. The union is lead-free and listed to NSF/ANSI Standard 14 and NSF/ANSI/CAN 61, which are the potable water material and health-effects standards inspectors look for. It also carries ASTM F1970. Typical service is commercial plumbing, industrial process and irrigation.
5) Can I air test a CPVC piping system with this union installed?
No. Do not use or test this fitting with compressed air or any other gas. Plastic piping under gas pressure can fail explosively. Hydrostatic test with water instead.
6) Why put a union in a CPVC line instead of just a coupling?
A union gives you a break point you can take apart later. Threaded on both ends with an EPDM seal, it lets you pull a pump, valve or strainer for service without cutting pipe or heat-welding a repair coupling back in. On a solvent-welded system that difference is the whole reason it is there.
7) How do I tell CPVC fittings from PVC on site?
Color is the tell. Corzan CPVC Schedule 80 fittings like this union are light grey; Schedule 80 PVC is normally dark grey. CPVC will not rust, scale, pit or corrode, and it holds mechanical strength across a broader temperature range than PVC, which is why it gets specified on hotter lines.
8) Is this union the same as Nibco universal part 1898?
Yes, the Corzan CPVC threaded union FPT x FPT carries universal part number 1898. That is the number to quote if a spec or submittal references the Chemtrol universal listing rather than a size-specific part number like CB18455 for 1-1/4 inch.
