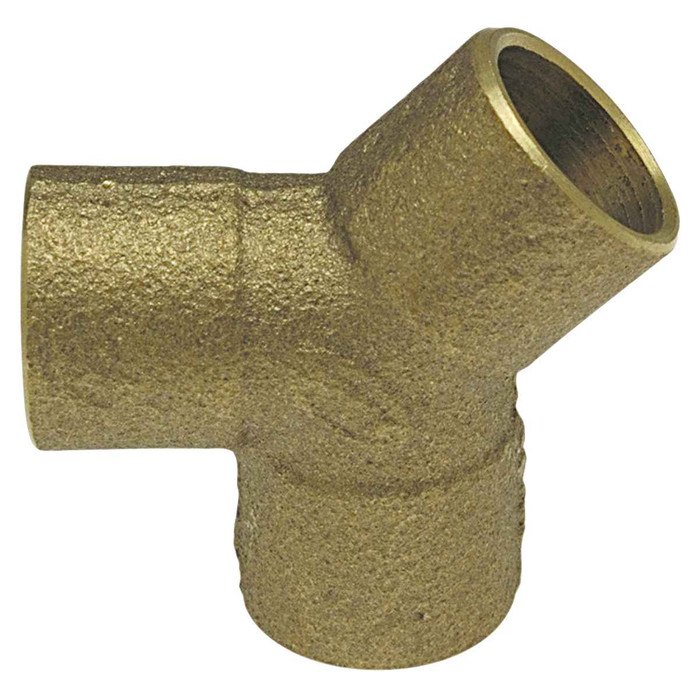

Nibco 748 90-Degree Wye C x C x C - Cast

Nibco 748 90-Degree Wye C x C x C - Cast

(No reviews yet) Write a Review

Model: B340400

In Stock (leaves warehouse same day if ordered before 3pm ET)

$217.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The wye features solder cups. The fitting allows for a connection to be made in continuous pipeline and branch out to a different direction. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • ASTM B584 Alloy C84400
  • Material and workmanship per ASME B16.18

Copper Fittings Installation Instructions

Manufacturer Resources

Product Specs

All Basic Material:
Bronze
Classification:
Solder Pressure Y's (Wyes)
End Connection:
Solder
Fitting Bend Angle:
90 Deg (1/4 Bend)
Metal End Connection Type:
C x C x C
Product Group:
Fitting
Product Type:
Solder Pressure Y's (Wyes)
System Use:
Commercial Plumbing, Fire Protection, Heating, HVAC, Industrial, Irrigation, Residential Plumbing
Type of Wye:
Single
Product Subgroup:
Y (Wye)
Department:
Plumbing

Nibco B340400 – Frequently Asked Questions

1) Can the Nibco 748 wye be used on potable water lines?
No. Use of the Nibco 748 wye in U.S. drinking water applications is prohibited after January 3, 2014. It is a cast bronze fitting made to ASTM B584 Alloy C84400, which puts it on the non-potable side of the line. Specify it for fire protection, heating, HVAC, industrial, or irrigation service instead, and pick a lead-free fitting for anything feeding a tap.
2) What kind of connections does the Nibco 748 wye have, and do I need to solder it?
All three openings are solder cups, C x C x C, so the fitting slips over copper tube and is soldered on each of the three joints. There are no threads on it, so if you need a threaded branch you'll want an adapter at that leg.
3) Can I use this wye on a fire protection or HVAC line instead of domestic water?
Yes, those are exactly its lanes. The 748 is listed for commercial plumbing, fire protection, heating, HVAC, industrial, irrigation, and residential plumbing service. The one hard restriction is U.S. drinking water, where it cannot be used after January 3, 2014.
4) What sizes does the Nibco 748 wye come in?
Two copper tube sizes: 1/2 inch (part B340300) and 1 inch (part B340400). Both are single wyes with all three openings the same size, so you cannot use one to reduce the branch.
5) Is the Nibco 748 wye brass or bronze, and will it hold up in hard water?
Cast bronze, ASTM B584 Alloy C84400, and rated dezincification resistant, which is the property that keeps zinc from leaching out of the alloy in aggressive water and leaving a porous, weak fitting. That is why it shows up in commercial and industrial piping rather than just residential work.
6) Does the Nibco 748 wye meet the spec for cast copper alloy solder fittings?
Material and workmanship are per ASME B16.18, the standard for cast copper alloy solder joint pressure fittings, and the fittings are made in an ISO 9001 certified facility. That is the callout most commercial submittals are looking for on a cast solder fitting.
7) Why use a wye instead of a tee on a branch line?
A tee turns the branch off square from a stub, while the 748 wye carries the run through continuously and sweeps the branch off to the side at 90 degrees. That geometry is easier on flow and is what engineers call out where turbulence or pressure drop at the takeoff matters. For a simple branch on a low-flow line, a standard solder tee does the job.
