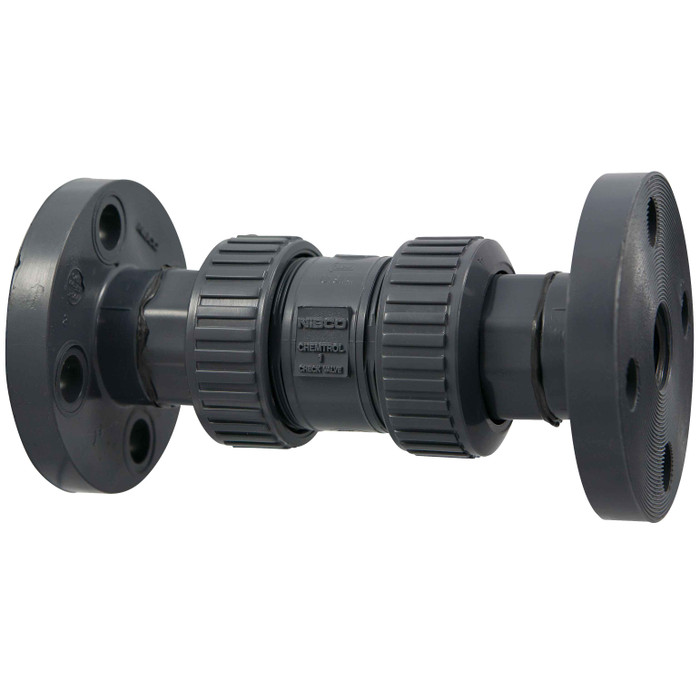

Nibco F45BC-E Ball Check Valve - Flanged, True Union, PVC Schedule 80, EPDM

Nibco F45BC-E Ball Check Valve - Flanged, True Union, PVC Schedule 80, EPDM

(No reviews yet) Write a Review

Model: MA819AA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$250.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. The valve can be easily joined with the flanged end connections. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol® PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball check valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

  • Valve pressure rating 150 psi at 73-DegreeF water non-shock
  • Maximum service temperature 140-DegreeF
  • True Union design
  • EPDM O-rings
  • Flanged end connections compatible with ANSI B16.5 Class 150
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

POE Warning - Plastics Incompatibility

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
PVC - Polyvinyl Chloride
Classification:
PVC Sch 80 Ball-Check Valves
End Connection:
Flanged
Pipe Schedule:
80
Plastic End Connection Type:
Flg
Product Group:
Valve
Seat Seal Material:
EPDM Rubber
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Type of Check Valve:
Ball-Check
Type of Valve:
Check Valve
Product Subgroup:
Unions
Product Type:
PVC Sch 80 Ball-Check Valves
Department:
Plumbing
Product Color:
Dark Grey

Nibco MA819AA – Frequently Asked Questions

1) Will this PVC check valve bolt up to my existing Class 150 steel flanges?
Yes. The flanged ends on the F45BC-E match ANSI B16.5 Class 150 bolt patterns, so it lands on standard Class 150 companion flanges. It is a flanged connection, not socket or threaded, so you bolt it in rather than solvent weld it. Use a full-face gasket and do not over-torque the bolts, since the body is PVC and not steel.
2) What is the pressure and temperature limit on the Nibco Chemtrol F45BC-E ball check valve?
150 psi at 73 degrees F on non-shock water service, with a maximum service temperature of 140 degrees F. Pressure capability drops as temperature climbs toward that ceiling, so size the line for the hottest condition it will see, not the ambient one. Water and compatible liquids only.
3) Can I use this PVC ball check valve on compressed air?
No. The instruction on Chemtrol PVC valves is explicit: do not use or test with compressed air or other gases. That includes pressure testing the line with air. Hydrostatic test with water only. If you need check protection on a compressed air line, this is the wrong material family entirely.
4) Is the Nibco F45BC-E approved for potable water?
It carries NSF/ANSI Standard 14 and NSF/ANSI/CAN 61, and it is listed as a lead-free application, which is what a potable water spec normally asks for. It also meets ASTM F1970. Typical uses are commercial plumbing, industrial and irrigation service.
5) Can I service this check valve without cutting the pipe out?
That is the point of the True Union design. The union nuts back off and the valve and its internal components lift straight out of the line for repair or ball replacement, leaving the flanged ends bolted in place. On a flanged installation you also have the option of breaking the bolted joint. Plan roughly a valve body's length of clearance so you can lift it clear.
6) Should I pick EPDM or Viton seals for a PVC ball check valve?
The F45BC-E is the EPDM version, with EPDM O-rings and EPDM seat sealing. EPDM handles water, dilute acids and bases, and most irrigation and potable water duty. It is the wrong choice for petroleum products and oils, where a fluoroelastomer seal is the usual call. Check the fluid against the Chemtrol chemical resistance guide before you commit, and note the separate POE plastics incompatibility warning Nibco publishes for these valves.
7) Does a ball check valve like this have to be mounted a certain way?
Yes, orientation matters on a ball check. The ball seats by gravity and by reverse flow, so these are normally installed in horizontal runs or in vertical runs with flow going up, following the flow arrow on the body. Mounted with flow running down, the ball will not seat reliably. If your layout is a downward vertical leg, use a spring-loaded check instead of this ball-check type.
8) Why choose PVC Schedule 80 over metal for a check valve in a corrosive line?
Schedule 80 PVC will not rust, scale, pit or corrode, and it has the highest long-term hydrostatic strength of the major thermoplastics used for piping. It is also light enough that a 3 or 4 inch flanged valve can be handled and hung without the support a metal body needs. The trade-off is the 140 degree F ceiling and the ban on gas service, which is where metal still wins.
9) What color is the Nibco Chemtrol PVC valve body, and does that tell me the material?
Dark grey, which is the standard color convention for Schedule 80 PVC and how it is told apart from white Schedule 40 PVC and from CPVC on a jobsite walk. If the rest of your run is grey Sch 80, this matches.
